| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | SFP-10G-T-100 | |
| 2 | Arista | SFP-10G-T -100 | |
| 3 | Brocade | 10G-SFPP-T100 | |
| 4 | Dell | GP-10GSFP-T100 | |
| 5 | Extreme Networks | 10340 | |
| 6 | H3C | SFP-XG-T100 | |
| 7 | HW | SFP-10G-T100 | |
| 8 | Intel | E10GSFPT100 | |
| 9 | Juniper | JNP-SFPP-10GE-T100 |

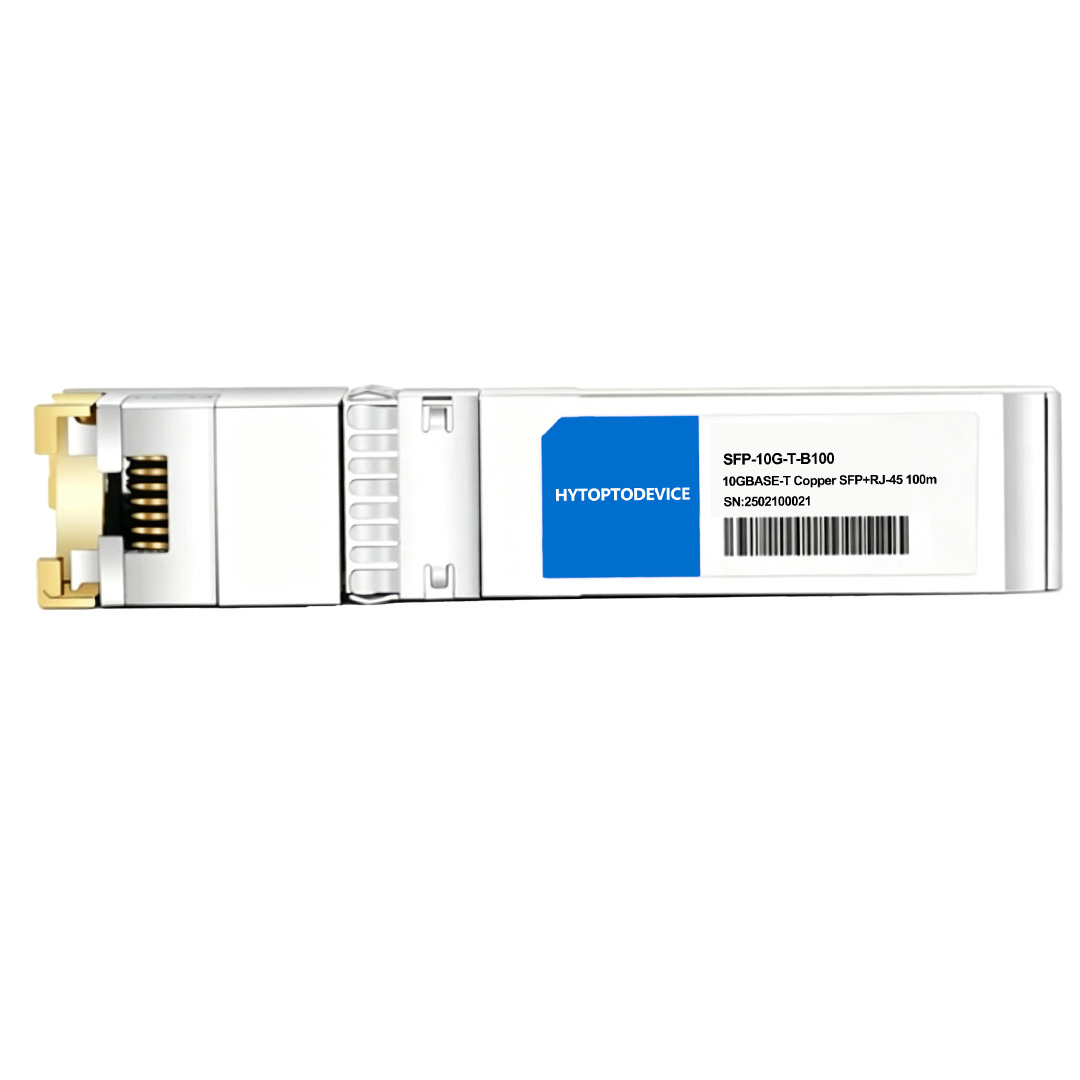

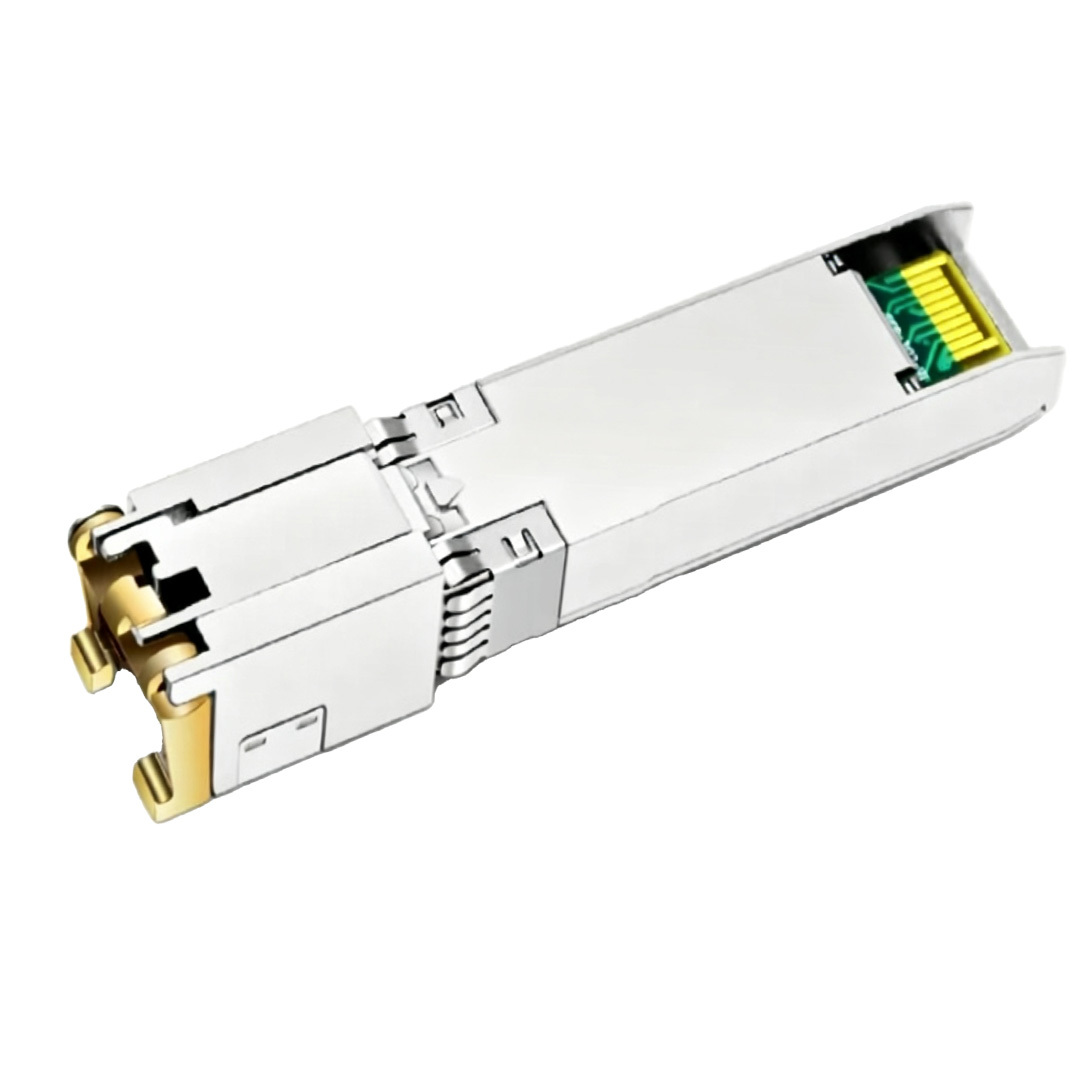

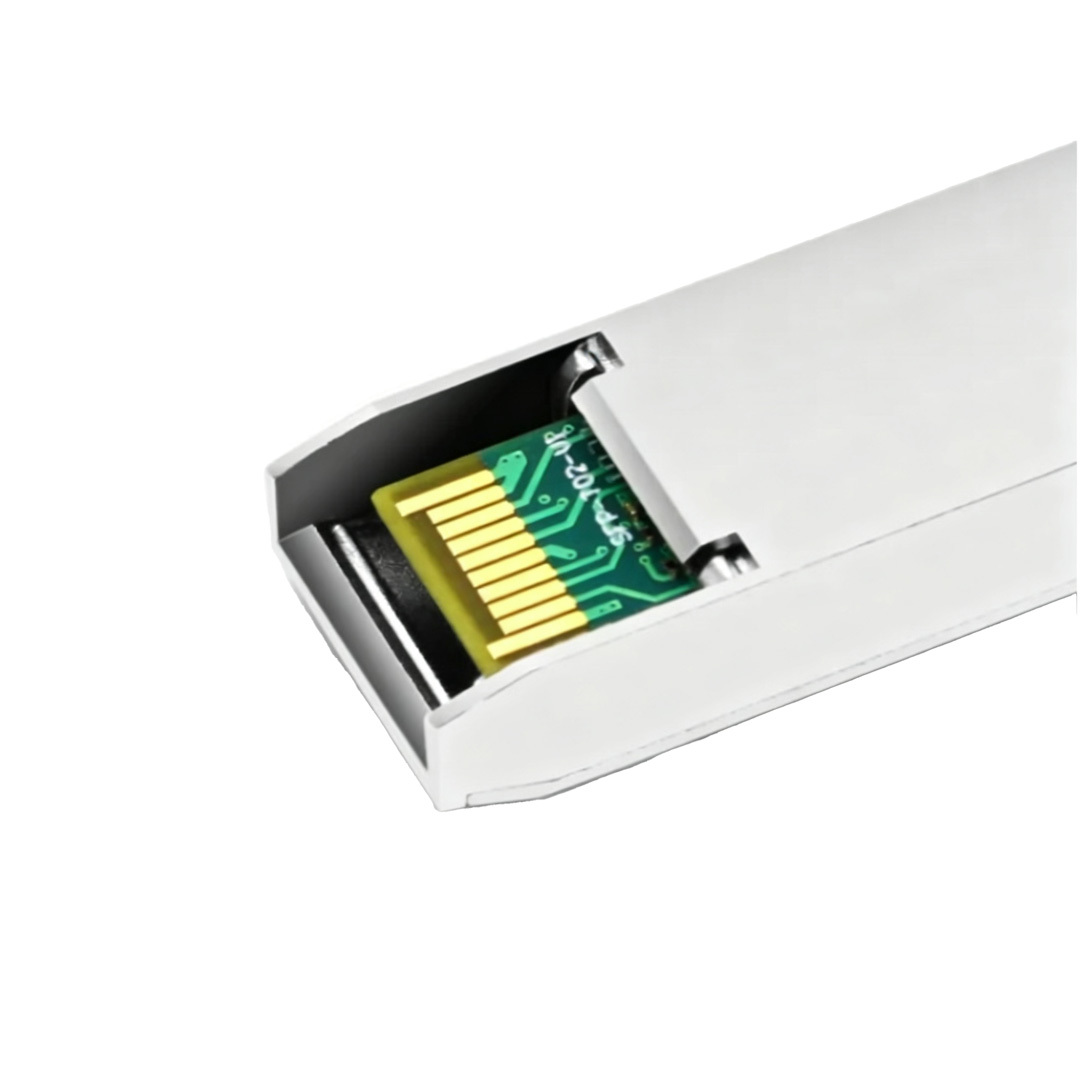

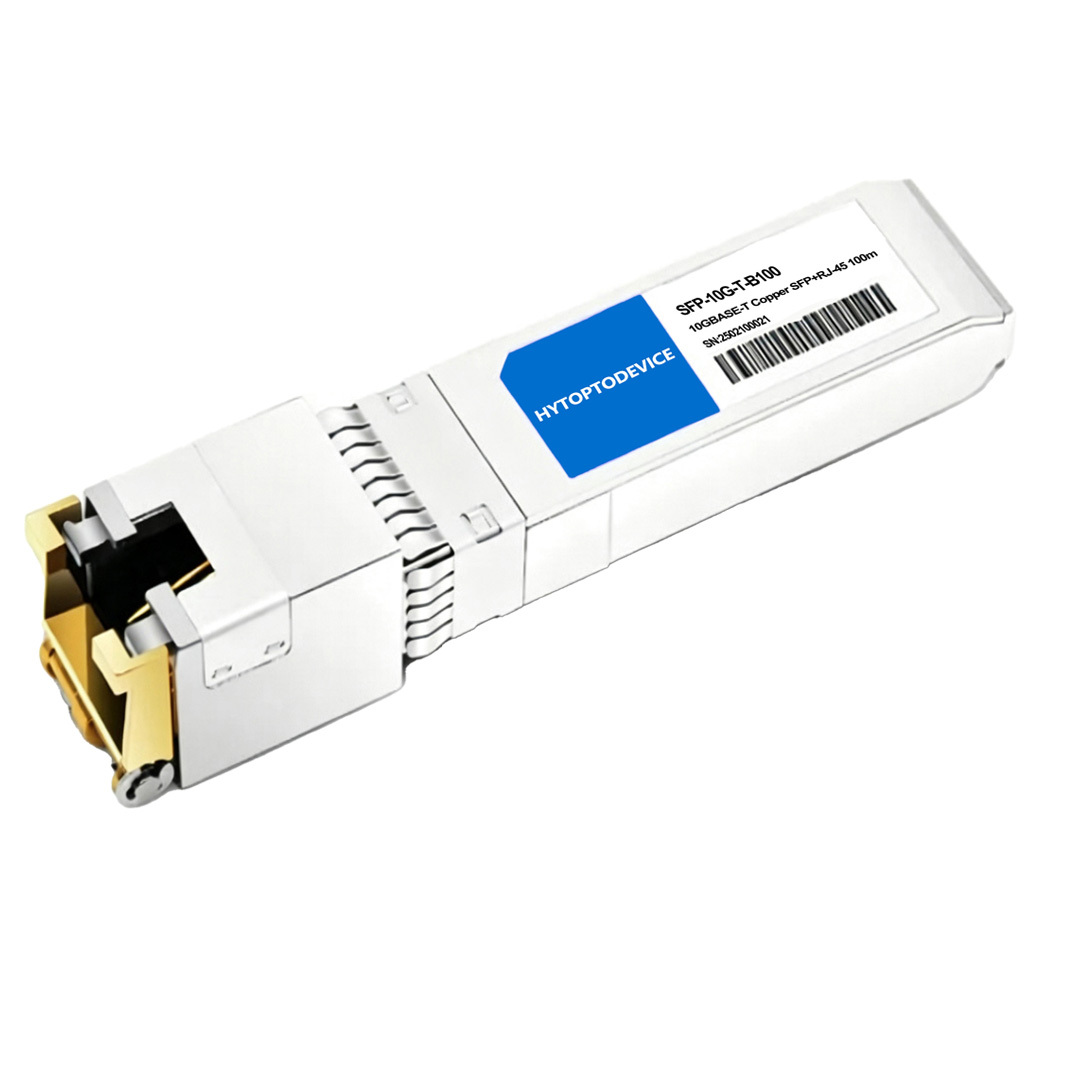

This Brocade compatible 10G copper SFP+ 100m distance transceiver is hardware-coded for "Plug-and-Play" operation on:
Brocade ICX Series: ICX 7150, ICX 7250, ICX 7450, ICX 7650, ICX 7750, ICX 7850.
Brocade VDX Series: VDX 6740, VDX 6940.
Brocade FCX / FastIron: With 10G SFP+ uplink ports.
Campus Core-to-Access Interconnect: Linking Brocade aggregation switches to access switches in remote buildings where 30m copper is insufficient.
WiFi-6/6E Wireless Backhaul: A dedicated NBASE-T SFP+ module for WiFi-6 backhaul supporting 2.5G/5G/10G for high-performance Ruckus/Brocade Access Points.
10G-SFPP-T100 distance extension solution: Extending 10G network 100 meters without fiber using existing Cat6A 10G copper infrastructure in large enterprise sites.
Key Product Parameters of 10G SFP+ RJ45 Module
| Brocade Compatible | 10G-SFPP-T100 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ | Data Rate | 10Gbps, 5Gbps, 2.5Gbps |
| Connector | RJ-45 | Cable Distance | 100m |
| Media | Copper | Cable Type | Cat6a/Cat7 |
| Max. Power Consumption | ≤2.5W | DDM Support | No |
| Protocols | IEEE 802.3-2012, IEEE 802.3az, SFP+ MSA, SFF-8432 | Operation Temperature | 0 to 70°C (32 to 158°F) |
A1:Standard 10G copper modules are limited by high power consumption and signal attenuation. The HYTOPTODEVICE Broadcom BCM84891 10G copper SFP+ 100m uses an improved Broadcom chip solution that lowers power to 2.0W–2.5W. This efficiency, combined with advanced signal processing, allows for a reliable 10G RJ45 100 meter reach on Cat6A 10G lines.
A2:No. This module is precision-tuned for high-speed Ethernet. It is a multi-rate 2.5G 5G 10G copper SFP+ 100m transceiver. To maintain maximum stability at the 100m limit, it does not support 100Mbps or 1Gbps legacy speeds.
A3:To achieve a stable 100 meter 10Gbps Ethernet over copper link, you must use Cat6A or Cat7 shielded cables. Standard Cat6 is not recommended for distances over 35-50m at 10G speeds and will lead to packet loss on Brocade ICX platforms.
A4:No. Our modules are pre-programmed with Brocade-compatible signatures. They are recognized by FastIron OS and NOS without needing the "unsupported-transceiver" command, ensuring a true "Plug-and-Play" experience.
A5:Running 10G over 100 meters of copper generates significant heat. Even with our improved thermal materials for 10G SFP+ RJ45, a skip-slot installation (leaving an empty port between modules) is essential for industrial grade 10G SFP+ RJ45 heat dissipation, keeping your Brocade switch stable under heavy load.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
ISO 9001:2015 certified manufacturing facility in Shenzhen
Average lead time of 3–5 business days with DHL/FedEx express options
Dedicated pre-sales engineering support for custom configurations
Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
We can provide inspection and shipping videos to make you feel as if you are right here with the product.
"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
Quality Certification & Compliance：
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
