Product Overview

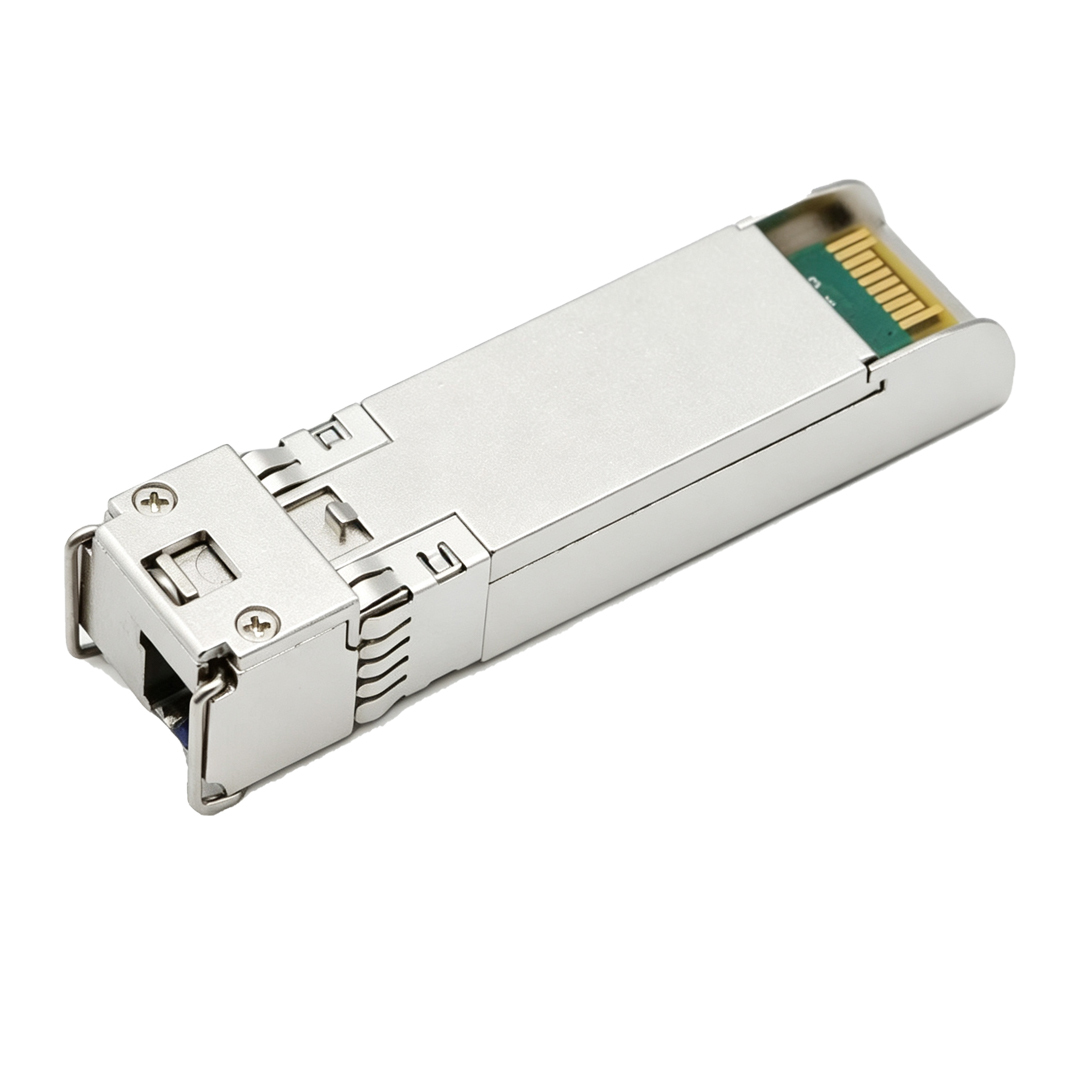

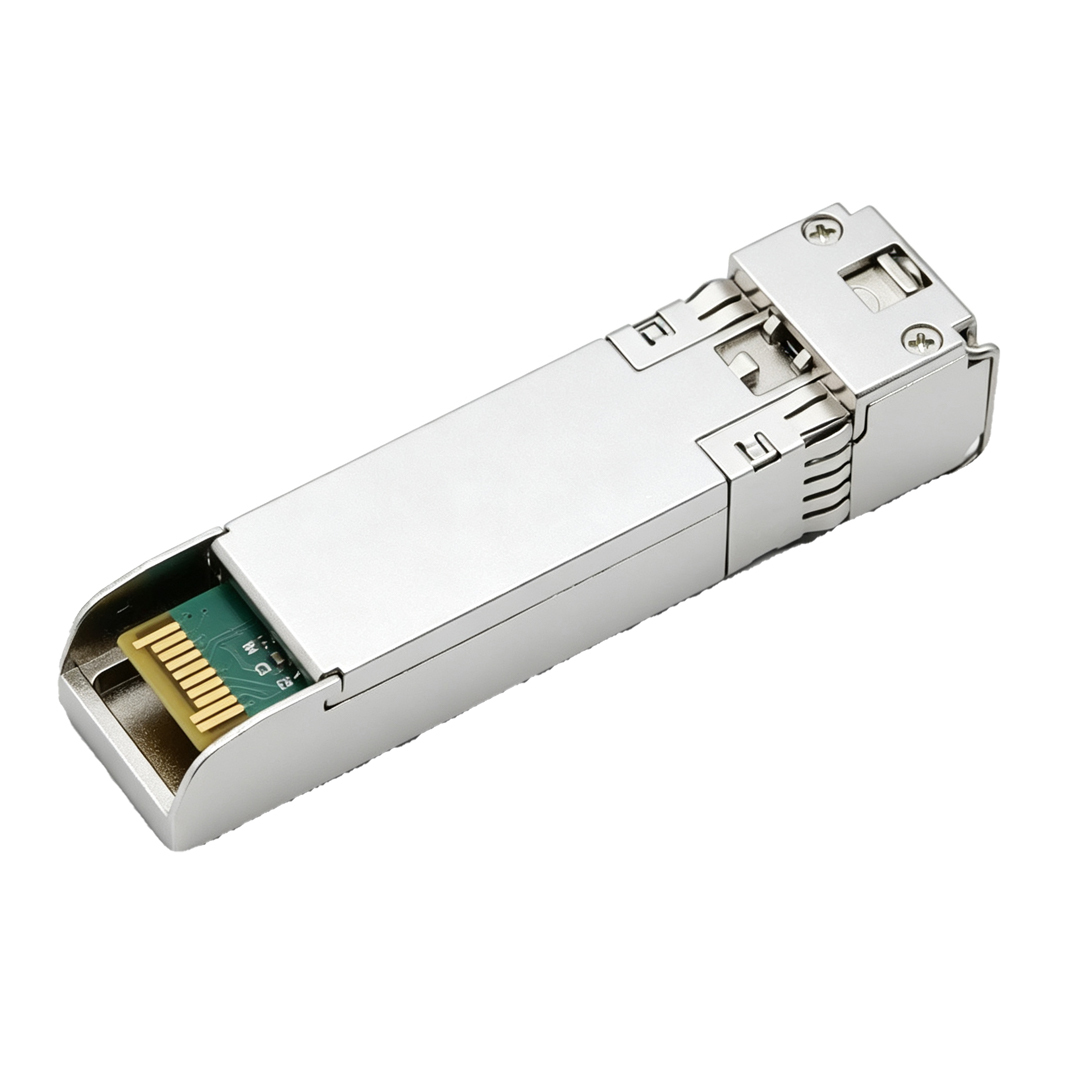

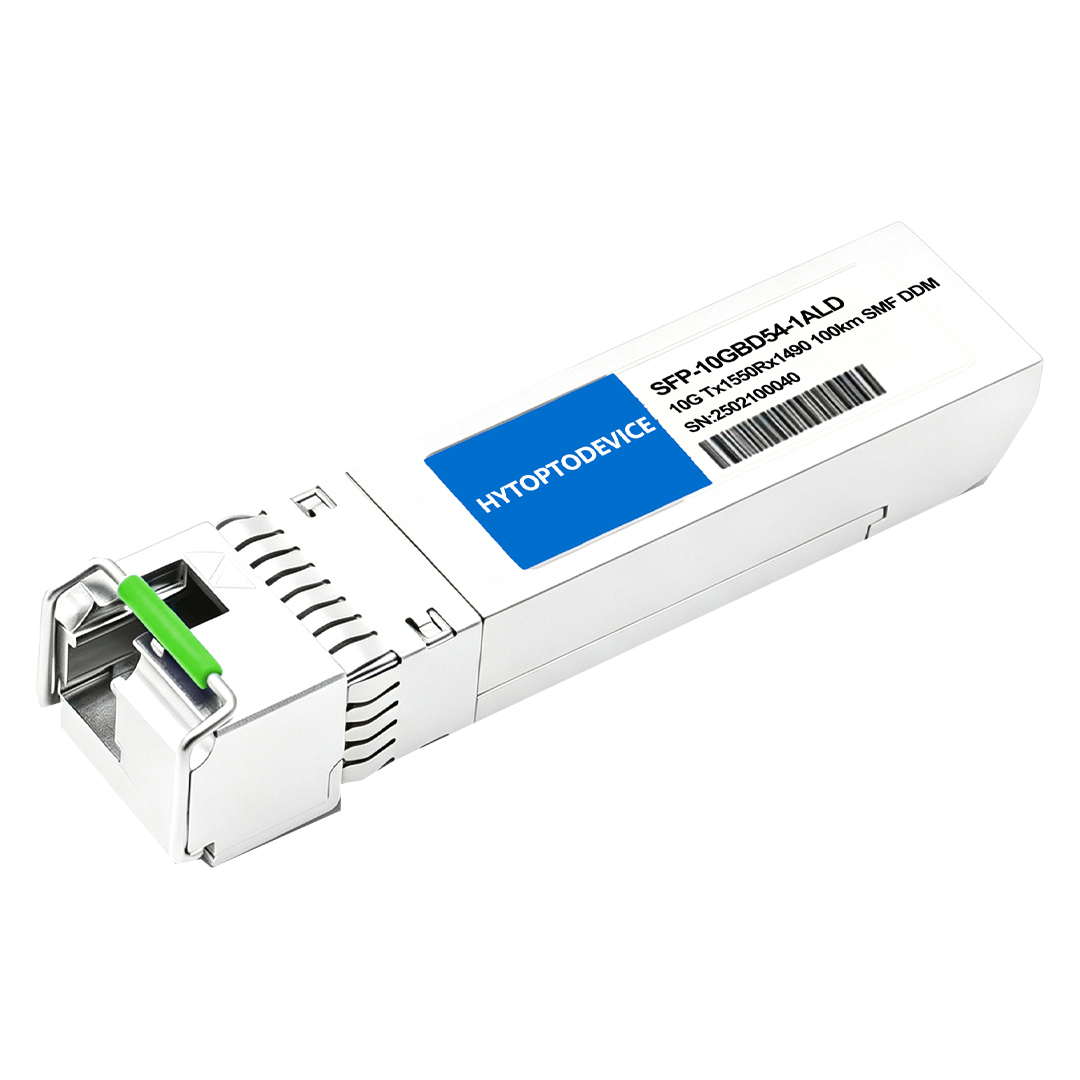

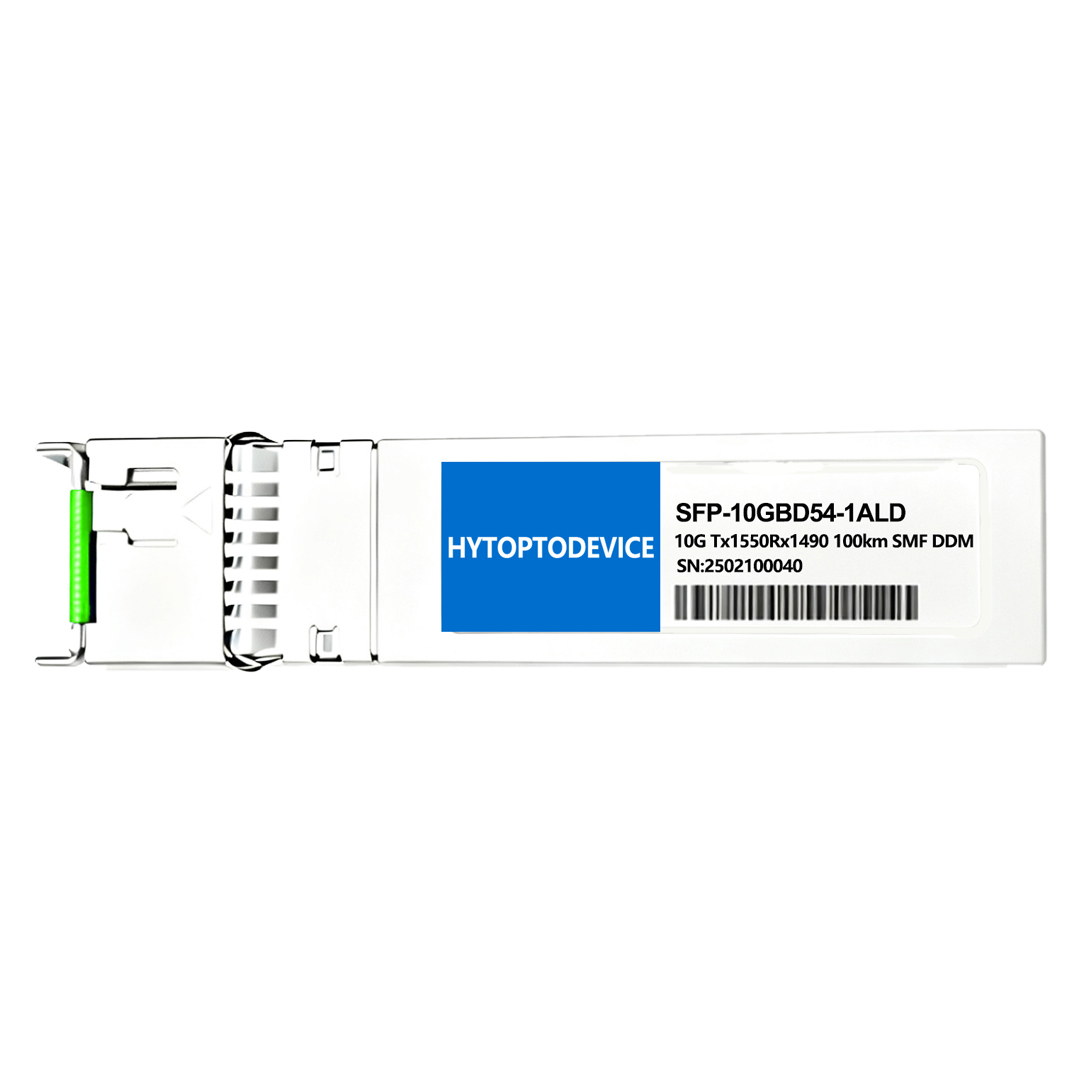

HYTOPTODEVICE, professional 10G SFP+ BIDI MODULE manufacturer and supplier, produces this Extreme 10GB-BX100-D compatible 10G SFP+ BiDi module as a reliable drop-in replacement. Built for 10GBASE-BX100-D and SFF-8472 MSA standards, this 10G SFP+ BIDI MODULE delivers stable 10.3125Gbps transmission over up to 100km OS2 single mode fiber with Tx1550nm / Rx1490nm wavelengths and simplex LC UPC connector.
We pre-program custom EEPROM profiles to resolve common transceiver compatibility failures on Extreme networks, eliminating unrecognized module alerts and long-distance link instability headaches. This single-strand BiDi design must pair with matching BX100-U transceiver on the remote fiber end. HYTOPTODEVICE supports flexible bulk orders and private label customization, serving distributors, wholesaler and system integrator worldwide with complete optical networking solutions.
Key Technical Specifications
| Extreme Compatible |
10GB-BX100-D |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.315Gbps |
| Wavelength |
TX1550nm/RX1490nm |
Max Distance |
100km |
| Connector |
Simplex LC |
Transmitter Type |
1550nm EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
1.0~5.0dBm |
Receiver Sensitivity |
< -24dBm |
| Max. Power Consumption |
≤1.8W |
Receiver Overload |
-7dBm |
| Protocols |
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Operational Best Practices
• BiDi Pairing Rule: SFP‑10G‑BXD (Tx1550/Rx1490) must pair with
SFP‑10G‑BXU (Tx1490/Rx1550) at remote end. Two BXD modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Optical Attenuator Required for Short Links: For testing or short-distance connections (<10km), connect a 12dB–15dB optical attenuator to the RX port to prevent damaging the receiver.(10KM
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1. Validated Extreme Hardware & Firmware
This 10G SFP+ BIDI MODULE uses customized EEPROM coding to tackle transceiver compatibility issues and suppress unknown transceiver warning logs on Extreme XOS. Every module undergoes full validation and burn-in testing before factory shipment:
- Extreme SLX Series Switches: SLX 9140, SLX 9240, SLX 9540
- Extreme Summit Series: Summit X670, Summit X770, Summit X460-G2
- Extreme VSP Virtual Service Platform: VSP8400, VSP8600
- Any Extreme hardware with standard 10G SFP+ ports supporting 10GBASE-BX100-D
2. Multi‑Brand Cross Interoperability
Built on MSA open standards, this 10G SFP+ BiDi optical transceiver works with Cisco, Arista, Huawei, H3C, Juniper, Dell, Palo Alto, Brocade hardware. Well‑suited for mixed‑vendor long‑haul metro and wide‑area network expansion projects for enterprise, carrier clients, wholesalers, distributors and system integrators.
3. Free Value-Added Services
- Custom EEPROM programming for multi-platform compatibility
- Sample testing available before bulk orders for project validation
- Private label customization and professional deployment guides
- Rigorous batch quality consistency control
- Custom EEPROM configuration for special and legacy network setups
- Free EEPROM recoding with 24/7 technical support
Primary Application Scenarios
- 100km single-fiber metro backbone deployments, HYTOPTODEVICE 10G SFP+ BIDI MODULE supplier provides reliable modules for system integrator
- Long-distance inter-site fiber links, solving the pain point of unstable long haul transmission for enterprise and telecom networks
- Network upgrade projects to maximize fiber assets by reusing individual OS2 single fiber strands
- Cost-effective replacement solution for distributors and wholesaler sourcing Extreme compatible long-reach BiDi optics
- Bulk sourcing of 10G SFP+ BIDI MODULE for global distributors, network buyers and telecom system integrator
Connectivity Solutions(Applications)
1.Switch-to-Switch Connectivity
2.Core to Access Connectivity(With Structured Cabling)
The Core Features
1.Single‑Fiber Transmission, Maximize Fiber Utilization
Unlike conventional dual‑fiber SFP+ transceivers, HYTOPTODEVICE Extreme‑compatible 10G SFP+ BiDi module adopts WDM wavelength‑division multiplexing to realize bidirectional 10G transmission over only one OS2 single‑mode fiber core.
2.2x Capacity, Half the Cabling
A single fiber strand carries two wavelengths, enabling full-duplex 10G over one link. Double capacity per port, cut fiber cabling costs in half — no extra cables, no extra ports.
3.10G at 1.8W — Lower Energy, Lower Heat
Delivering stable 10G links at a low 1.8W power draw, this SFP+ 10G bidi transceiver minimizes heat dissipation per port, easing cooling load in dense deployments and cutting total cost of ownership.
4. Verified, Not Just Claimed
Compatibility isn't a promise — it's proven. Every unit passes rigorous testing on original-brand switches, guaranteeing drop-in interoperability across Cisco, Juniper, Huawei and other major platforms without reconfiguration headaches. Real products, real switches, real results—Specific Compatibility Video available upon request.
5.100% Tested for Rock-Solid Reliability
Signal integrity, distance runs, temperature cycling — every 10G BiDi 100km SFP+ transceiver is fully validated in our Test Center before shipping, ensuring stable, packet-loss-free links under any load.
FAQ
Q1: If I plug this 10G BiDi optic into a gigabit SFP port, will it automatically downgrade to 1G operation?
A: NO, this 10G SFP+ BiDi transceiver cannot auto-negotiate down to 1G speed. It is designed to lock at 10G only and will not establish link on 1G ports. HYTOPTODEVICE supplies this fixed-rate 10G optic as part of our 10G SFP+ BIDI MODULE solution for buyers and system integrator.
Q2: Will installing aftermarket SFP+ optics cause my Extreme switch hardware warranty to become invalid?
A: NO, using HYTOPTODEVICE compatible 10G SFP+ BIDI MODULE generally will not void your network hardware warranty. Most vendors restrict warranty only if the optic directly damages the equipment. We manufacture fully tested optics for distributors and wholesaler, with private label available.
Q3: Do I need to perform firmware updates on Extreme switches to get this BiDi module recognized properly?
A: It depends. Most modern Extreme XOS switches recognize our module without firmware changes, but older firmware with locked transceiver whitelists may require an update. HYTOPTODEVICE provides pre-programmed EEPROM to resolve transceiver compatibility issues for system integrator.
Q4: Can I access real-time DOM/DDM optical diagnostic data from this BiDi module on my Extreme host equipment?
A: YES, DDM/DOM fully functions on compatible Extreme hosts. You can remotely monitor temperature, voltage, transmit and receive optical power. HYTOPTODEVICE 10G SFP+ BIDI MODULE supports real-time optical diagnostics for network operators and buyers.
Q5: Can this BiDi transceiver send and receive data over just a single simplex fiber strand?
A: YES, single strand simplex fiber is exactly how this BiDi module operates. It transmits and receives over one OS2 fiber strand when paired with its matching opposite-direction BiDi partner. HYTOPTODEVICE manufactures these single-fiber 10G SFP+ BIDI MODULE for wholesale buyers.
Q6: Is this 10G BiDi optical module suitable to deploy within passive CWDM or DWDM multiplexer systems?
A: NO, this BiDi transceiver is not designed for CWDM/DWDM passive mux systems. Its fixed 1490/1550nm wavelengths fall outside standard ITU-T wavelength grids; it is only for direct point-to-point single-fiber BiDi links.
Q7: Why select 1490/1550nm wavelength pair instead of 1270/1330nm for 100km long haul fiber transmission?
A: Lower fiber attenuation at 1490nm (~0.25 dB/km) and 1550nm (~0.20 dB/km) enables longer 100km transmission versus 1270/1330nm (~0.35 dB/km). HYTOPTODEVICE selects these wavelengths to deliver reliable long-reach 10G SFP+ BIDI MODULE solutions for distributors.
Q8: What optical attenuator rating should I pick for short-distance laboratory bench testing?
A: A 12–15dB simplex LC optical attenuator is recommended for short bench tests under 10km. It reduces excess transmit power to protect the APD receiver from overload. HYTOPTODEVICE can supply matching attenuators alongside bulk 10G SFP+ BIDI MODULE orders for wholesaler.
Q9: How does chromatic dispersion affect 10G signal quality across a 100km fiber span and cause link instability?
A: Chromatic dispersion broadens optical pulses and increases bit errors over 100km. Our module’s EML laser is selected to keep dispersion effects within acceptable limits for 10G operation on standard OS2 fiber, part of HYTOPTODEVICE’s long-reach 10G SFP+ BIDI MODULE solution.
Q10: What type of photodetector chip is built inside this transceiver module, PIN or APD?
A: This module uses an APD receiver. APD provides higher sensitivity to meet the 100km link budget requirement, critical for long single-fiber BiDi links. HYTOPTODEVICE manufactures our 10G SFP+ BIDI MODULE with high-performance APD receivers for system integrator.
Q11: What quality checks are performed for these BiDi modules before factory shipment?
A: Every unit undergoes full optical power, sensitivity, DDM and burn-in testing before leaving our factory. HYTOPTODEVICE provides full test records for bulk orders, private label 10G SFP+ BIDI MODULE for global buyers and distributors.
Q12: What temperature grades are available for this transceiver, commercial versus industrial options?
A: The standard commercial version operates from 0°C to 70°C. Industrial grade (-40°C ~ +85°C) is available as a custom option. HYTOPTODEVICE supplies both variants of our 10G SFP+ BIDI MODULE for specialized network deployments.
Q13: What typical bit error rate (BER) performance can end users expect from this optical transceiver?
A: Typical BER is <1×10⁻¹² within rated optical budget. This low error rate ensures stable 10G Ethernet traffic across the full 100km link. HYTOPTODEVICE verifies BER performance during factory testing for all wholesale 10G SFP+ BIDI MODULE shipments.
Q14: Does this 10G BiDi transceiver integrate built-in FEC forward error correction function?
A: NO, this 10GBASE-BX BiDi transceiver does not include built-in FEC. Error correction must be handled by the host Extreme switch or router if required. HYTOPTODEVICE provides clear specs so system integrator can design their network solution correctly.
Q15: Does this optical transceiver meet the specifications defined under IEEE 802.3ae 10GBASE-ZR standard?
A: NO, this BiDi module does not comply with 10GBASE-ZR standards. It is compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 and SFP+ MSA specifications. HYTOPTODEVICE manufactures this 10G SFP+ BIDI MODULE following these industry standards for network buyers and system integrator.
