| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-4SFP10G-CU1M | |
| 2 | Arista Networks | CAB-Q-S-1M | |
| 3 | Juniper | QFX-QSFP-DACBO-1M | |
| 4 | Brocade | 40G-QSFP-4SFP-C-0101 | |
| 5 | Dell | 331-8149 | |
| 6 | Intel | X4DACBL1 | |
| 7 | NVIDIA/Mellanox | MC2609130-001 | |
| 8 | IBM | BN-QS-SP-CBL-1M |
| Intel Compatible |

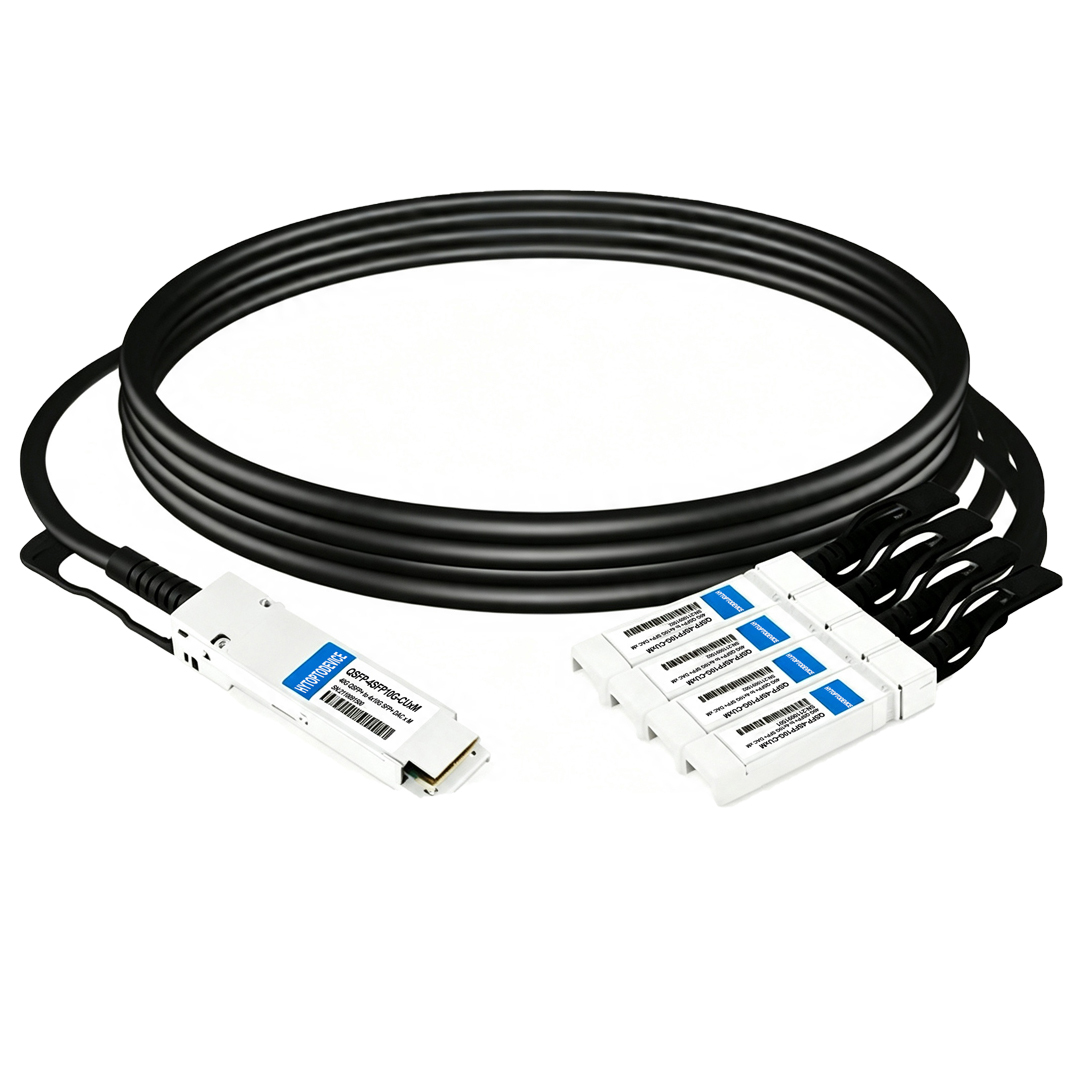

X4DACBL1
|
Vendor Name | HYTOPTODEVICE |
| Connector | QSFP+ to 4 x SFP+ | Max Data Rate | 40Gbps |
| Cable Length | 1m (3ft) | Wire AWG | AWG 30 |
| Cable Type | Passive Twinax | Power Consumption | ≤0.5W |
| Media | Copper | Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | PVC(OFNR) | Protocols | SFF-8436, SFF-8431 and QSFP+ MSA |
| Minimum Bend Radius | 21mm | Application | 40G InfiniBand 8x DDR, 4x QDR, 10/40 Gigabit Ethernet, Fibre Channel |
Usage Guidelines & Best Practices
Mandatory Port Breakout Configuration: Ensure the host QSFP+ port supports channelization. Enable breakout mode (4x10G) via the switch CLI before connecting the cable.
Cabling Requirements: Do not exceed the minimum 21mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.
Port Installation Standard: Do not mix this breakout DAC with straight QSFP+ to QSFP+ DAC configuration.
Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.
Operating Environment: 0‑70℃, indoor cabinet deployment only.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
Built on universal MSA open standards, this 40G QSFP+ DAC breakout cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.
Q1: Which Intel NIC firmware and driver versions support this passive direct attach copper breakout cable? A: It works stably with XL710 / X710 latest ixgbe and i40e driver releases. HYTOPTODEVICE validates each batch on Intel server adapters to cut deployment risk for Intel server partners placing stock orders.
Q2: Can this passive direct attach copper breakout cable work on Intel X520, X540 older generation SFP+ only NICs? A: X520/X540 lack native QSFP+ physical ports and breakout support. Confirm NIC port form factor before purchase; this cable is built for Intel QSFP+ quad-port adapters.
Q3: Will Linux ixgbe driver automatically recognize this pre-programmed passive direct attach copper breakout cable after server boot? A: Yes, valid EEPROM signature allows automatic identification by Linux ixgbe driver. This simplifies mass server provisioning for system integrators building HPC and virtualization clusters.
Q4: Can I order this passive direct attach copper breakout cable with custom EEPROM for mixed Intel NIC and SONiC white-box fabric setups? A: Yes, HYTOPTODEVICE provides cross-platform custom EEPROM programming for bulk orders. It helps integrators standardize cabling specs across hybrid server and open networking environments.
Q5: Will Linux or Windows server OS log repeated transceiver warnings if this passive direct attach copper breakout cable is mixed with Intel original SFP+ optics? A: No, DAC and optical modules run independently per logical port. Once breakout mapping is correctly configured, mixed media will not trigger persistent system alerts.
Q6: Is this passive direct attach copper breakout cable suitable for RoCE and iWARP low latency HPC interconnect? A: Yes, passive twinax brings near-zero added latency for RDMA traffic. Many Intel server resellers buy this breakout cable to expand affordable 10G RDMA access density for compute nodes.
Q7: Will breakout sub-interface mapping stay intact after Intel NIC driver upgrade on ESXi hosts? A: Breakout interface settings save to hypervisor network config. Major driver upgrades still require spot-checking port profiles for stocked passive direct attach copper breakout cable units.
Q8: What is the typical shipping lead time for bulk orders of this passive direct attach copper breakout cable for overseas Intel server distributors? A: In-stock orders usually ship within 3–5 working days. HYTOPTODEVICE keeps ready inventory and supports expedited delivery for urgent HPC and virtualization project procurement.
Q9: Can this passive direct attach copper breakout cable carry lossless PFC traffic for server-attached iSCSI storage arrays? A: Yes, passive copper does not interfere with priority flow control frames. It reliably transports lossless storage traffic, a good fit for buyers building Intel server storage fabrics.
Q10: What is the first troubleshooting step when one SFP+ breakout lane stays down on an XL710 adapter? A: First verify hypervisor/driver breakout profile and re-seat the SFP+ connector. Inactive lanes mostly come from missing breakout config or loose contact on newly purchased cables.
Q11: What warehouse humidity range should wholesalers follow when warehousing this passive direct attach copper breakout cable? A: Store inventory under 10–60% RH dry indoor conditions. High-purity copper from HYTOPTODEVICE resists oxidation and maintains stable electrical performance for multi-year resale stock.
Q12: Do I need extra paid NIC firmware license to activate 40G to 4×10G breakout on Intel XL710-QDA2? A: Breakout is a base hardware feature for XL710 QSFP+ ports and does not require premium licensing. Buyers should review the official Intel NIC datasheet before ordering.
Q13: Can the four SFP+ tails of this passive direct attach copper breakout cable connect directly to top-of-rack 10G SFP+ switch ports? A: Yes, the SFP+ branches interoperate smoothly with standard 10G switch ports. It is a cost-effective cabling choice connecting Intel QSFP+ NICs to leaf switches.
Q14: What compliance and test documents can HYTOPTODEVICE supply for enterprise tender projects requiring this passive direct attach copper breakout cable? A: We can provide batch TDR test reports, RoHS and REACH certificates. These documents help wholesalers pass audit checks during Intel HPC and server virtualization bidding.
Q15: Can the EEPROM signature of this passive direct attach copper breakout cable be rewritten after migrating away from Intel XL710/X710 NICs? A: Yes, HYTOPTODEVICE offers EEPROM reprogramming service. It allows resellers to reuse stocked breakout cables on other brand switches and improve inventory turnover.
