Product Detail：

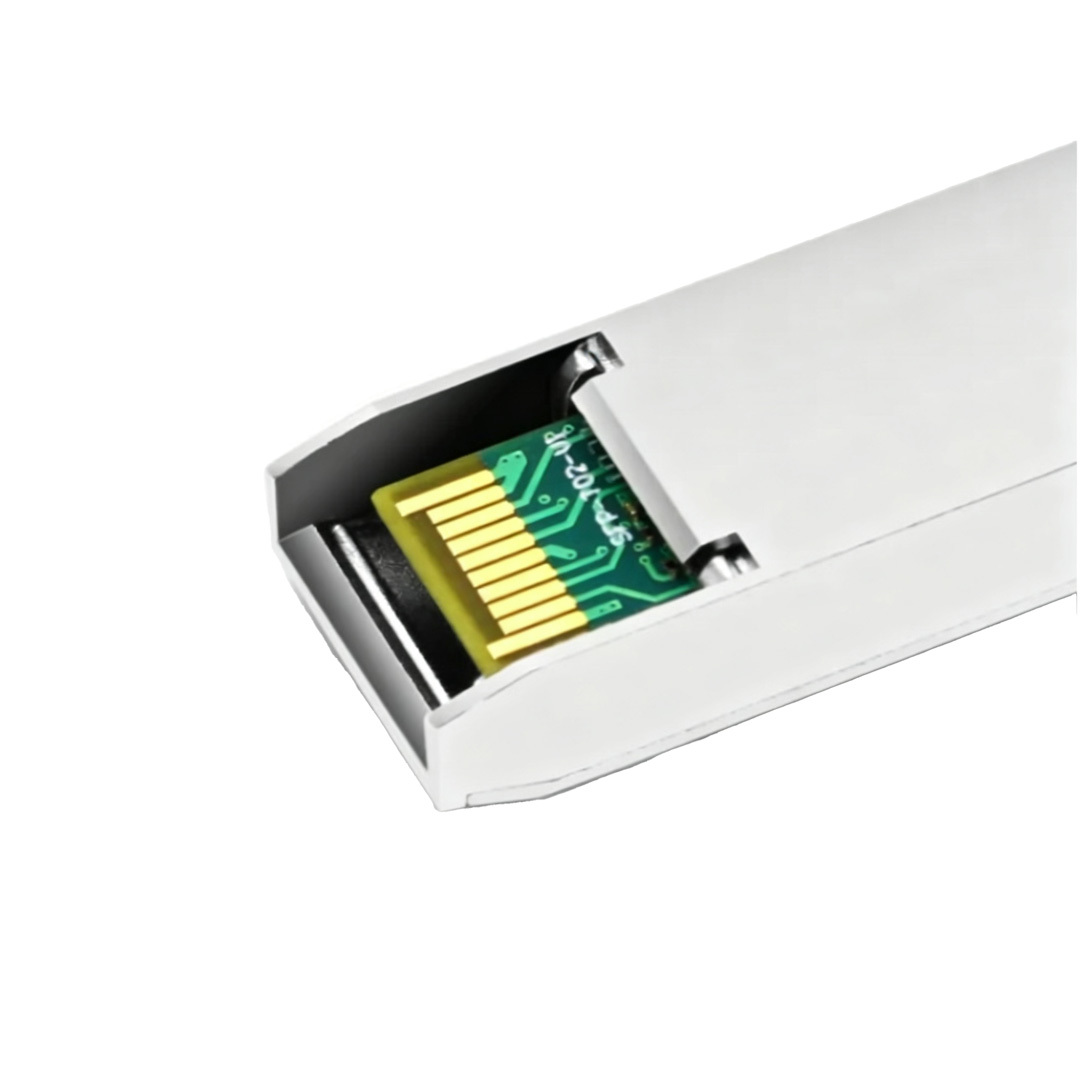

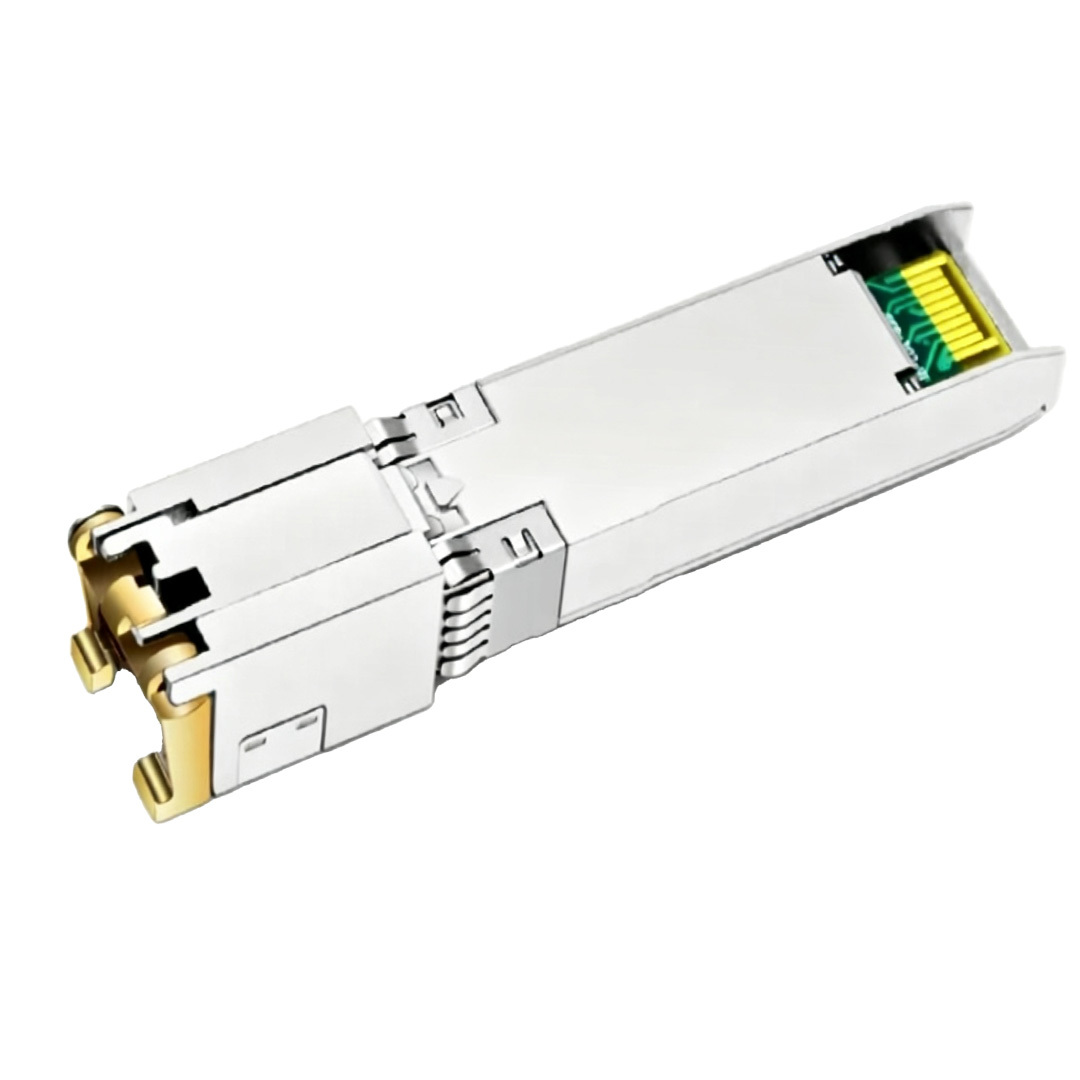

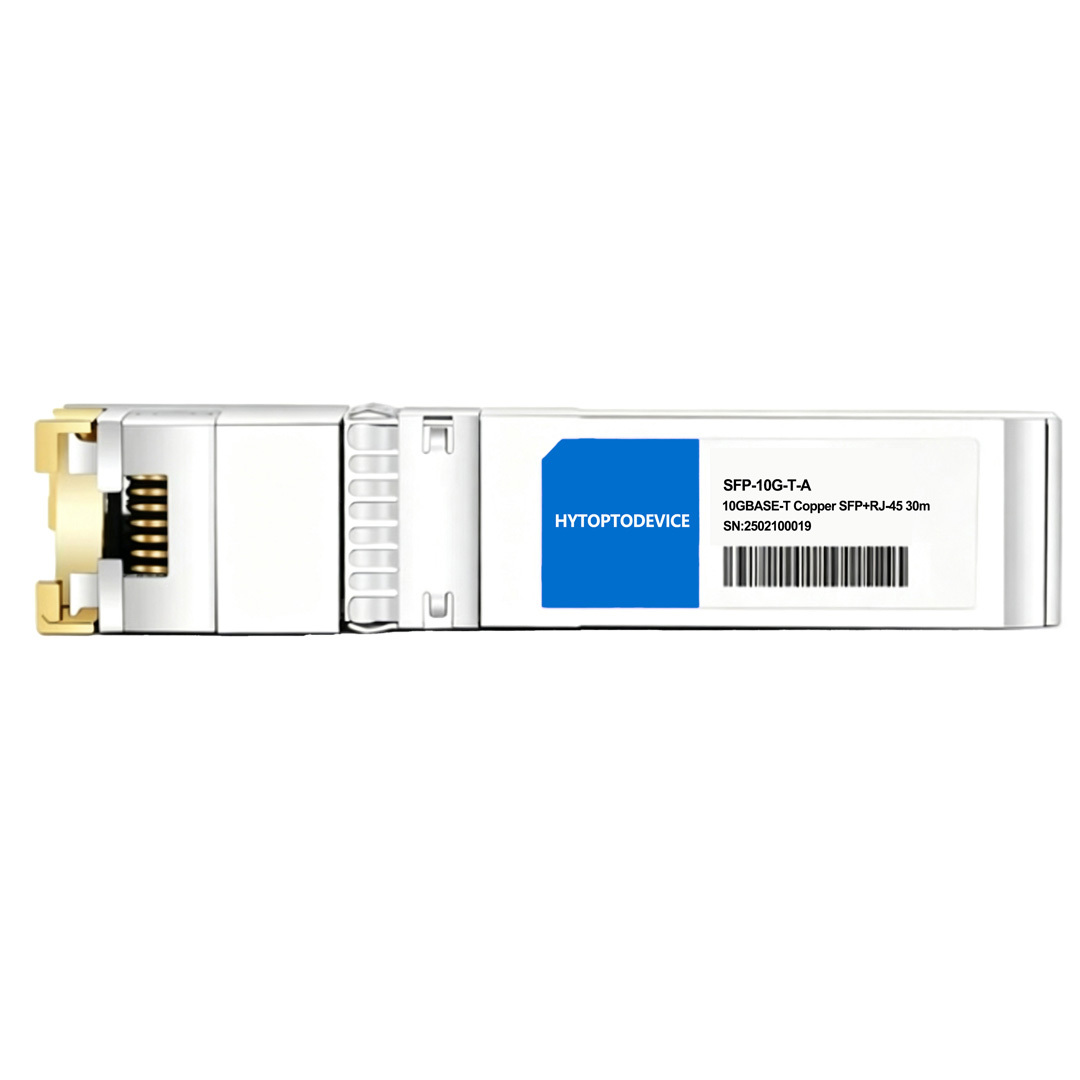

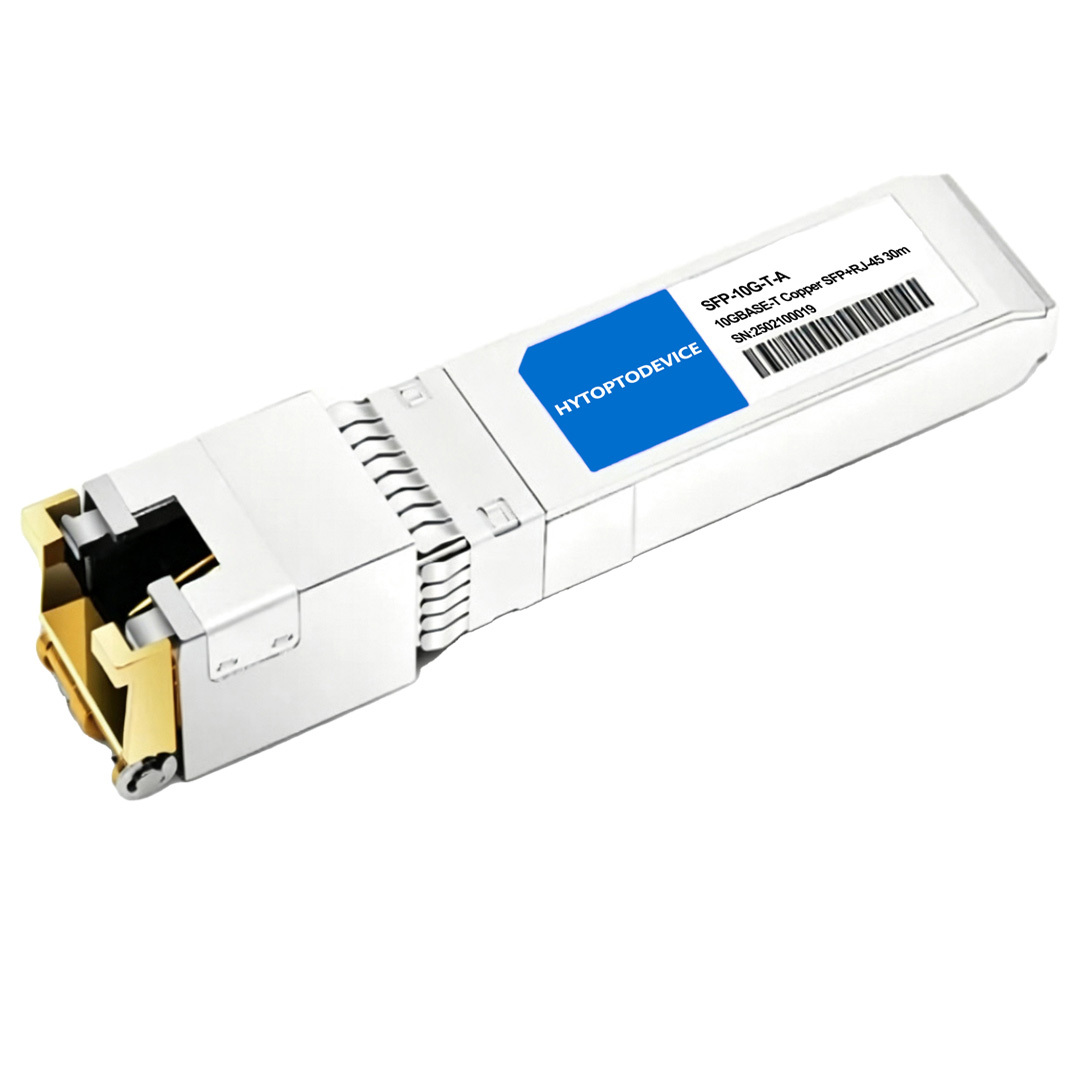

HYTOPTODEVICE 10GBASET-T Module | Brocade Compatible 10G SFP+ Transceiver(Copper, 30m, RJ-45)
The 10G-SFPP-T is a high-performance, Brocade compatible 10GBASE-T SFP+ copper transceiver. Featuring a hot-pluggable SFP+ form factor and an RJ-45 interface, it supports 10Gbps data transmission up to 30 meters over Cat6A/Cat7 cabling to connect endpoints with embedded 10GBASE-T ports. With advanced 1G/2.5G/5G/10G auto-negotiation, low power consumption, and low latency, this SFP+ RJ45 10GASET-T module provides a highly flexible and cost-effective solution for intra-rack and inter-rack connections. Fully compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431, and SFP+ MSA, it is ideal for data center top-of-rack (ToR) switches, enterprise core campus networks, and high-performance storage environments looking to upgrade to 10GbE using existing copper infrastructure.
Full Compatibility List and Supported Devices of 10GBASE-T SFP+ Transceiver
The HYTOPTODEVICE 10G-SFPP-T is 100% verified for "Plug-and-Play" compatibility with:
-
Brocade ICX Series: ICX 6610, ICX 7150, ICX 7250, ICX 7450, and ICX 7750.
-
Brocade VDX Series: VDX 6740, VDX 6740T, and VDX 6940.
-
Brocade FCX & TurboIron Series: Legacy 10G SFP+ enabled ports.
-
Extreme Networks: Many Extreme-branded Brocade heritage switches using the same firmware logic.
Primary Application Scenarios of 10GBASE-T SFP+ Module
- Campus Stack Uplinks: Linking high-density ICX access stacks to the core using structured cabling 10G migration paths.
- Storage Area Networks (SAN): Connecting iSCSI storage arrays to Brocade VDX switches via standard RJ45 patch cords.
- Data Center Edge: Providing high-speed 10Gbps copper handoffs for server NICs in diverse rack environments.
Key Product Parameters of 10G SFP+ RJ45 Module
| Brocade Compatible |
10G-SFPP-T |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Data Rate |
10Gbps, 5Gbps, 2.5Gbps, 1000Mbps |
| Connector |
RJ-45 |
Cable Distance |
30m |
| Media |
Copper |
Cable Type |
Cat6a/Cat7 |
| Max. Power Consumption |
≤2.5W |
DDM Support |
No |
| Protocols |
IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Connectivity Solutions(Applications) of SFP+10G RJ45 Transceiver
FAQ for 10G SFP+ to RJ45 Module
1. Q1:Does the HYTOPTODEVICE module support 2.5G and 5G on Brocade switches?A1: Yes. Our multi-rate 10G copper SFP+ for Brocade is a true NBase-T solution. It will automatically negotiate the highest possible speed (1G, 2.5G, 5G, or 10G) supported by both the Brocade switch port and the connected device.
2. Q2:Will I need the "allow-unsupported-transceiver" command in Brocade FOS? A2:No. HYTOPTODEVICE modules are pre-programmed with Brocade-specific EEPROM signatures. They are recognized as a native 10G-SFPP-T, providing full DDM/DOM diagnostics without any system-generated warnings or special CLI overrides.
3.Q3: What is the power consumption in fully loaded Brocade ICX 7750 switches? A3:The 10G-SFPP-T power consumption is optimized at ≤2.5W. To handle the thermal demands of high-density Brocade environments, HYTOPTODEVICE uses a high-thermal-conductivity zinc alloy housing to stay within the operating temperature range.
4. Q4:Can I achieve 30 meters at 10G speeds with Cat6 cable?A4: For a mission-critical 30m 10Gb SFP+ copper link, Cat6a or Cat7 shielded cable is highly recommended. While 10G over copper Cat6 cable distance can reach up to 15m, it is susceptible to alien crosstalk in high-traffic Brocade environments.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
Quality Certification & Compliance：
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
Rigorous Industrial Product Testing：
100% 3rd Party Compatible：
Partial Test Demonstration：
