| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | GLC-10G-T | |
| 2 | Cisco | SFP-10G-T-X | |
| 3 | Cisco | SFP-10G-T-S | |
| 4 | Alcatel-Lucent | SFP-10G-T | |
| 5 | Huawei | SFP-10G-T | |
| 6 | Arista Networks | SFP-10G-T | |
| 7 | Juniper Networks | EX-SFP-10GE-T | |
| 8 | Brocade | 10G-SFPP-T | |
| 9 | H3C | SFP-XG-T-S | |
| 10 | HPE BladeSystem | 813874-B21 |
The HYTOPTODEVICE SFP-10G-T is 100% verified and coded for seamless integration with:
OmniSwitch 6900 Series: High-density core switches (OS6900-X72, OS6900-V48).
OmniSwitch 6860(E/N) Series: Stackable LAN switches for enterprise access.
OmniSwitch 6560 Series: Multi-gigabit campus switches (OS6560-P24X4, OS6560-48X4).
OmniSwitch 9900 Series: Modular LAN chassis switches.
OmniSwitch 2260/2360 Series: Web-managed gigabit switches with SFP+ uplinks.
Optimized Usage Scenarios
Campus Multi-Gigabit Aggregation: Utilizing SFP+ to RJ45 2.5G/5G auto-sensing to support high-speed wireless backhaul for WiFi 6/7 APs on OmniSwitch 6860.
2. Enterprise Core-to-Distribution: Establishing 10Gbps or 5Gbps copper uplinks between OmniSwitches via structured cabling 10G migration.
3. Converged Network Connectivity: Providing flexible 10Gbps copper handoffs for VoIP, high-res video, and storage in Alcatel-Lucent AOS environments.

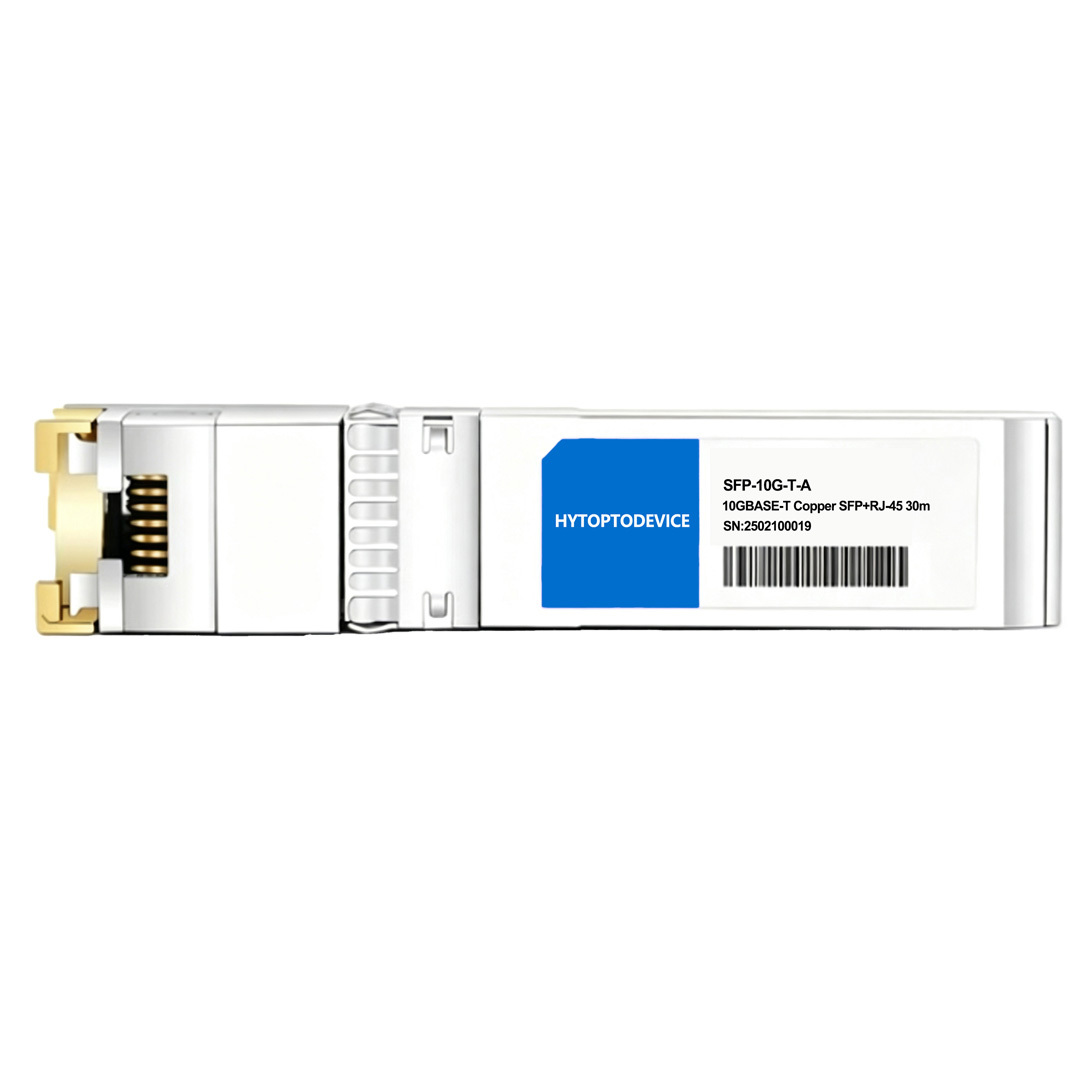

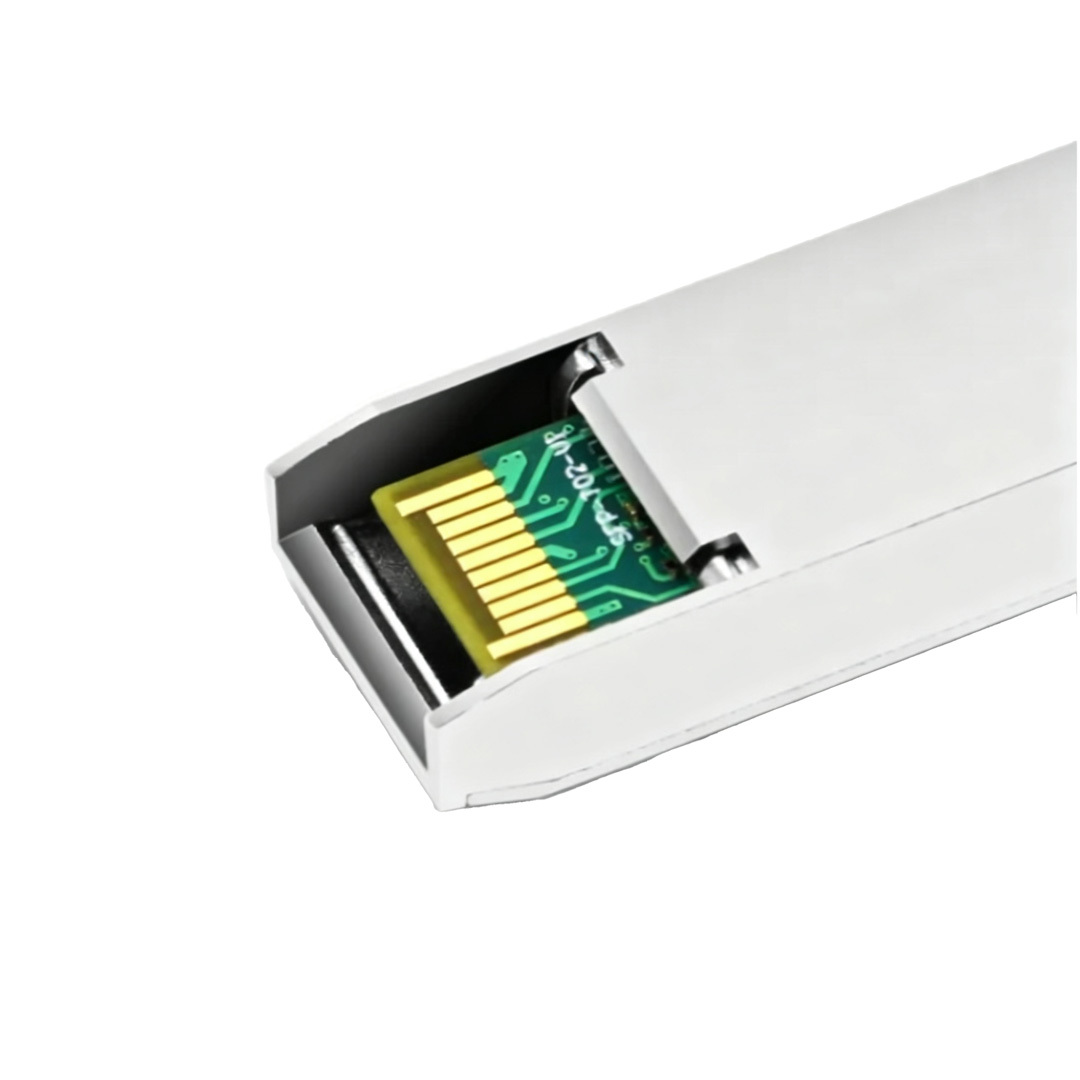

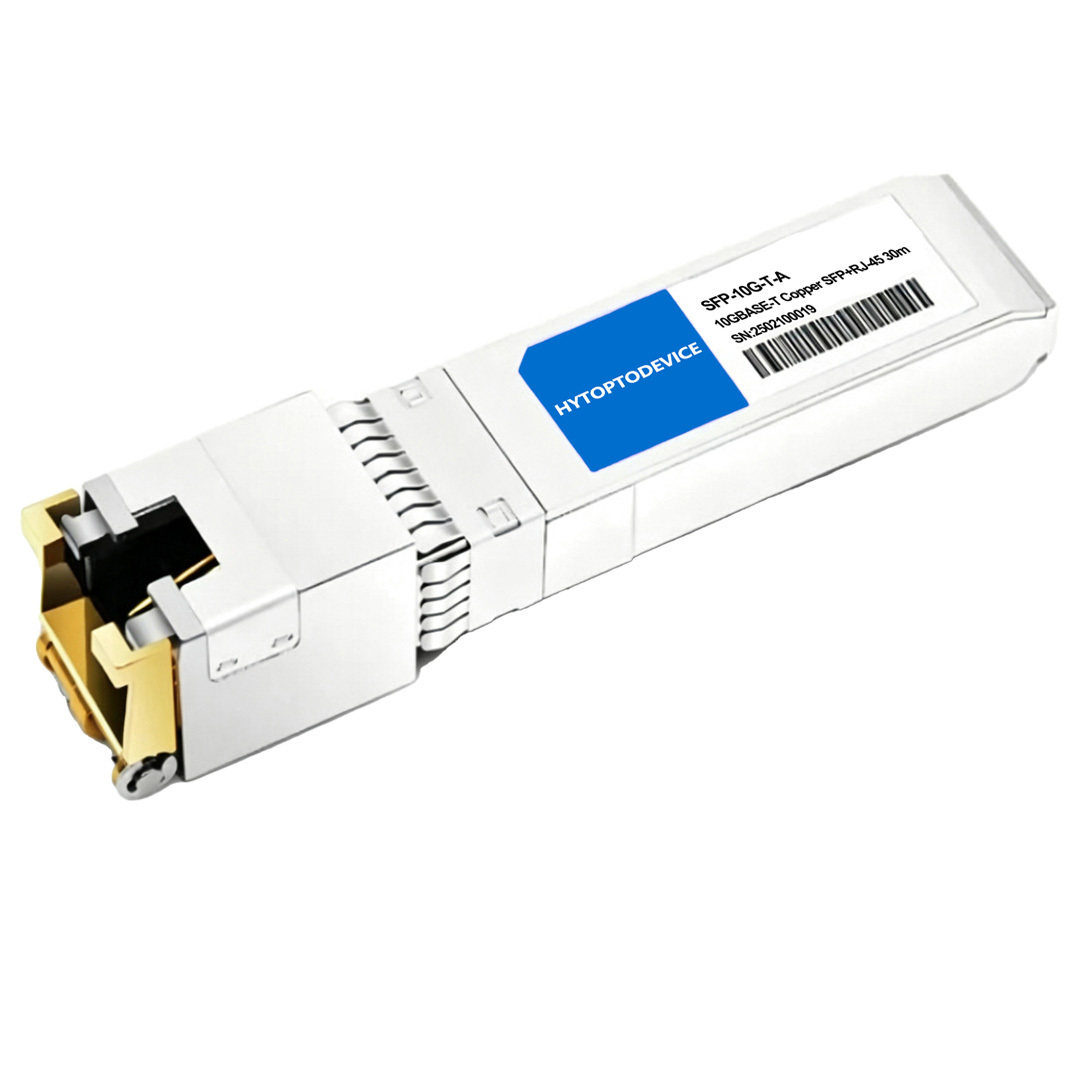

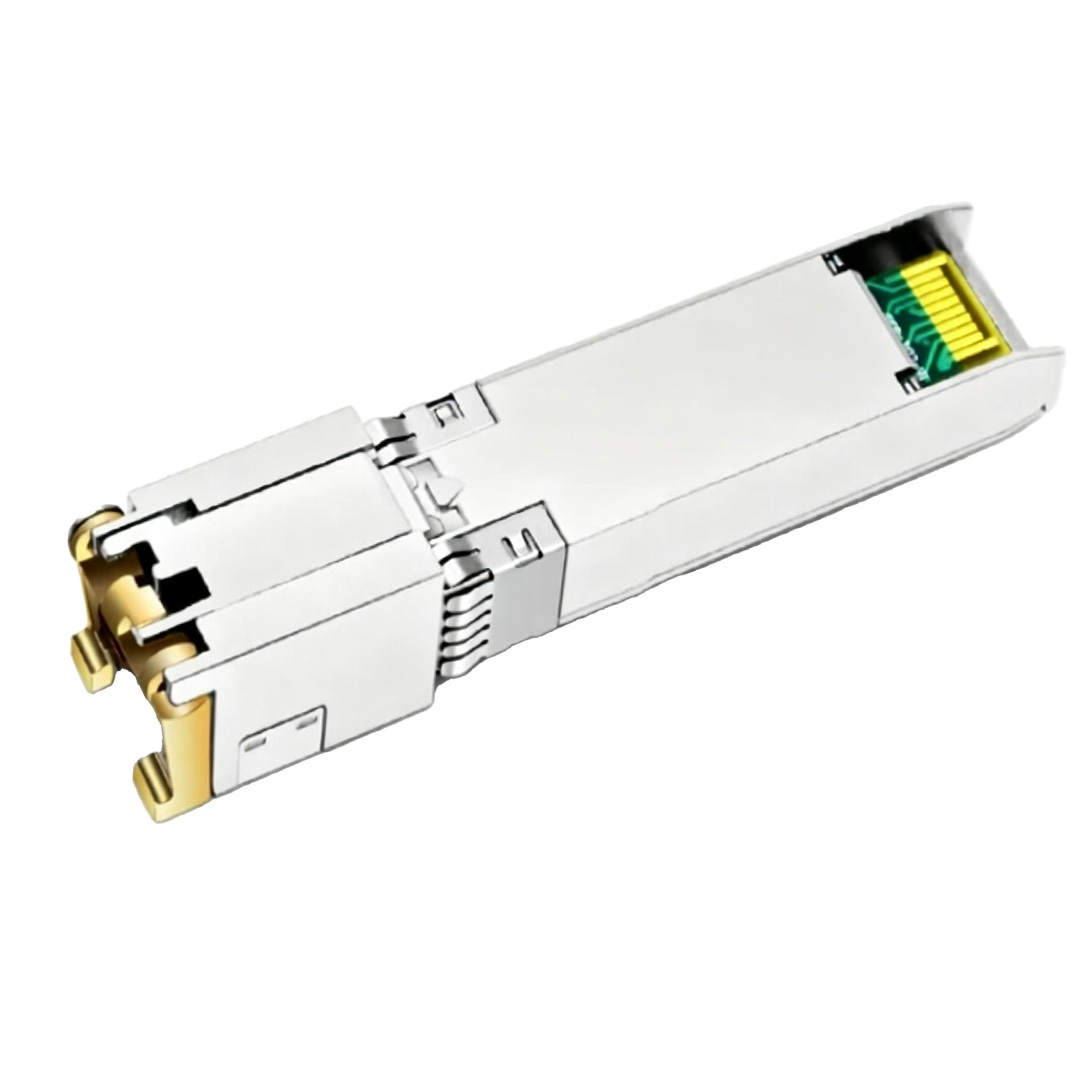

Key Product Parameters of 10G SFP+ RJ45 Module
| Alcatel-Lucent Compatible | SFP-10G-T | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ | Data Rate | 10Gbps, 5Gbps, 2.5Gbps, 1000Mbps |
| Connector | RJ-45 | Cable Distance | 30m |
| Media | Copper | Cable Type | Cat6a/Cat7 |
| Max. Power Consumption | ≤2.5W | DDM Support | No |
| Protocols | IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431 | Operation Temperature | 0 to 70°C (32 to 158°F) |
1. Does the HYTOPTODEVICE module support 2.5G and 5G on Alcatel-Lucent switches? Yes. Our multi-rate 10G copper SFP+ for Alcatel-Lucent is a full NBase-T solution. It will automatically negotiate the highest speed (1G, 2.5G, 5G, or 10G) supported by both the OmniSwitch port and the connected device.
2. Will I see "Unknown Transceiver" errors in Alcatel-Lucent AOS? No. HYTOPTODEVICE modules are pre-programmed with Alcatel-Lucent specific EEPROM signatures. They are recognized as a native SFP-10G-T, providing full DDM/DOM diagnostics and link status without any system errors or software lock-outs.
3. What is the power consumption in high-density OmniSwitch 6900 setups? The SFP-10G-T power consumption is optimized at ≤2.5W. To protect your Alcatel-Lucent hardware, HYTOPTODEVICE uses a high-thermal-conductivity zinc alloy housing to ensure the module stays within its operating temperature range.
4. Can I achieve 30 meters with standard Cat6 cable at 10G? For a mission-critical 30m 10Gb SFP+ copper link, Cat6a or Cat7 shielded cable is required. While 10G over copper Cat6 cable distance can reach up to 15m, it is susceptible to EMI in dense rack environments, so shielded cabling is recommended for 10G performance.
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
Quality Certification & Compliance：
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
