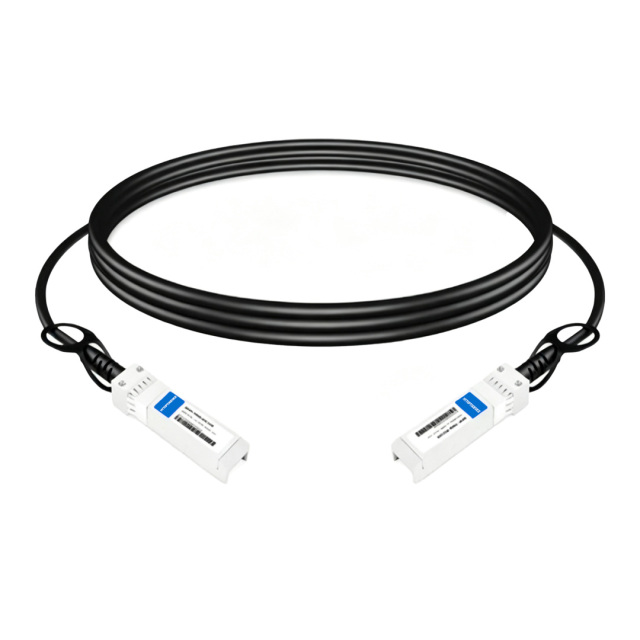

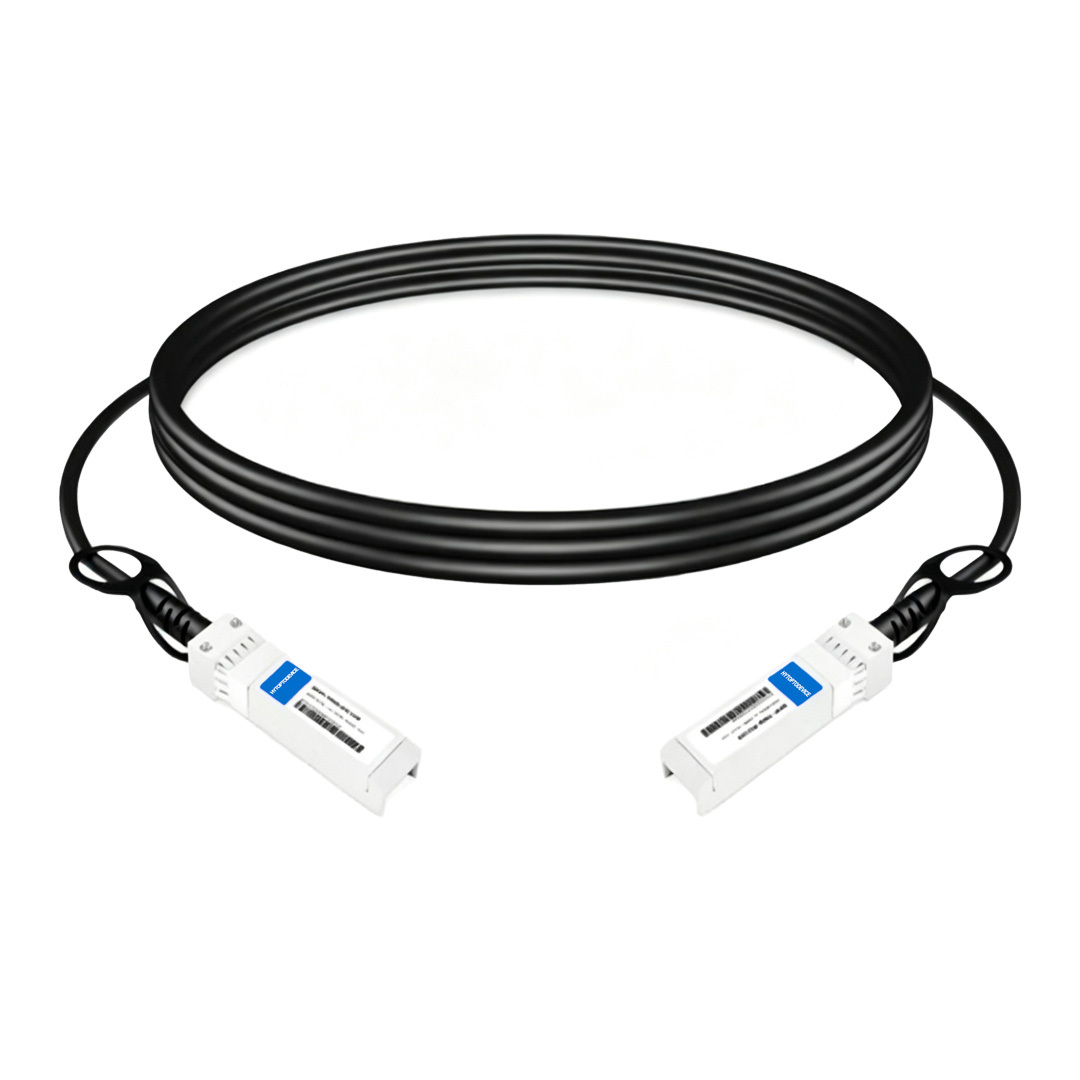

HYTOPTODEVICE SFP-10G-C3M Compatible 3M 10G SFP+ Passive Twinax DAC Copper Cable for Alcatel-Lucent Network Hardware
Product Overview
HYTOPTODEVICE produces pin-to-pin fully equivalent replacement for original Alcatel-Lucent SFP-10G-C3M passive SFP+ twinax DAC. Both cable terminals are factory pre-programmed with exclusive Alcatel-Lucent customized EEPROM data to achieve native plug-and-play without firmware upgrade or unrecognized-port alarms on genuine Alcatel enterprise switches and data center platforms.
This 3-meter medium-reach passive DAC strictly follows SFF-8431, SFF-8432 MSA & IEEE 10GBase-CU industry specifications, built with high-shield pure copper twinax structure. As a passive copper solution, no built-in monitoring chip so DDM/DOM diagnostic function is unavailable; only basic EEPROM identity data is stored for equipment identification. With ultra-low power consumption and stable low-latency 10G transmission, it is purposely designed for medium-distance cross-rack interconnection in carrier-grade IDC and enterprise server rooms.
All finished SFP-10G-C3M equivalent DAC goes through strict compatibility aging testing before delivery. As professional Alcatel-Lucent compatible cabling manufacturer, HYTOPTODEVICE supports bulk wholesale discount, private label OEM and alternative custom lengths to satisfy diversified network renovation requirements.
Key Technical Specifications of Alcatel 10G SFP+ DAC Cable 3m
All electrical impedance, mechanical dimension and transmission parameters of HYTOPTODEVICE SFP-10G-C3M fully match original Alcatel-Lucent factory specification and global SFP+ MSA standards.
| Alcatel-Lucent Compatible |
|
Vendor Name |
HYTOPTODEVICE |
| Connector |
SFP+ to SFP+ |
Max Data Rate |
10Gbps |
| Cable Length |
3m (10ft) |
Wire AWG |
AWG 30 |
| Cable Type |
Passive Twinax |
Power Consumption |
≤0.1W |
| Media |
Copper |
Operation Temperature |
0~ 70 °C (32 to 158°F) |
| Jacket Material |
PVC(OFNR) |
Protocols |
1x InfiniBand QDR, DDR, SDR, 10G Ethernet, Fibre Channel |
| Minimum Bend Radius |
20mm |
Application |
10G Ethernet |
Full Compatibility List & Supported Devices
1.Native Supported Alcatel-Lucent Hardware
Pre-flashed Alcatel exclusive EEPROM ensures seamless native identification on Alcatel OmniSwitch series, enterprise routing switches and SFP+ equipped rack servers without manual configuration adjustment or port error prompts.
-
Alcatel-Lucent OmniSwitch Enterprise Switches: Fully compatible with stackable and core platforms, including the OmniSwitch 6860, 6900, 9900, and 6865 Series switches equipped with 10GbE slots.
-
Alcatel-Lucent Carrier Ethernet Switches: Optimized for access and aggregation layers using the OmniSwitch 6855 and select service router interfaces.
2.Cross-Brand Multi-Vendor Compatibility
Complying with universal SFP+ MSA standard, SFP-10G-C3M works reliably with SFP+ port switches and server NIC from Cisco, HPE, Arista, Brocade, Juniper and Dell for multi-vendor mixed network construction.
Primary Application Scenarios for SFP-10G-C3M 3M Passive DAC
1.Medium-Distance Cross-Rack Carrier & Enterprise Interconnection
Optimal for medium-span rack-to-rack 10G links inside carrier data centers and enterprise computer rooms, more cost-efficient than fiber cabling for short-to-medium fixed wiring.
2.Long-Span In-Rack Switch-to-Server Cabling
Connect top-of-rack Alcatel switches to deep-mounted server SFP+ NICs where 3-meter cable length is needed for neat internal cabinet routing.
3.Cost-Saving Network Upgrade for SMB & ISP Operators
Replace expensive original Alcatel OEM DAC or optical transceiver+fiber set with economical HYTOPTODEVICE compatible cable to cut overall project CAPEX.
Connectivity Solutions(Applications) for HYTOPTODEVICE compatible 10G DAC
1.Medium cross-rack interconnection between two Alcatel SFP+ switches via HYTOPTODEVICE SFP-10G-C3M 3M passive twinax DAC
2.Alcatel rack switch directly links to server SFP+ network interface card with 3M SFP-10G-C3M passive DAC:
Frequently Asked Questions About HYTOPTODEVICE Compatible 10G SFP+DAC Cable
Q1: Is HYTOPTODEVICE SFP-10G-C3M fully plug-and-play on original Alcatel-Lucent OmniSwitch?
A: Yes, prewritten Alcatel proprietary EEPROM enables direct hot plug without firmware update or compatibility warning on authentic Alcatel equipment.
Q2: Does SFP-10G-C3M passive DAC support DDM/DOM real-time operational monitoring?
A: No, passive twinax design excludes monitoring circuit and chip; only basic PN and speed info saved inside EEPROM. Choose active DAC if DDM monitoring function is required.
Q3: What is fixed physical length of Alcatel compatible SFP-10G-C3M DAC?
A: Standard fixed length is 3 meter for medium cross-rack deployment; HYTOPTODEVICE stocks optional 0.5M/1M/2M/5M alternative DAC on bulk demand.
Q4: Can SFP-10G-C3M connect non-Alcatel SFP+ switches and third-party server NIC?
A: Absolutely, full SFP+ MSA compliance guarantees universal interoperability with all mainstream SFP+ interface network devices across multiple brands.
Q5: What core cost advantages choosing HYTOPTODEVICE vs genuine Alcatel SFP-10G-C3M OEM cable?
A: Identical compatibility and transmission performance as OEM, 38%~56% lower bulk purchase cost, in-stock fast global delivery and dedicated factory aftersales technical support.
Q6: Does SFP-10G-C3M support hot swap on powered-running Alcatel switches and servers?
A: Designed per standard SFP+ hot-plug specification, safe plug/unplug without shutting down active network hardware.
Q7: How much power consumption of passive SFP-10G-C3M twinax DAC?
A: Power draw below 0.1W per end connector, ultra energy-saving for large-scale carrier IDC deployment.
Q8: Standard operating temperature range for regular indoor data center environment?
A: Commercial working range:0℃~70℃; customized wide-temperature industrial DAC available upon large OEM bulk order for non-air-conditioned harsh cabinet.
Q9: Does HYTOPTODEVICE provide OEM private label & custom cable marking for global distributors?
A: Flexible low MOQ supports private packaging, laser cable marking and personalized EEPROM programming to meet reseller customized wholesale cooperation needs.
Q10: What warranty policy applies for HYTOPTODEVICE SFP-10G-C3M compatible DAC?
A: All in-stock products enjoy standard 5-year factory warranty; free replacement service for defective items under normal installation and proper usage.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
- In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
- Private Label support - EEPROM / firmware customization support
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP+ modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
