| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | SFP-10G-BX40U-I | Industrial Temperature |
| 2 | Arista | 10GBASE-ERBD-U | |
| 3 | Huawei | SFP-10G-ER-SM1270-BIDI | |
| 4 | Dell | GP-SFP-10GBX-U-40 | |
| 5 | Brocade | 10G-SFPP-BXU-40K | |
| 6 | Extreme | 10GB-BX40-U | |
| 7 | Ciena | XCVR-S40U27 | |
| 8 | D-Link | DEM-436XT-BXU | |
| 9 | Fortinet | FN-TRAN-SFP+ERBD27 |

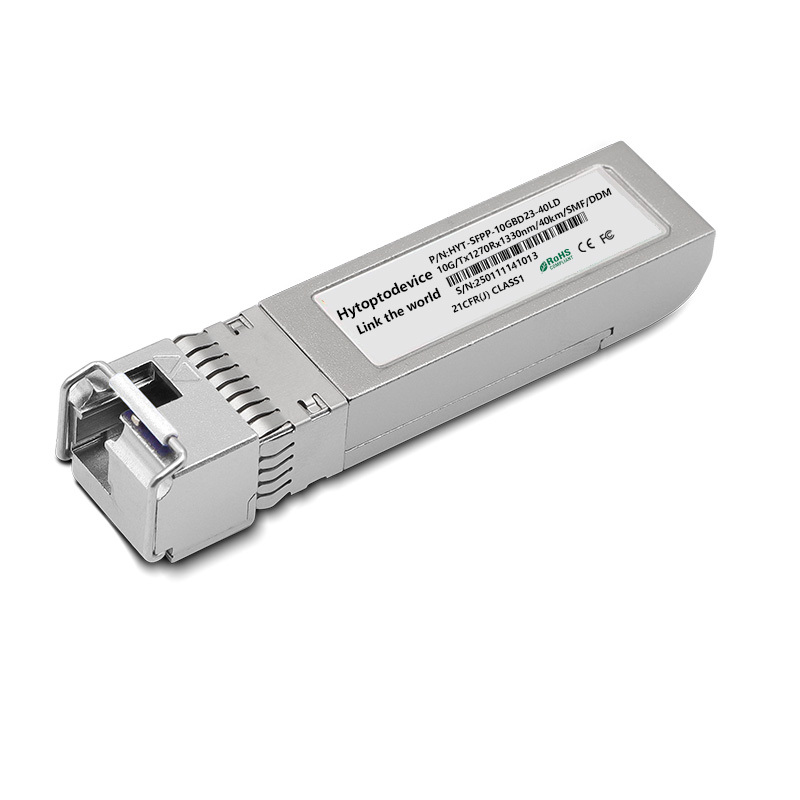

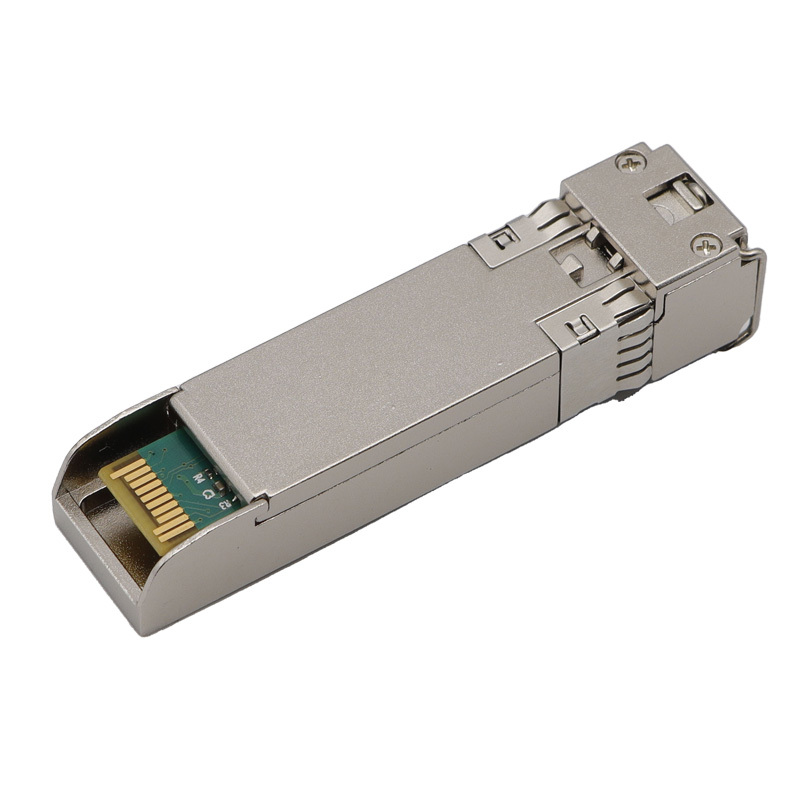

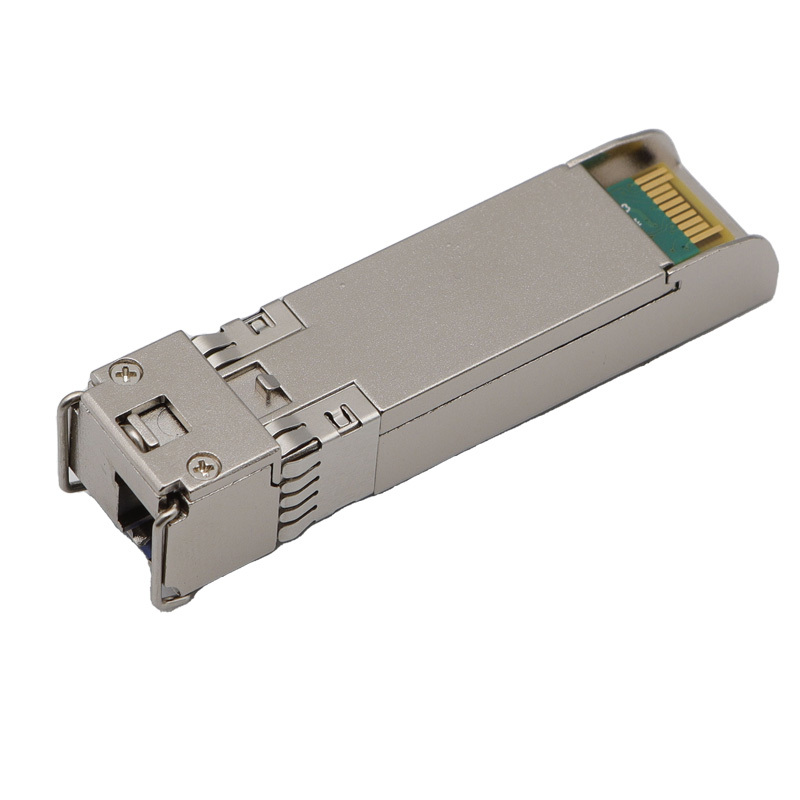

Dell GP-SFP-10GBX-U-40 Compatible 10G SFP+ BiDi Transceiver 10GBASE-BX40-U (SMF, 1270nm-TX/1330nm-RX, 40km, Simplex LC, DDM)
Product Overview
HYTOPTODEVICE Dell GP-SFP-10GBX-U-40 Compatible 10G SFP+ BiDi Transceiver is a commercial grade 10G SFP+ BiDi single-mode optic, built for 40km point-to-point transmission over single strand OS2 single mode fiber.
• Wavelength: Tx1270nm/Rx1330nm (Match Dell GP-SFP-10GBX-D-40 standard BiDi pairing)

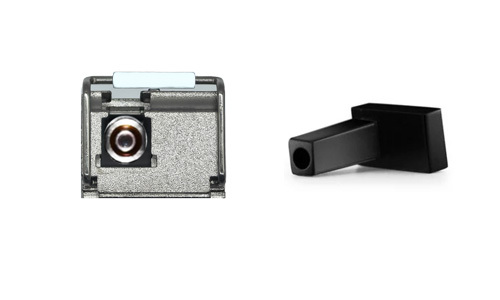

• Interface: Standard LC simplex connector
• Transmission Distance: Stable 40km @10Gbps SMF OS2
Compliant with Hot-Pluggable SFP+ MSA, SFF-8472,SFP-8431, IEEE 802.3ae and RoHS standards and fully DDM/DOM support, Delivering high-speed performance with optimized power efficiency, this single-strand 10G SFP+ BiDi Transceiver is the ideal solution for cross-campus backbones, metropolitan area network (MAN) rings, and long-range data center interconnects (DCI). We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.
| Dell Compatible | GP-SFP-10GBX-U-40 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | TX1270nm/RX1330nm | Max Distance | 40km |
| Connector | Simplex LC | Transmitter Type | 1270nm DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -1.0~+5dBm | Receiver Sensitivity | < -15dBm |
| Max. Power Consumption | ≤1W | DOM/DDM | Fully Supported |
| Protocols | SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
3.Free Custom EEPROM Re-Flash Service
Complimentary permanent EEPROM rewrite for all bulk orders of SFP+ 10G BiDi 40KM Transceiver. Upgrade Dell OS or migrate modules to other brand racks; our team re-codes firmware free of charge to maintain stable 40km single-fiber bidirectional links for evolving multi-vendor metro architectures.
Primary Application Scenarios
Cost-efficient 10G SFP+ BiDi Transceiver tailored for commercial long-distance single-fiber 10G networking, covering enterprise, campus and ISP scenarios.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
