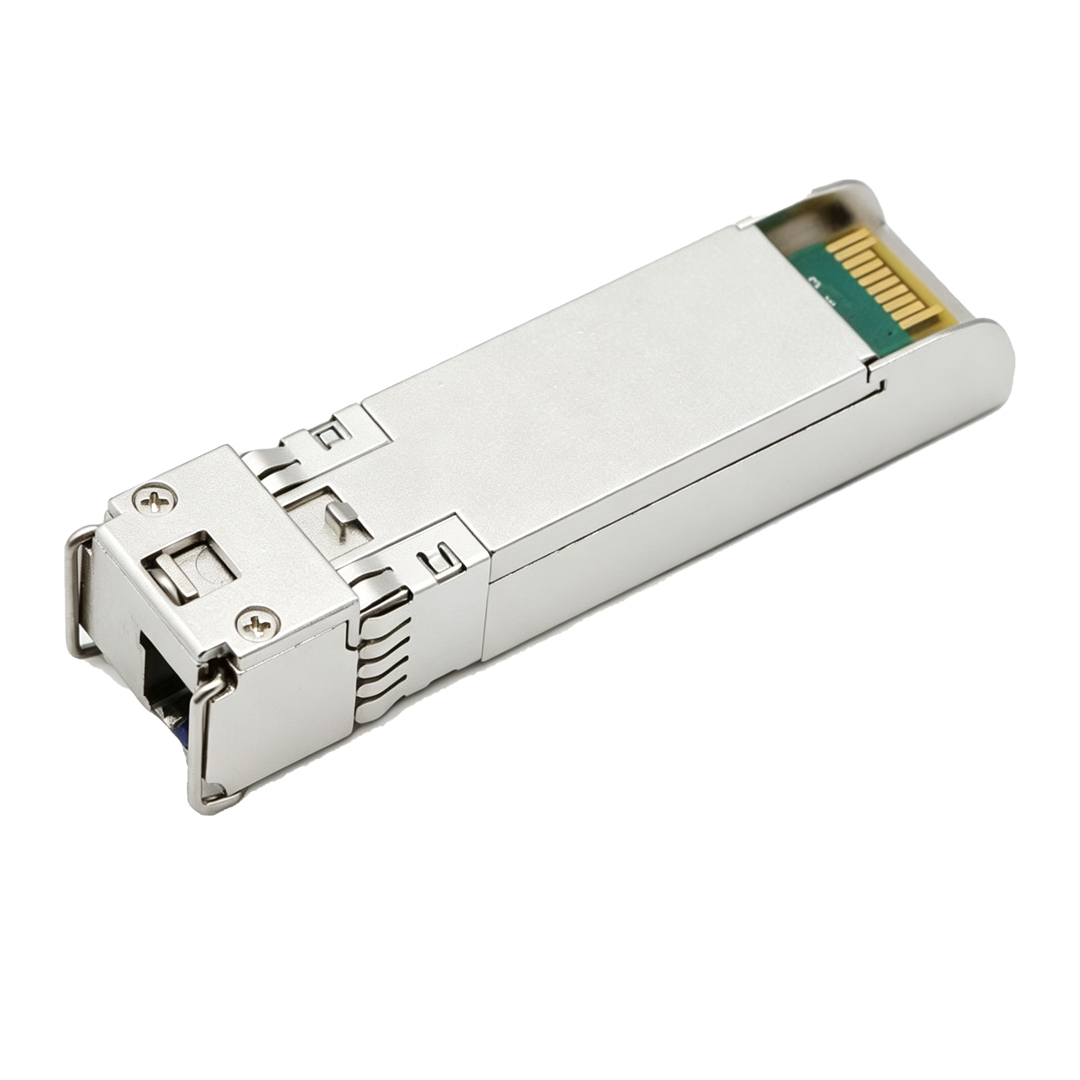

Huawei Compatible SFP-10G-BX20U 10G SFP+ BiDi Transceiver Module 10GBASE-BX20-U (SMF, 1270nm-TX/1330nm-RX, 20km, Simplex LC, DDM)
Product Overview
The Huawei matching SFP-10G-BX20U optical transceiver features a simplex LC port and supports stable 20km transmission over G.652 single-mode fiber. This 10G SFP+ BiDi Transceiver achieves bidirectional data transmission through a single fiber strand, cutting cabling costs and maximizing utilization of existing fiber resources. Manufactured by HYTOPTODEVICE, the 10GBASE-BX20-U 10G SFP+ BiDi Transceiver fully complies with SFP+ MSA, IEEE 802.3ae and SFF-8431 industrial standards. Supporting DDM digital diagnostic monitoring to view real-time operating parameters, the cost-saving 10G SFP+ BiDi Transceiver replacement for Huawei OEM optics delivers stable plug-and-play compatibility with Huawei VRP switches and mainstream network devices. ideal for enterprise wiring closets, service provider transport applications,etc.
Key Technical Specifications
Below are the specifications for our Huawei SFP-10G-BX20-U compatible 10G SFP+ BiDi Transceiver (1270nm-TX/1330nm-RX, 20km, SMF, LC, DDM). Every unit undergoes strict optical and electrical testing. Official test documentation is available upon request.
| Huawei Compatible |
SFP-10G-BX20U |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-3.0~+2.0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
Receiver Overload |
0.5dBm |
| Protocols |
10G Ethernet, MSA Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Full Compatibility List & Supported Network Hardware
1.Huawei Exclusive Compatible Hardware & Validated Switch Series
Our plug-and-play 10G SFP+ BiDi Transceiver is pre-programmed with standard Huawei EEPROM identification data, eliminating unsupported transceiver warning logs after full real-machine insertion verification on all listed hardware:
-
Huawei CloudEngine Campus Switches: S5731, S5732, S5735, S5736, S6720, S6730, and S6735 Series.
-
Huawei CloudEngine Data Center Switches: CE6800, CE7800, and CE8800 Series (via 10G access ports).
-
Huawei NetEngine Routers: NE05E, NE08E, NE20E-S, and NE40E Series (via supported 10G interface line cards).
-
Huawei AR Series Enterprise Routers: AR6100, AR6200, and AR6300 Series.
At HYTOPTODEVICE, 150+ brand switches and routers are operating for compatibility test. Authentic real-Huawei-device test videos of this 10G SFP+ BiDi Transceiver are offered free for project bidding and internal quality audits.
2.Cross-Vendor Compatibility
Our transceivers are fully interoperable with network switches and hardware from mainstream brands including Cisco, Huawei, Juniper, Arista, HPE, Dell and more. We offer custom EEPROM coding services tailored to clients’ individual equipment requirements, alongside remote one-on-one technical guidance for deployment and configuration.
For long-term strategic partners, we provide free dedicated coding equipment and full technical support. Clients can independently perform module encoding and EEPROM rewriting anytime to match their own network devices.
Primary Application Scenarios
“What happens if the modules on each side of my fiber don't match?”“Can I mix different data speeds or wavelengths on a 10G BiDi fiber line?” Maybe you are in the situation. the real answer is : If the modules at either end of your fiber line run at different speeds or don't have matching wavelengths, your 10G BiDi connection won't work. The matched pair should be Tx1270/Rx1330 and Tx1330/Rx1270 10G.

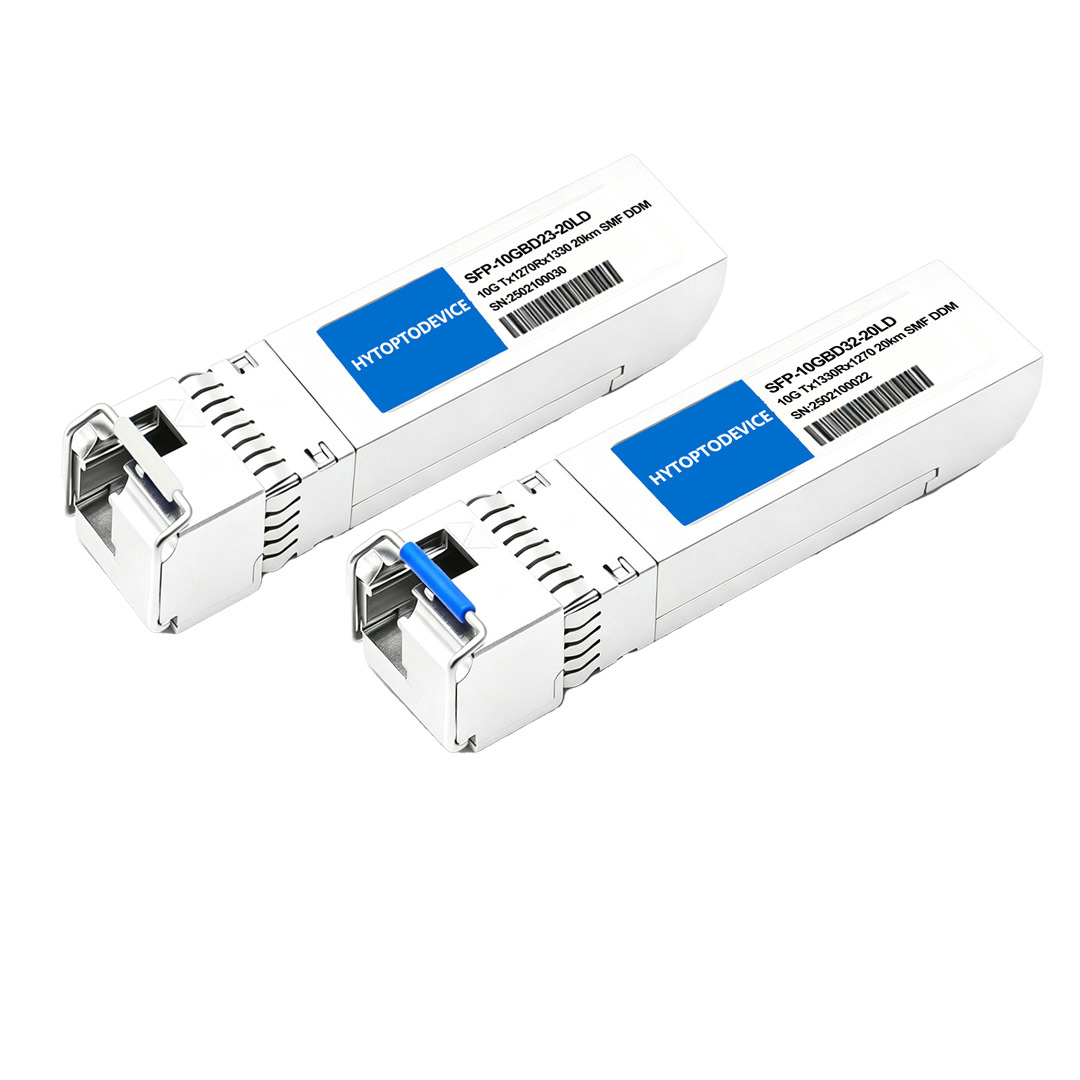

This 10G SFP+ BiDi Transceiver must be deployed in matched pairs with a complementary reverse-wavelength BiDi module, installed separately at both ends of fiber patch cords to build valid bidirectional 10G links. Ideal for fiber-limited network renovation and cable tray shortage scenarios, this 10G SFP+ BiDi Transceiver boosts fiber utilization and simplifies enterprise network expansion. Below are its mainstream commercial deployment scenarios:
- 10G SFP+ BiDi Transceiver for multi-building campus single-fiber backbone, halving fiber deployment costs for long-distance point-to-point enterprise network upgrades with simplex single-strand OS2 fiber.
- 10G SFP+ BiDi Transceiver for TOR switch to server NIC uplink, building stable 10G single-fiber high-speed connections between core rack aggregation switches and local server network interface cards.
- 10G SFP+ BiDi Transceiver for standardized indoor rack structured cabling layout, matching industry cable management norms for server rooms and multi-floor building wiring infrastructure.

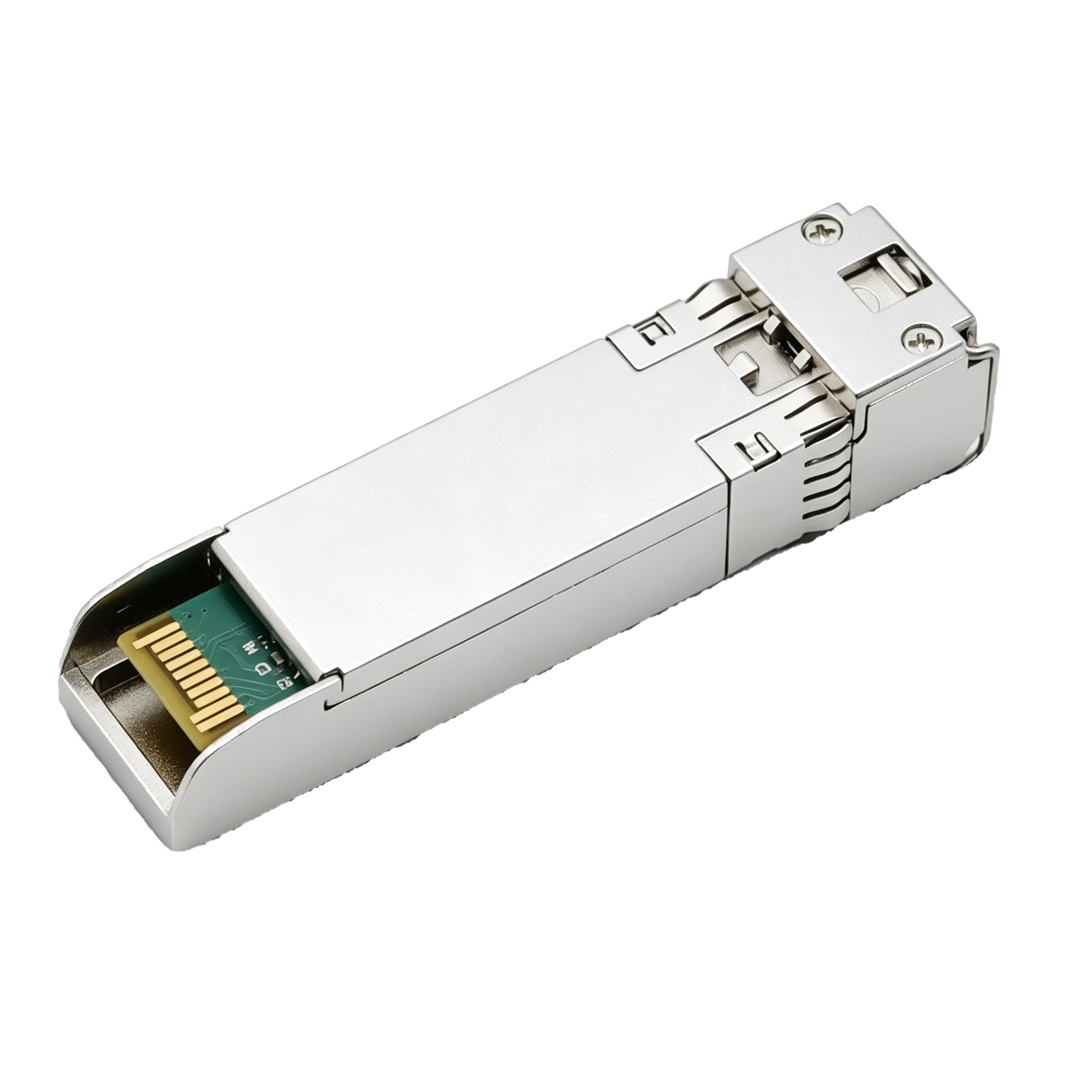

- Bulk factory supply commercial grade 10G SFP+ BiDi Transceiver for corporate office network expansion, running stably in climate-controlled indoor cabinets under standard 0~70℃ operating range.
- Cost-saving 10G SFP+ BiDi Transceiver replacement for Huawei OEM optics for ISP FTTB access network construction, cutting large-batch procurement costs compared with high-priced original Huawei optical modules.
Connectivity Solutions(Applications)
Our in-stock 10G SFP+ BiDi Transceiver for enterprise single-fiber network projects supports three widely adopted enterprise network installation architectures:
1.10G Switch-to-Switch Interconnection Diagram:
Deploy paired matching 10G SFP+ BiDi Transceiver between two core enterprise switches to construct long-distance single-fiber backbone trunk links.
2.10G Switch-to-NIC Server Uplink Diagram:
Adopt 10G SFP+ BiDi Transceiver to connect central rack aggregation switch and local server NIC for reliable single-fiber 10G uplink data transmission.
3.10G Standardized Structured Cabling Rack Layout Diagram:
Rack-mounted 10G SFP+ BiDi Transceiver matched with cable managers for tidy, compliant multi-floor building structured wiring deployment.
FAQ for Arista Compatible 10G BiDi SFP+ Module
Q1: Can Huawei pre-coded Tx1270/Rx1330 20km 10G SFP+ BiDi Transceiver read full DDM diagnostic data via native VRP CLI commands?
A: All HYTOPTODEVICE 10G SFP+ BiDi Transceiver complies with SFF-8472 DDM standards. Network engineers check real-time Tx/Rx power, temperature and voltage through Huawei built-in transceiver detail commands.
Q2: Is single-fiber commercial grade 10G SFP+ BiDi Transceiver capable of auto-negotiating down to legacy 1G Ethernet bandwidth?
A: This HYTOPTODEVICE 10G SFP+ BiDi Transceiver locks fixed 10GBASE transmission rate. It cannot downgrade to 1G or 100M legacy network speeds and only runs under 10G Ethernet.
Q3: Is real-Huawei-switch validated 10G SFP+ BiDi Transceiver stable enough to replace genuine Huawei original optical hardware?
A: HYTOPTODEVICE 10G SFP+ BiDi Transceiver adopts premium optoelectronic chips matching OEM standards. Every unit completes full aging testing on physical Huawei switches with independent serial numbers, ensuring 99.9% stable long-term network operation.
Q4: Does simplex LC single-strand 10G SFP+ BiDi Transceiver meet international environmental and laser safety certification requirements?
A: Our HYTOPTODEVICE 10G SFP+ BiDi Transceiver fully conforms to SFP+ MSA, CE, FCC, RoHS and IEC 60825-1 laser safety standards, satisfying global enterprise safety and green deployment rules.
Q5: Can Huawei customized Tx1270/Rx1330 10G SFP+ BiDi Transceiver be inserted into traditional 1G-only SFP hardware slots?
A: The HYTOPTODEVICE 10G SFP+ BiDi Transceiver uses dedicated 10G SFP+ chip architecture, which is electrically incompatible with 1G SFP slots and cannot be identified or activated on 1G switches.
Q6: Can factory-programmed 10G SFP+ BiDi Transceiver Tx1270/Rx1330 operate normally on Arista, Cisco and other third-party brand switches?
A: This HYTOPTODEVICE 10G SFP+ BiDi Transceiver is pre-flashed with exclusive Huawei identification codes. To avoid alarm logs on other-brand devices, choose our brand-customized BiDi modules matching your target switch brand.
Q7: What maximum power consumption will high-density rack deployed 20km 10G SFP+ BiDi Transceiver generate during continuous operation?
A: HYTOPTODEVICE optimizes the power circuit of this 10G SFP+ BiDi Transceiver, with max power consumption controlled below 1.5W, effectively reducing heat buildup inside densely populated Huawei switch cabinets.
Q8: Is single-mode simplex 10G SFP+ BiDi Transceiver Tx1270/Rx1330 suitable for SDH and SONET telecom transmission backbone systems?
A: HYTOPTODEVICE 10G SFP+ BiDi Transceiver is exclusively calibrated for IEEE 802.3ae 10G Ethernet and fiber channel networks, not designed for SDH/SONET telecom signal transmission.
Q9: Which fiber end-face polishing standard matches 20km Huawei compatible 10G SFP+ BiDi Transceiver simplex LC port?
A: HYTOPTODEVICE 10G SFP+ BiDi Transceiver adopts standard blue LC/UPC simplex interface. Green angled LC/APC patch cords are prohibited, which will cause severe optical attenuation and complete link failure.
Q10: Why does Huawei switch port light up for paired-wavelength 10G SFP+ BiDi Transceiver but receive zero data traffic?
A: If HYTOPTODEVICE 10G SFP+ BiDi Transceiver shows link light without packet reception, faults usually originate from misconfigured MTU, STP port blocking or inconsistent VLAN tagging on the Huawei VRP interface.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
