H3C OSFP800-800G-2FR4-WDM1300-DLC Compatible 800G OSFP 2xFR4 Optical Transceiver Module | HYTOPTODEVICE

Product Detail：

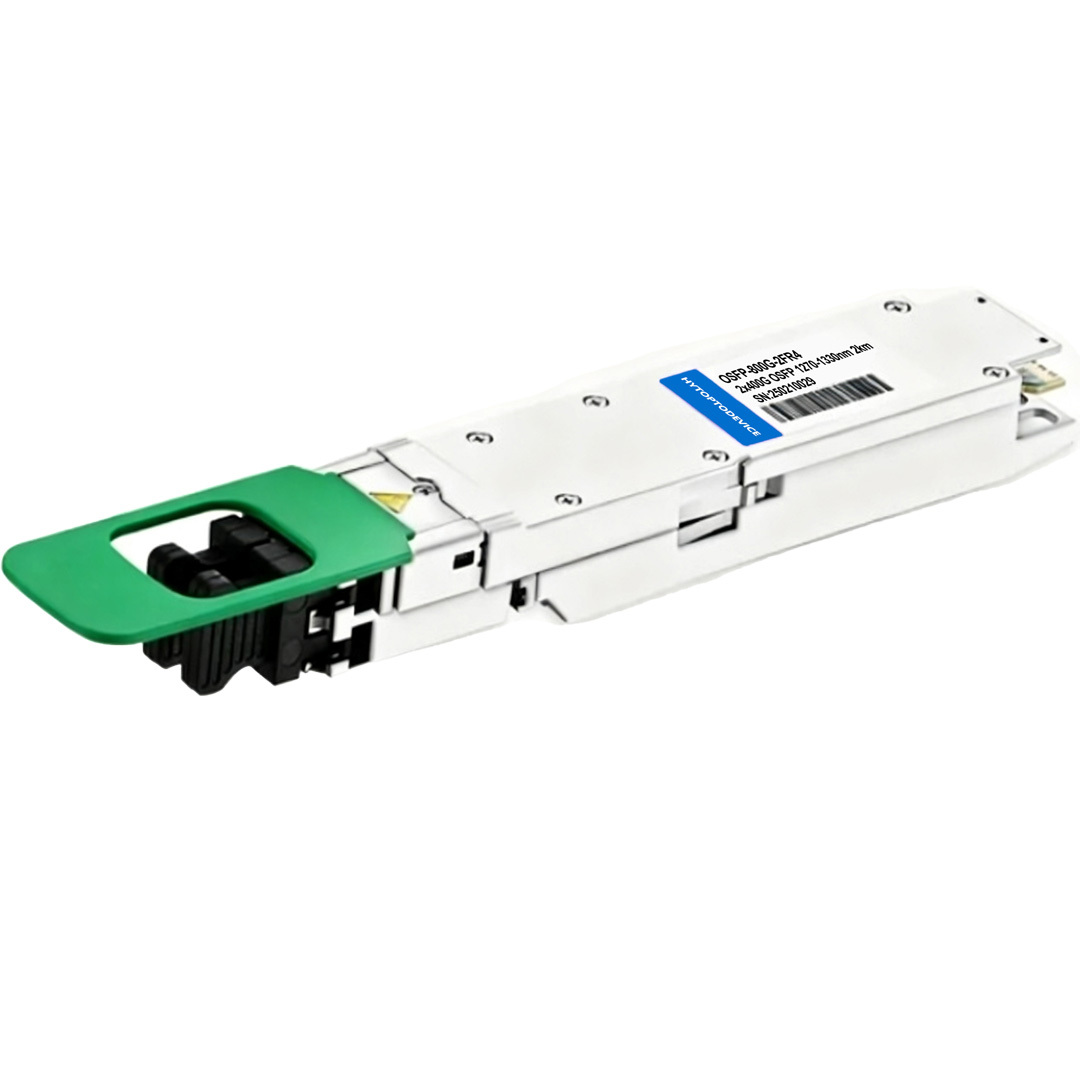

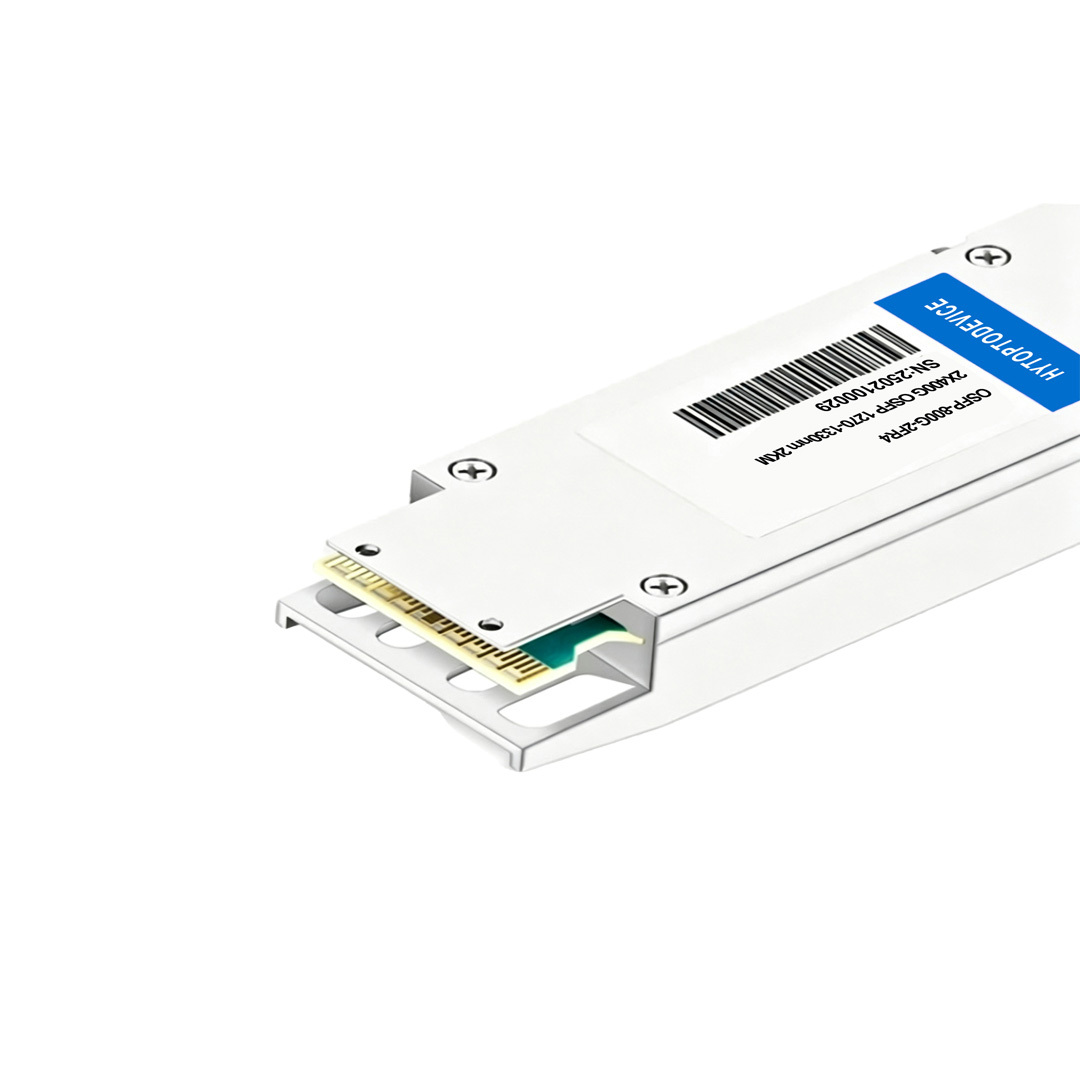

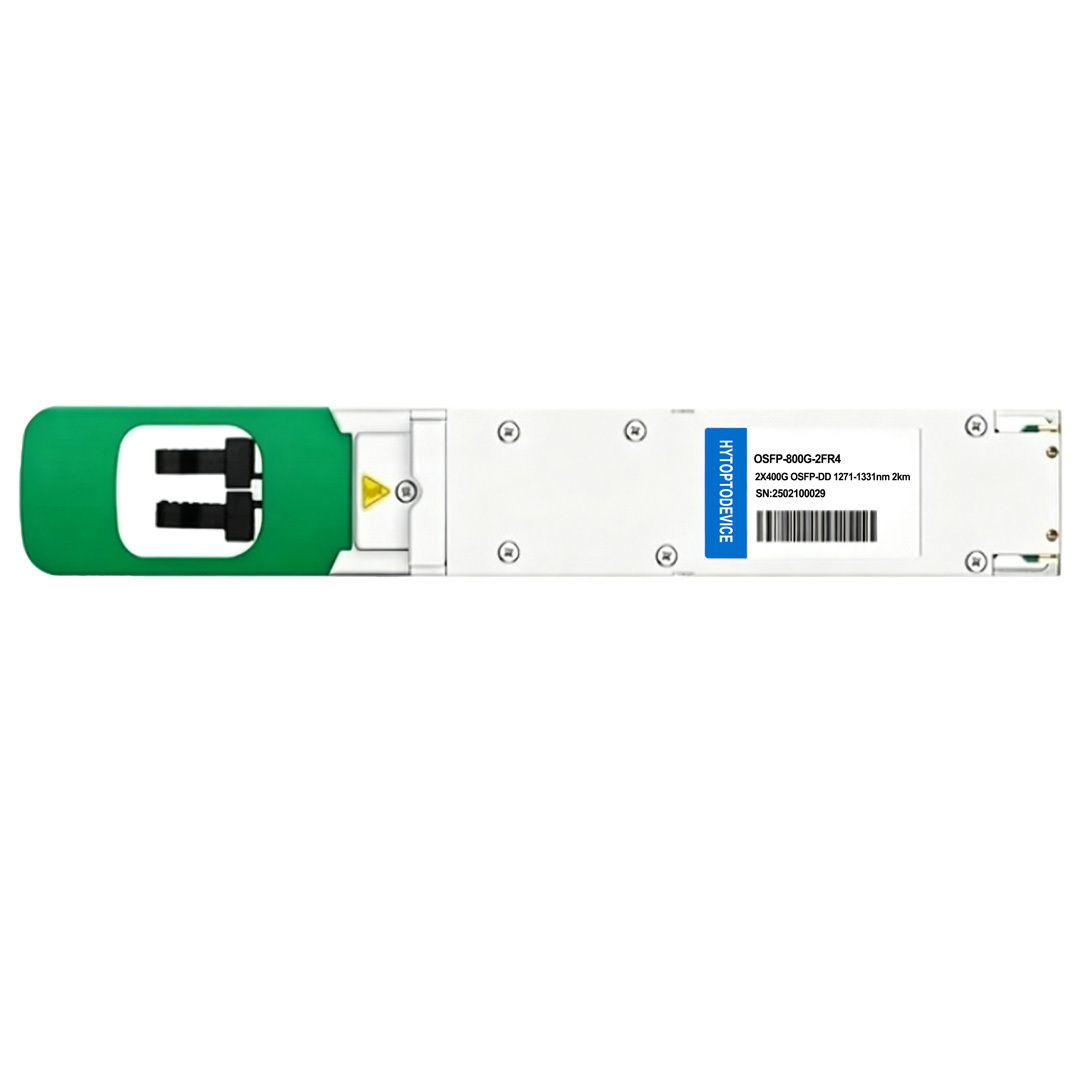

HYTOPTODEVICE 800G OSFP Transceiver | 800GBASE 2 x FR4 Compatible Module (SMF, 1310nm, 2km, Dual Duplex LC, DOM, IHS/ Finned Top)
      The OSFP800-800G-2FR4-WDM1300-DLC is a high-performance H3C compatible 800G optical transceiver, engineered for next-generation 800G Ethernet, Data Center Interconnect (DCI), and InfiniBand Interconnects. It is a twin-port OSFP transceiver with a 2x400G architecture, allowing for high-density 800G links or 2x400G breakouts over Single-Mode Fiber (SMF) via dual Duplex LC connectors. Fully compliant with OSFP MSA and IEEE 802.3ck protocols, it is powered by top-tier core chipsets and CWDM 1310nm laser technology to deliver 800Gbps (8x100G PAM4) aggregate throughput up to 2km.

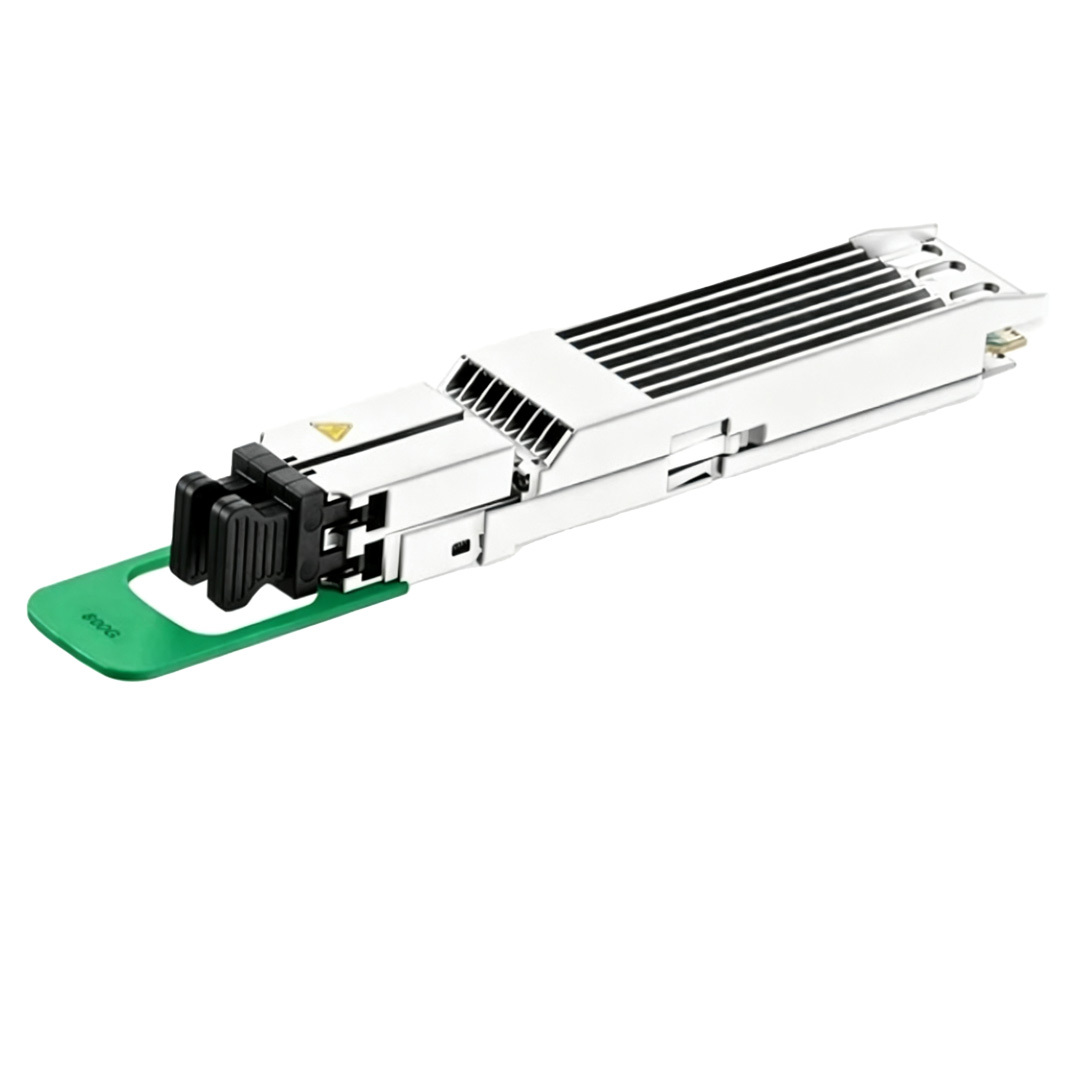

     Designed for air-cooled Ethernet switches, this twin-port OSFP IHS ( Finned Top) transceiver offers low latency, low power, and high reliability. It seamlessly supports spine-leaf uplinks, ToR switch downlinks to network adapters, and direct connections to BlueField-3 DPUs. It is the ideal interconnect solution for AI, HPC, and cloud data centers.

Full Compatibility List and Supported Devices of Compatible 800G Transceiver

This twin-port OSFP module is 100% compatible with H3C’s high-performance 800G routing and switching platforms，It integrates seamlessly into platforms including:

• H3C S12500G-AF / S12500R Series Data Center Core Switches:

  • Supported on next-generation high-density 800G line cards.

• H3C S9825 / S9855 / S9826 Series High-Performance Switches:

  • High-density switches featuring native 800G OSFP ports (e.g., S9826-32D / S9825-64D variations).

• H3C CR16000 / CR19000 Series Core Routers:

  • Deployed in high-capacity service provider routing line cards supporting line-rate 800Gbps interfaces.

Primary Application Scenarios of 800G OSFP Optical Transceiver

The H3C OSFP800-800G-2FR4-WDM1300-DLC is built for high-throughput, scale-out network topologies, making it ideal for the following scenarios:

• AI/ML Clusters & Accelerated Computing: Interconnects high-density GPU compute architectures and high-performance flash arrays requiring ultra-low latency and maximum line-rate bandwidth.

• High-Density Spine-Leaf IP Fabrics: Doubles the uplink capacity from leaf/ToR switches to core spine switches by routing two separate 400G lines over a single physical 800G slot cage.

• Intra-Data Center Core Transport: Provides cost-effective, high-bandwidth 800G connections across distinct server halls and automated cloud halls separated by up to 2km.

• Carrier Edge & Cloud Service Providers: Maximizes slot and chassis efficiency in core routing matrices running intensive multi-tenant 5G, peering, and content distribution traffic.

Key Product Parameters of 800G 2FR4 Transceivers

Q1: What is the exact architecture of the H3C OSFP800-800G-2FR4-WDM1300-DLC? A1: It is an 800Gbps transceiver utilizing the OSFP form factor that features a twin-port (2x400G) architecture. Internally, it splits into two completely separate 400Gbps FR4 logical interfaces over a single physical module.

Q2: What do the "WDM1300" and "DLC" suffixes stand for? A2: "WDM1300" indicates that the optical module operates in the 1300nm wavelength band using Wavelength Division Multiplexing (CWDM4). "DLC" stands for Dual Duplex LC, it means that the module has two separate duplex LC ports on its front faceplate.

Q3: What is the maximum reach and optical wavelength specs for OSFP800-800G-2FR4-WDM1300-DLC?A3: Its transmission distance is  up to 2km over single-mode fiber(SMF) via dual duplex LC.It has 2x400G port, Each 400G port utilizes 4 CWDM wavelengths: 1271nm, 1291nm, 1311nm, and 1331nm.

Q4: How do you guarantee zero packet loss before shipment? A4: Every Juniper compatible  OSFP-2X400G-FR4-P  transceiver undergoes strict 100% full line-rate traffic looping and stress testing on Juniper QFX Series Data Center Switches. A live test report and validation video can be provided prior to dispatch.

Q5: Which modulation technology drives this H3C 800G OSFP transceiver? A5: The module implements high-speed 100G PAM4 (Pulse Amplitude Modulation 4-level) technology across 8 electrical and 8 optical channels (2x4x100G).

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.

"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
