| NO. | Brand | Compatible P/N | Remarks |
| 1 | Arista | OSFP-400G-DR4 | |
| 2 | NVIDIA/Mellanox | MMS4X00-NS400 | |
| 3 | Generic | 400G OSFP DR4 |

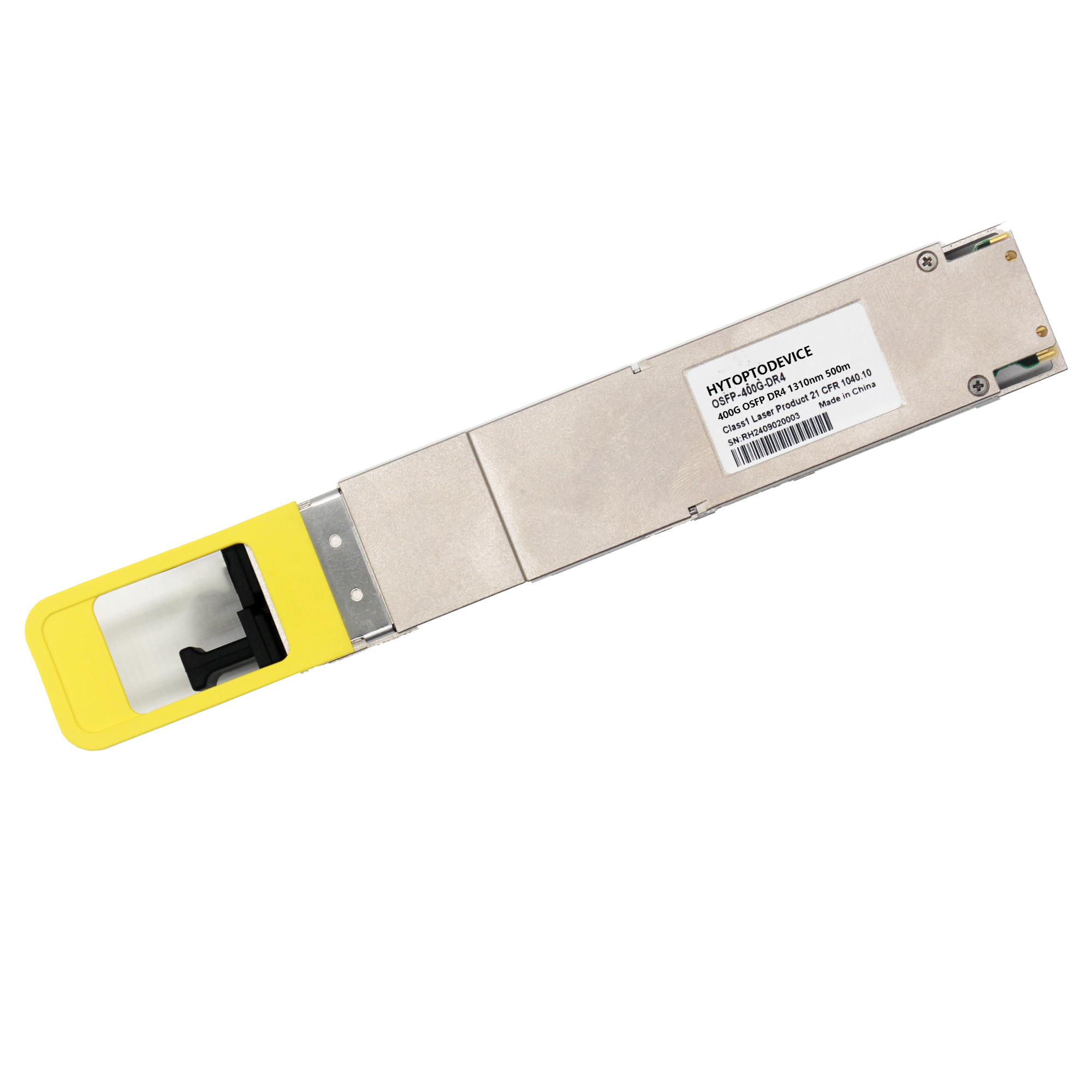

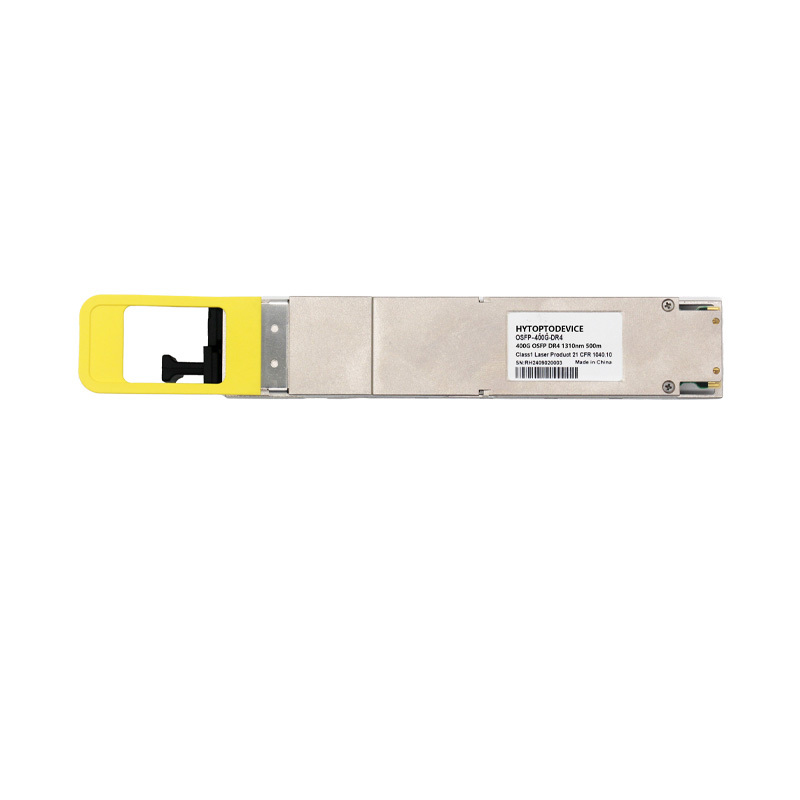

The HYTOPTODEVICE Flat Top OSFP-400G-DR4 is 100% compatible with the following OSFP-RHS (Riding Heat Sink) ports:
ConnectX-7 NICs: * CX713106A-ADOT (Single-port OSFP 400G)
CX713105A-ADOT (Single-port OSFP 400G)
BlueField-3 DPUs: * MBF3R142A-ASBT (400G OSFP DPU)
MBF314A-ASOT (400G OSFP DPU)
Arista 7060X4 Series: While switches usually use "Finned" tops, some high-density Arista configurations in specialized server chassis require Flat Top modules to clear mechanical obstructions.
Intel® E810-CQDA2 (OSFP Variant): Specialized 400G OSFP adapters for data centers.
Certain Edgecore or Delta switches with shallow-depth OSFP cages designed for external heat dissipation.
Spine-Leaf Fabric: Serving as the core interconnect between Spine and Leaf nodes in 400G switch architectures.
400G to 4x100G Breakout: Supports splitting one 400G port into four independent 100G-DR links via MPO-12 breakout cables for flexible multi-rate equipment mixing.
Open Networking & White Box Switches: Fully compatible with switches running SONiC or other open-source NOS, significantly reducing Total Cost of Ownership (TCO).
AI/ML Computing Interconnects: Providing stable, high-speed single-mode connectivity for GPU nodes within a 500-meter range.
| Generic Compatible | OSFP-400G-DR4 | Vendor Name | HYTOPTODEVICE |
| Form Factor | OSFP | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Distance | 500m |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 APC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 1310nm EML | Receiver Type | PIN |
| TX Power | -2.9~+4.0dBm | Receiver Sensitivity | < -4.4dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 10W |
| Protocols | OSFP MSA, IEEE 802.3bs | Application | 400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects |
HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.
Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.
Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.
Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.
24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.
Carrier-Grade Quality. Factory-Direct Control. Rapid Response.
Quality Certification & Compliance：
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
