Dell GP-SFP-10GBX-D-40 Compatible 10G SFP+ BiDi Transceiver 10GBASE-BX40-D (SMF, 1330nm-TX/1270nm-RX, 40km, Simplex LC, DDM)
Product Overview
HYTOPTODEVICE Dell GP-SFP-10GBX-D-40 Compatible 10G SFP+ BiDi Transceiver is a commercial grade 10G SFP+ BiDi single-mode optic, built for 40km point-to-point transmission over single strand OS2 single mode fiber.
• Wavelength: Tx1330nm/Rx1270nm (Match Dell GP-SFP-10GBX-U-40 standard BiDi pairing)
• Interface: Standard LC simplex connector
• Transmission Distance: Stable 40km @10Gbps SMF OS2
Compliant with Hot-Pluggable SFP+ MSA, SFF-8472,SFP-8431, IEEE 802.3ae and RoHS standards and fully DDM/DOM support, Delivering high-speed performance with optimized power efficiency, this single-strand 10G SFP+ BiDi Transceiver is the ideal solution for cross-campus backbones, metropolitan area network (MAN) rings, and long-range data center interconnects (DCI). We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.
Key Technical Specifications
Our 10G SFP+ BiDi Transceiver is factory-calibrated and fully tested for optical stability, low bit error rate and consistent interoperability. Adopting high-quality DFB laser and PIN receiver chips, it supports real-time DDM monitoring and safe hot-swappable operation. Below full parameter table matches Dell GP-SFP-10GBX-D-40 BiDi standard, zero compatibility risks after switch firmware upgrades.
| Dell Compatible |
GP-SFP-10GBX-D-40 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1330nm/RX1270nm |
Max Distance |
40km |
| Connector |
Simplex LC |
Transmitter Type |
1330nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-1.0~+5dBm |
Receiver Sensitivity |
< -15dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Pairing Guidance
Single-strand BiDi optical modules rely on reverse wavelength matching to implement two-way communication, and this 10G SFP+ BiDi Transceiver follows standard Dell pairing specifications. The HYTOPTODEVICE Dell GP-SFP-10GBX-D-40 module (Tx1330nm/Rx1270nm) must be paired with GP-SFP-10GBX-U-40 (Tx1270nm/Rx1330nm) to build a valid 40km 10G fiber link. Installing two identical D-40 modules will result in complete link failure. To avoid on-site deployment errors, HYTOPTODEVICE provides pre-tested and fully matched module pairs for all bulk orders of this 10G SFP+ BiDi Transceiver.

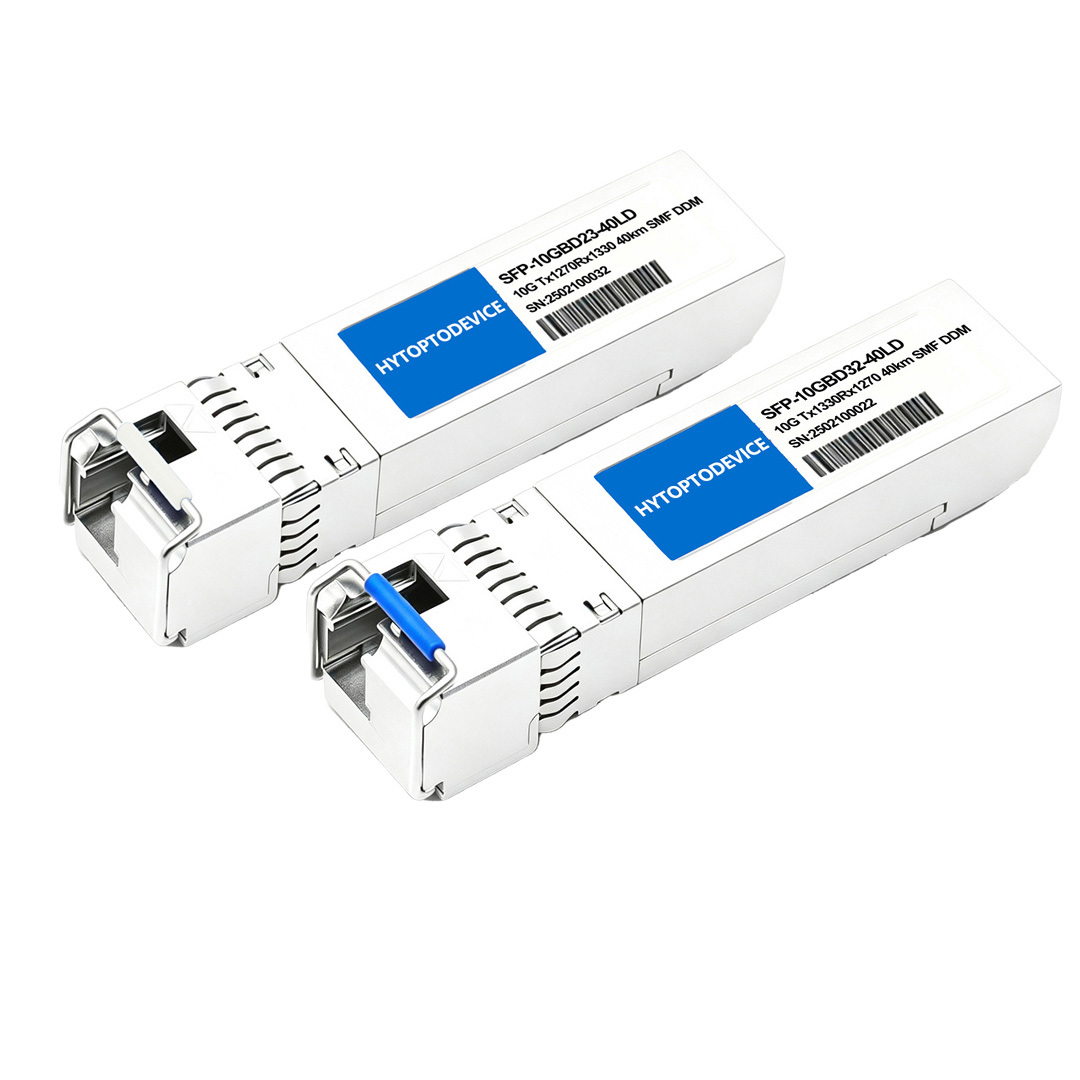

The Required Matched Pairs here: 10G SFP+ BiDi Tx 1270nm / Rx 1330nm 40km module
Full Compatibility List & Supported Network Hardware
1.Dell Native Compatibility
This HYTOPTODEVICE 10G SFP+ BiDi Transceiver realizes zero-configuration plug-and-play operation on mainstream Dell network devices, no CLI setup or firmware upgrade required, fully matching GP-SFP-10GBX-D-40 industrial standards. Compatible Dell device models are listed below:
1. Dell EMC PowerSwitch Series Switches
S3048-ON, S4048-ON, S5048-ON, S6000-ON, S5212F-ON, S5224F-ON, S5248F-ON, S5296F-ON
2. Dell N-Series Enterprise Switches
N2048, N3024, N3048, N4032, N4064 series 10G uplink switches
3. Dell Z-Series Core Data Center Switches
Z9100, Z9264 high-density 10G/40G core switching devices
4. Dell Enterprise Routers & Security Gateways
Dell EMC SR-series routers and enterprise security gateway devices supporting SFP+ 10G fiber expansion
2.Multi-Brand Cross Compatibility
Built to universal SFP+ MSA standards, HYTOPTODEVICE’s Dell-compatible SFP+ 10G BiDi 40KM Transceiver unlocks OEM vendor lock-in for hybrid multi-vendor metro networks.
- Open-Brand (Plug-and-Play): Fortinet, Ubiquiti, MikroTik, D-Link, Zyxel and other open switches
- Locked-Brand (Custom Coding): Cisco, H3C, Huawei, Dell, Juniper and more, fully compatible with latest Dell OS firmware
3.Free Custom EEPROM Re-Flash Service
Complimentary permanent EEPROM rewrite for all bulk orders of SFP+ 10G BiDi 40KM Transceiver. Upgrade Dell OS or migrate modules to other brand racks; our team re-codes firmware free of charge to maintain stable 40km single-fiber bidirectional links for evolving multi-vendor metro architectures.
Primary Application Scenarios
Cost-efficient 10G SFP+ BiDi Transceiver tailored for commercial long-distance single-fiber 10G networking, covering enterprise, campus and ISP scenarios.
1. Dell switch long-range 10G uplink deployment, saving fiber core resources with single-strand 10G SFP+ BiDi Transceiver
2. Cross-building enterprise campus 40km 10G interconnection using high-stability 10G SFP+ BiDi transceiver
3. Commercial outdoor cabinet long-distance 10G signal transmission with reliable 10G SFP+ BiDi Transceiver
4. ISP last-mile broadband access and remote base station 10G networking with cost-effective 10G SFP+ BiDi optic
5. Enterprise 10G structured cabling optimization, lowering project costs via single-fiber 10G SFP+ BiDi Transceiver deployment
Connectivity Solutions(Applications)
1.Switch-to-Switch 10G BiDi Single Fiber Uplink
Deploy paired BiDi transceivers between core and aggregation switches for single-fiber 10G uplinks, saving fiber resources for campus expansion and datacenter stacking projects.
2.Switch-to-10G SFP+ NIC Server Long Distance Link
Create single-fiber high-speed links between core switches and server NICs, eliminating gigabit bandwidth bottlenecks for cloud storage and high-performance workstations.
3.Enterprise 10G Single Fiber Structured Cabling System Layout
Perfectly matched with OS2 simplex single-mode structured cabling, realizing end-to-end 10G transmission across access, aggregation and core layers for office parks and commercial buildings.
Features | Maximized Fiber Utilization
Doubling Fiber Capacity: Dell-Compatible 10G SFP+ BiDi Transceiver 40km
This Dell compatible 10G SFP+ BiDi Transceiver achieves bidirectional 10G transmission via a single fiber strand. Replacing traditional dual-fiber cabling layouts, it significantly boosts existing fiber utilization, saves 50% physical fiber resources, and delivers cost-efficient stable 40km long-reach links for layered Dell metro core-to-access network construction. Compact SFP+ form factor, low power consumption and hot-swappable design simplify field deployment and lower long-term cabinet OPEX.
FAQ
Q1: Why the whole optical link fails though two ends are equipped with brand-new 40km BiDi transceivers?
A: The most common root cause is inconsistent wavelength modules deployed on two ends. Single-fiber BiDi links demand matched TX/RX wavelength pairs for bidirectional communication. HYTOPTODEVICE wavelength-marked 10G SFP+ BiDi Transceiver adopts clear visual identification to prevent mismatched installation on Dell enterprise aggregation links.
Q2: How to manage port records for BiDi transceivers inside dense patch panels without messy network documentation?
A: Traditional dual-fiber recording templates cannot adapt to single-port alternating transmit/receive wavelength design, which brings heavy labeling workload. HYTOPTODEVICE wavelength-distinguished 10G SFP+ BiDi Transceiver simplifies single-port filing work for high-density structured cabling projects.
Q3: High bit error rates keep appearing while real-time optical power readings stay within normal range, what triggers this issue?
A: Long-distance 40km single-mode transmission accumulates chromatic dispersion on 1270nm and 1330nm bands, distorting 10G data signals and generating BER faults despite acceptable light intensity. HYTOPTODEVICE dispersion-corrected 10G SFP+ BiDi Transceiver optimizes signal integrity for long-span campus backbone transmission.
Q4: Why a single fiber break cuts off the whole backhaul ring network completely?
A: BiDi technology aggregates uplink and downlink data onto one fiber strand, leaving no spare physical fiber for quick fault recovery. HYTOPTODEVICE single-fiber ring applicable 10G SFP+ BiDi Transceiver helps network designers build supplementary backup fiber architectures for data center backhaul deployment.
Q5: Only upstream data gets packet loss when fiber cables are slightly bent inside cable trays, while downstream traffic runs normally?
A: Two BiDi working wavelengths carry different bending loss sensitivity; 1330nm signals attenuate faster under micro-bending conditions and create unbalanced link performance. HYTOPTODEVICE dual-wavelength balanced 10G SFP+ BiDi Transceiver minimizes asymmetric signal loss for indoor cable tray networking scenarios.
Q6: Can I deploy these 40km BiDi transceivers alongside existing CWDM optical modules within the same fiber bundle?
A: Co-location will trigger severe signal interference. The BiDi 1270/1330nm wavebands overlap standard CWDM grid spectrum, requiring costly dedicated filters to isolate signals. HYTOPTODEVICE independent waveband 10G SFP+ BiDi Transceiver avoids cross-channel signal conflict for multi-service fiber bundle layout.
Q7: Switch internal temperature rises sharply after installing batches of 40km BiDi optical modules, what’s the cause?
A: Long-reach 40km BiDi lasers consume higher operating power, generating extra heat inside SFP+ housings during continuous operation. HYTOPTODEVICE low-power heat-optimized 10G SFP+ BiDi Transceiver reduces thermal output for multi-port Dell switch deployment.
Q8: Is full 48-port filling supported when deploying this series of 40km BiDi transceivers on access switches?
A: Full-population deployment is not recommended. Stacked power consumption and heat accumulation will exceed the switch’s heat dissipation threshold and trigger automatic port shutdown. HYTOPTODEVICE low power draw 10G SFP+ BiDi Transceiver lowers overall thermal load for 48-port full-density switch layout planning.
Q9: Is it feasible to match Dell-compatible TX1270 modules with third-party TX1330 transceivers from different brands?
A: Physical layer communication can be realized based on industry standards, yet mixed-brand matching easily causes system identification faults and incomplete DDM diagnostic data. HYTOPTODEVICE cross-brand compatible 10G SFP+ BiDi Transceiver retains complete optical telemetry under multi-vendor hybrid network environments.
Q10: Old-generation fiber media converters fail to recognize inserted SFP+ BiDi modules completely, what leads to this incompatibility?
A: Outdated media converter hardware cannot match the power consumption and chipset specifications of long-reach 40km BiDi transceivers. HYTOPTODEVICE wide-chipset compatible 10G SFP+ BiDi Transceiver maintains stable identification on both new and mid-life fiber media converter devices.
Q11: The actual transmission distance only reaches 15km, is purchasing 40km BiDi transceivers an unnecessary cost waste?
A: It brings extra hidden costs. 40km-grade lasers output excessive optical power for short spans, requiring additional attenuators to avoid receiver saturation damage. HYTOPTODEVICE high-power laser 10G SFP+ BiDi Transceiver supports matched attenuator configuration for medium-distance enterprise short-span procurement projects.
Q12: Dark fiber operators charge extra rental fees for single-fiber BiDi links, what creates this extra cost?
A: BiDi modules occupy fixed exclusive wavelength pairs, limiting fiber operators’ ability to carry multiple clients’ business signals on the same fiber core. Cost-efficient HYTOPTODEVICE 10G SFP+ BiDi Transceiver cuts overall fiber rental expenses for enterprise industrial park single-fiber networking procurement.
