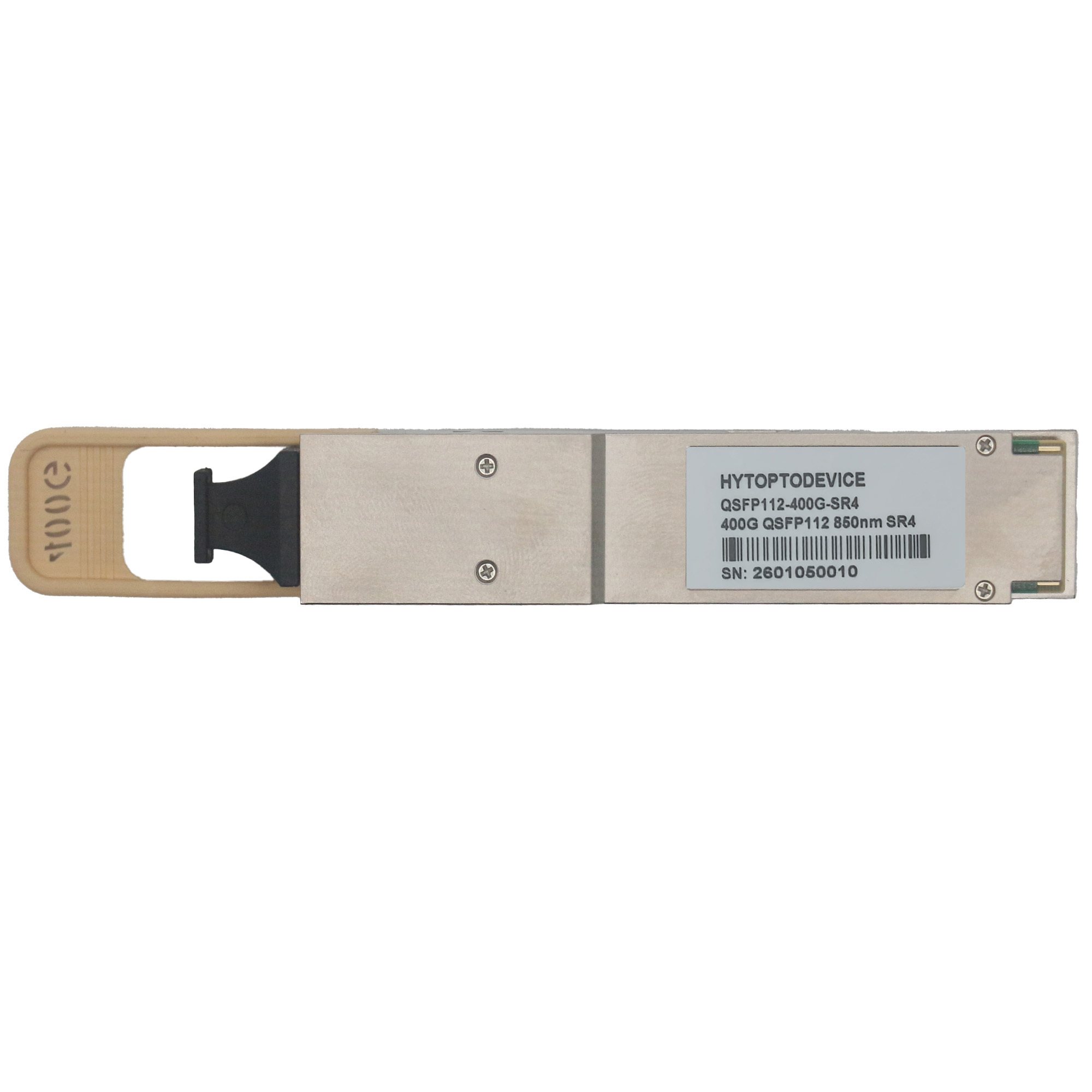

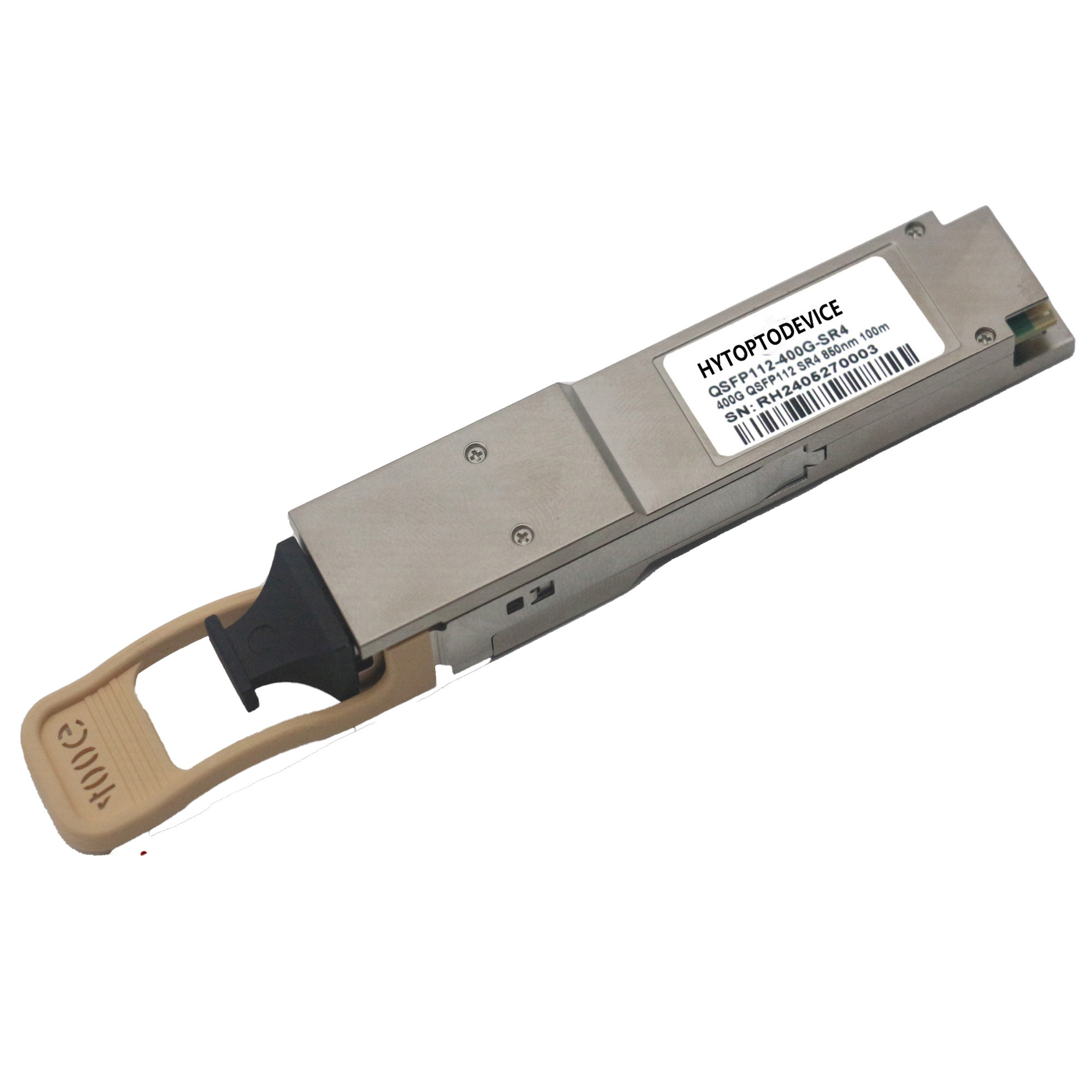

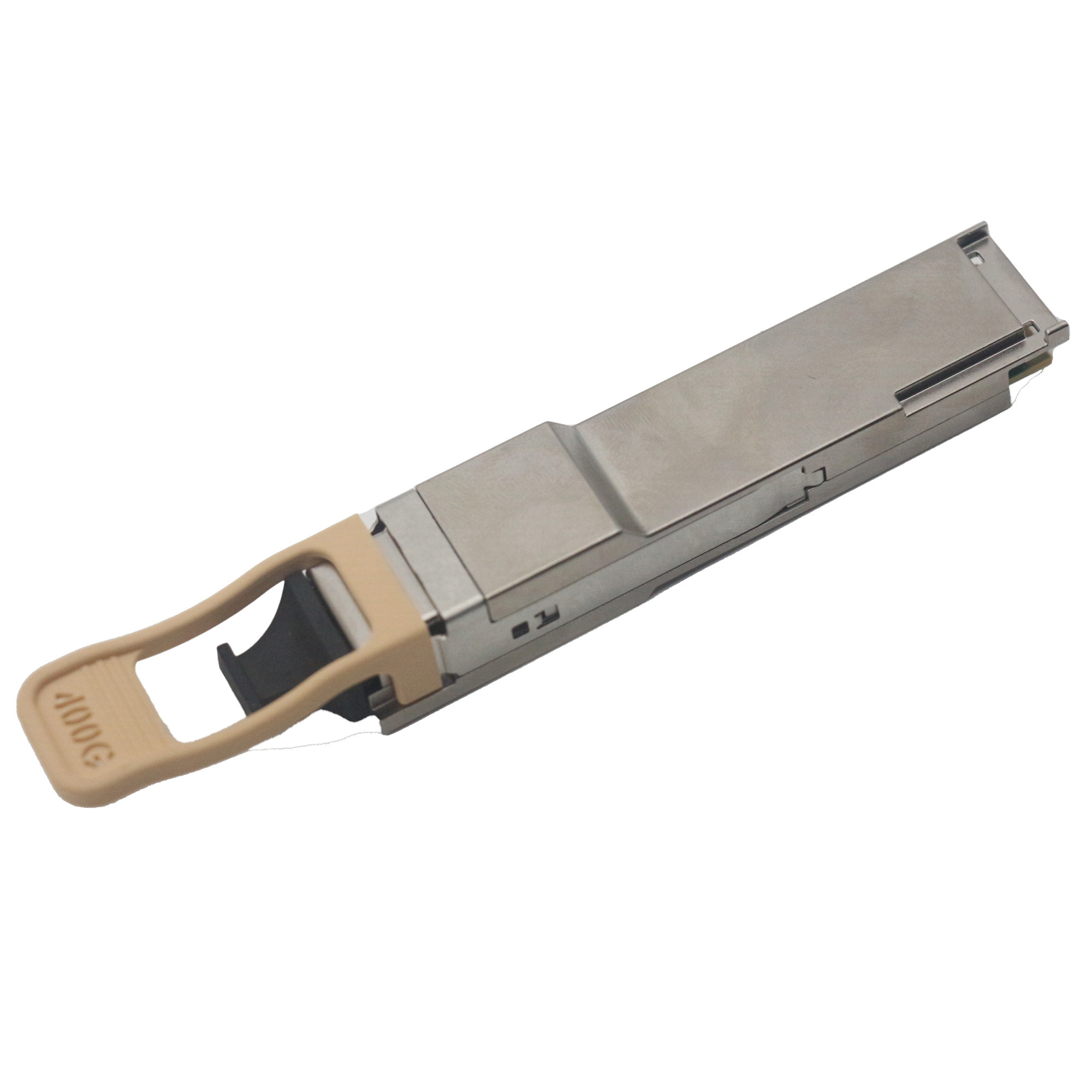

Cisco Q112-400G-SR4 Compatible 400GBASE-SR4 QSFP112 400G SR4 PAM4 850nm 100m MTP/MPO-12 MMF Optical Transceiver Module | HYTOPTODEVICE

The HYTOPTODEVICE Cisco Q112-400G-SR4 pluggable transceiver is uniquely coded and tested for flawless integration with:

• Cisco Nexus 9000 Series: High-density 400G/800G leaf-spine switches supporting QSFP112 ports.

• Cisco 8000 Series Routers: Optimized for line cards with 112G SerDes architecture.

• AI & RoCE Networking: Ideal for ConnectX-7 NICs and Cisco-based AI compute pods requiring low-latency QSFP112 interconnects.

• Operating Systems: Fully supported in Cisco NX-OS and IOS XR, providing native Digital Optical Monitoring (DOM) for real-time laser bias, temperature, and power tracking.

• 800G to 2x400G Breakout Solutions: Connecting 800G OSFP/QSFP-DD ports to two HYTOPTODEVICE QSFP112 400G SR4 modules using splitter cables.

• Low-Latency AI Cluster Interconnects: Providing high-speed 400G short-reach links for GPU-to-Switch communication in RDMA (RoCE v2) environments.

• Next-Gen Leaf-Spine Scaling: Leveraging 112G SerDes efficiency to reduce the thermal footprint of 400G data center fabrics.

• Short-Reach MPO-12 MMF Patching: Reliable 100m OM4 transmission for high-density intra-rack and rack-to-rack cabling.

Connectivity Solutions(Applications):

Scenarios 1:400G-to-400G Link for Switch-to-Switch


Scenarios 2:400G-to-400G Link for Switch-to-Server

Scenarios 3:800G-to-two 400G Links for Switch-to-Switch


Scenarios 4:800G-to-4x 200G Links for Switch-to-Server

FAQ for Cisco 400G Transceiver Q112-400G-SR4  QSFP112 Fiber Module

Q1:What is Q112-400G-SR4? A:The 400G QSFP112 SR4 is a hot pluggable optical transceiver module with a speed of 400Gbps, a wavelength of  850nm, and a transmission distance of up to 100m with MPO-12,OM4 MMF. It is ideal for data centre, 400G Ethernet and Infiniband Interconnects.

Q2:What is the maximum transmission distance of the 400G QSFP112 SR4 transceiver?A:HYTOPTODEVICE QSFP112 400G SR4 module supports the maxium transmitting distance of up to 100m with MPO-12, OM4 MMF

Q3:What fiber connector is required for the HYTOPTODEVICE QSFP112-400G-SR4?A:The 400G QSFP112 SR4 module uses an MPO-12 connector with MMF.

Q4:Does the HYTOPTODEVICE QSFP112-400G-SR4 require FEC?A:Yes. According to the IEEE 802.3db standard, Host KP4 FEC must be enabled on the Cisco switch port to achieve the 100m distance with a reliable Bit Error Rate (BER).

Q5:Does the HYTOPTODEVICE QSFP112-400G-SR4 support breakout to 100G?A:No.the Q112-400G-SR4 uses 4x100G PAM4,Standard 100G-SR4 uses 4x25G NRZ modulation. their modulation is different.Unless the 100G SR use the  100G-SR1 (PAM4) modules, and the switch must support the appropriate Gearbox/FEC settings in EOS.

Q6:Where to buy 400G QSFP112 SR4 optical transceiver?A:There are many factories that produce and sell 400G  fiber optical modules, but 400G optical transceiver manufacturer china HYTOPTODEVICE is the excellent provider: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery, and quick response.

Q7:The link is "Up" but I have high packet loss. Why? A:There could be two reasons,1. Dirty connectors:tiny dust particles can obstruct signal transmission. Please use  fiber optic cleaner to clean the connector. 2. Fiber optic cable bending: avoid  severe bending of the fiber optic cable.

Q8:Is the 400G QSFP112 SR4 backward compatible with lower-speed modules,such as 100G?A: Yes. QSFP112 400G SR4 uses parallel fiber (MPO-12). Using an MPO-to-4xLC breakout cable, you can link it to four 100G-SR (PAM4) transceivers.

 Q9:How do HYTOPTODEVICE ensure 400G QSFP112 SR4 module compatibility with network switch?A:Ensuring 100% compatibility, optical transceiver modules must be coded to match the switch's requirements. 400G Optical Transceiver Manufacturer China HYTOPTODEVICE was equipped with various high-speed switch,the brands include such as Cisco,NVIDIA,Arista,Juniper. highly professional in coding equipment for various brands to ensure they are recognized and running in your  device.

Q10:Is Q112-400G-SR4 hot-swappable?A:HYTOPTODEVICE fiber transceiver modules are hot-pluggable, hot Pluggable QSFP112 MSA Compliant.you can plug or unplug the optical transceiver, while the device is powered on without damaging the hardware.

Q11:Why Choose HYTOPTODEVICE for  QSFP112-400G-SR4?A: High-Speed Optical Transceiver Manufacturer China HYTOPTODEVICE ensures that the Q112-400G-SR4 is coded and tested for full compatibility with major switch vendors (such as Cisco, Juniper, Arista, and huawei). They verify the EEPROM settings to ensure "plug-and-play" functionality without port-recognition errors.

Q12：Does it use MPO-12 or MPO-16？A:The 400G QSFP-DD SR4 uses MPO-12 connector. There are 4 transmit and 4 receive channels (8 fibers total). An MPO-12 connector is used, with the 4 middle fibers typically remaining unused.

Quality Assurance：Your Trusted Optical Transceiver Source

 HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration：

Others:
