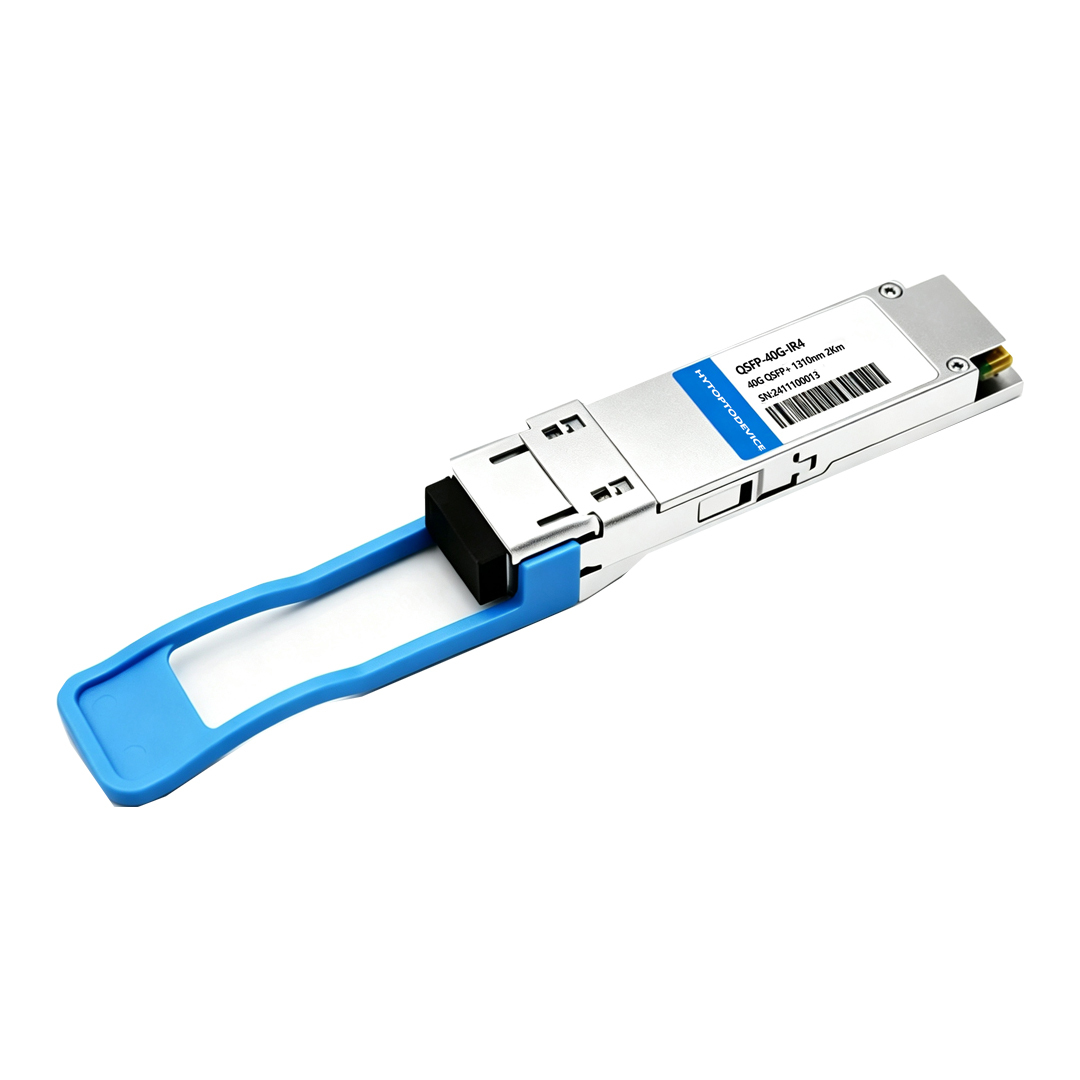

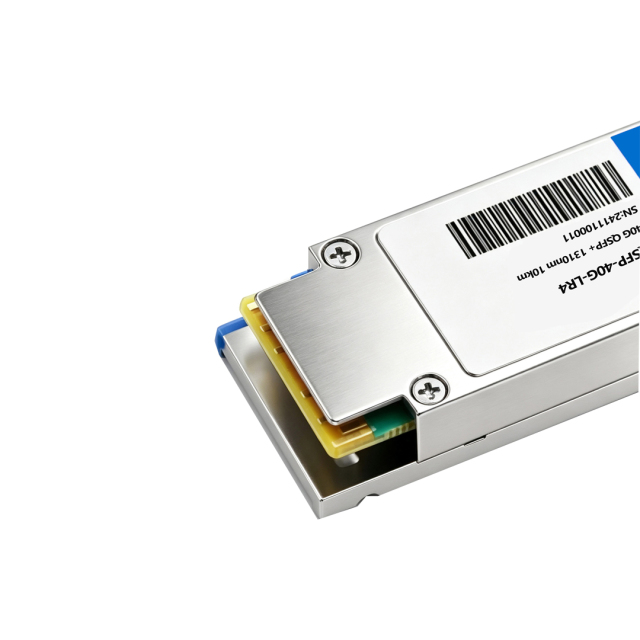

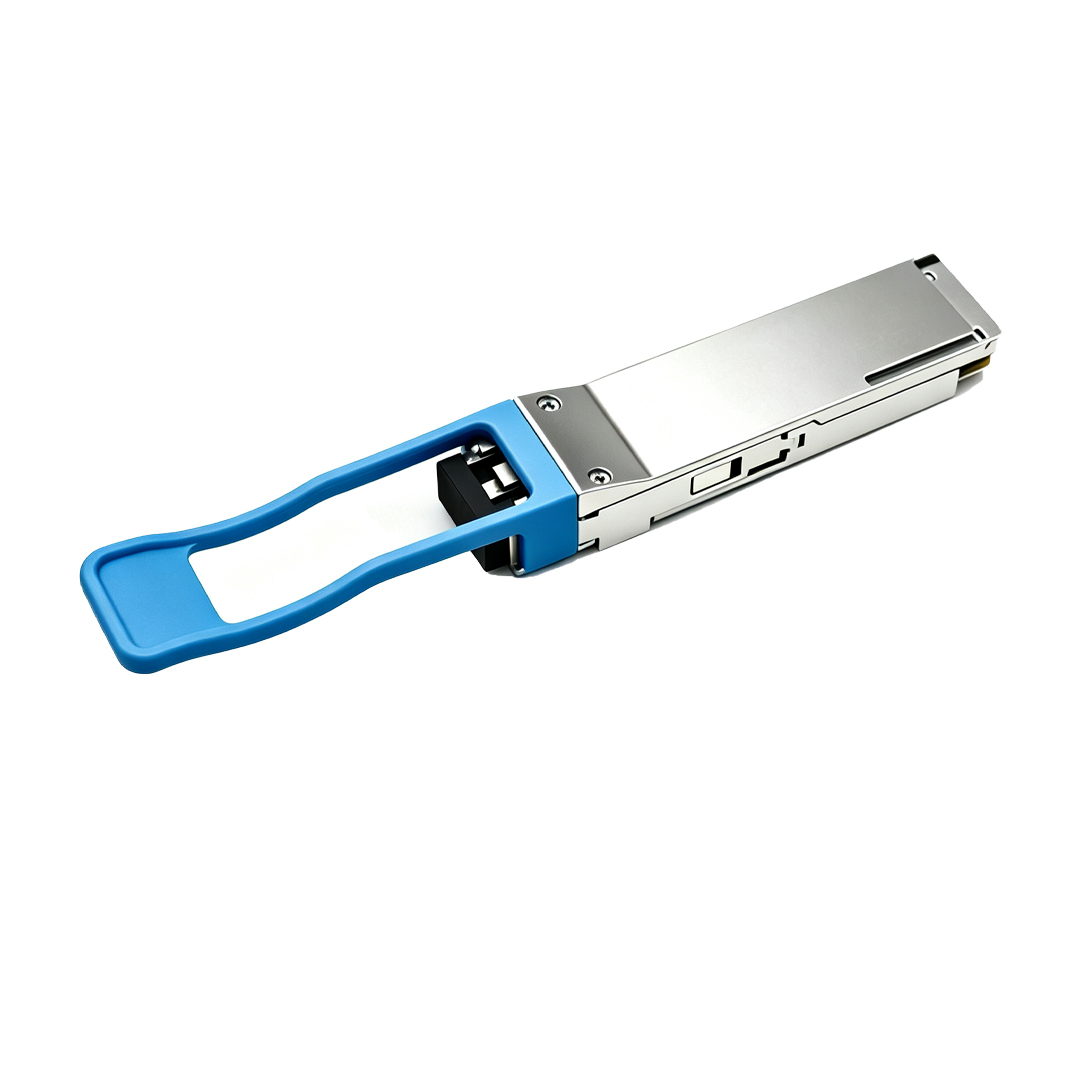

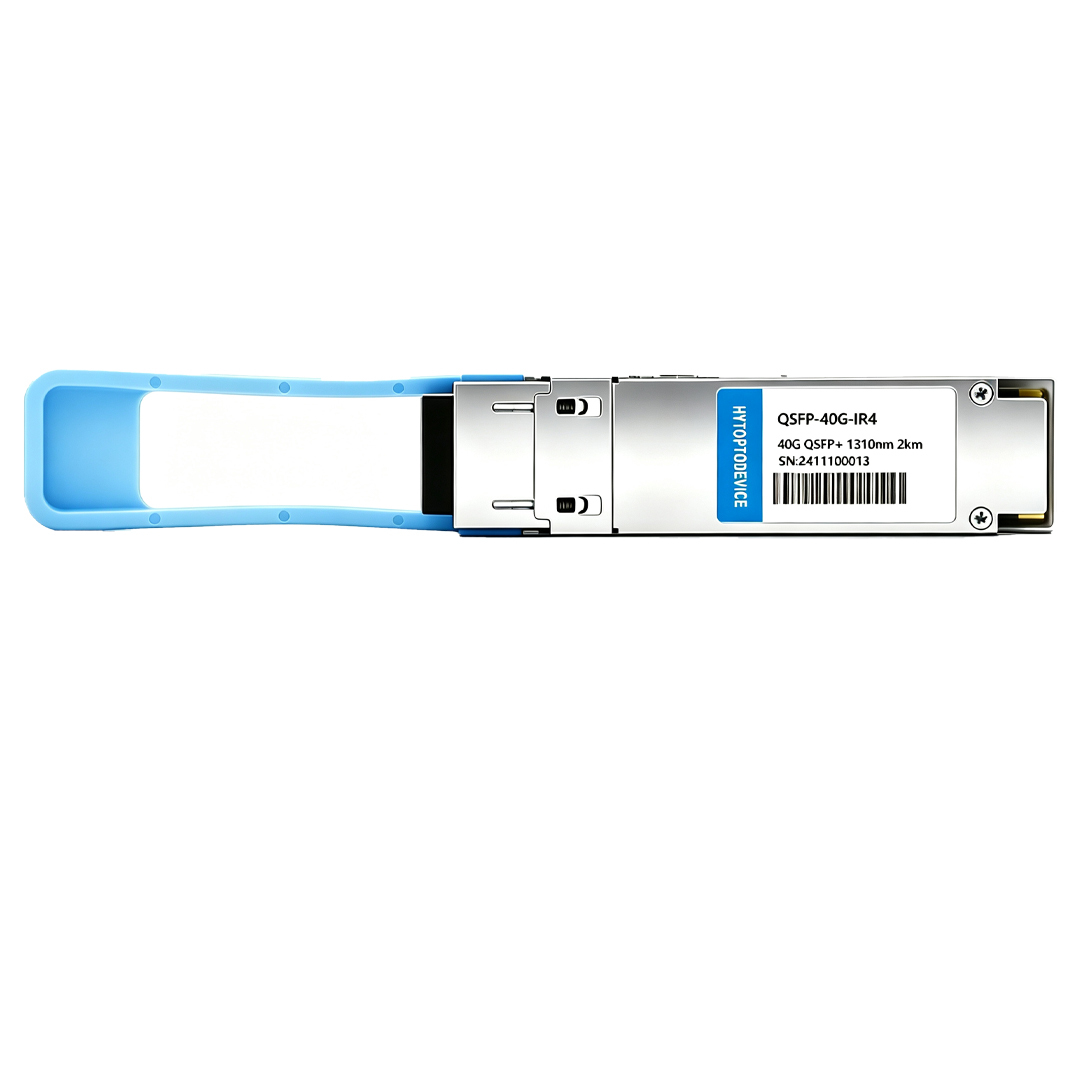

Huawei QSFP-40G-LR4-Lite  Compatible 40G QSFP+ LR4L Transceiver Module | 40GBASE-LR4L 1310nm(CWDM4） 2km Duplex LC SMF Bulk Factory Wholesale

• Operating Environment: 0°C–70°C commercial temperature range. Ensure cabinet ventilation to avoid optical power attenuation from overheating.

2.100% Compatibility Verified. Zero-Risk Deployment.

3.No Sampling. No Shortcuts. Every Unit Tested

While others rely on batch sampling, we test every single unit. Each QSFP+ transceiver is individually verified for optical compliance and continuous operational stability before it ships — so performance isn't a gamble, it's a guarantee. See the process yourself: take a virtual tour of our Test Center.

Q1: What causes unsupported transceiver alert on Huawei switch with 40G LR4L compatible module? A: Vendor lock or EEPROM coding mismatch is the root cause. HYTOPTODEVICE pre-programs proper coding for Huawei platforms; if the warning persists, verify port speed settings, upgrade switch firmware or contact us for module recoding service.

Q2: Can I pair HYTOPTODEVICE third-party 40G LR4L transceiver with OEM branded module on opposite fiber end? A: Yes, mixed-brand deployment is fully supported. Both sides only need to comply with 40GBASE-IR4/LR4 standard and use single-mode fiber, and different transceiver brands will not break the optical link.

Q3: Can Huawei compatible 40G LR4L transceiver split into 4×10G links with simple breakout cable? A: Simple breakout cable cannot split this 40G LR4L signal to 10G ports. Unlike SR4, its four 10G lanes share one fiber pair via WDM, so CWDM mux/demux or active media converter is required for 4×10G separation.

Q4: Does HYTOPTODEVICE 40G LR4L transceiver support DDM DOM alarm reporting on Huawei CloudEngine switches? A: This LR4L module fully supports standard DDM/DOM alarm functions. It outputs per-wavelength temperature, voltage, transmit and receive power data via standard MSA registers for your switch to read.

Q5: What fiber type is required to run Huawei QSFP-40G-LR4-Lite compatible 40G LR4L transceiver? A: This transceiver only works with standard single-mode fiber G.652 or G.657. Multimode fiber cannot support LR4L operation; multimode fiber is only designed for SR4 optical modules.

Q6: Can existing single-mode fiber infrastructure support future 100G network migration when using 40G LR4L transceivers? A: Your existing duplex single-mode fiber plant can be reused for 100G LR4 upgrade. The same fiber cabling is compatible with 100G LR4; you only need to upgrade switch ports and optical transceivers.

Q7: What fiber patch cable specifications match HYTOPTODEVICE 40G QSFP+ LR4L transceiver? A: You need duplex LC-LC OS2 single-mode patch or trunk cables. Both fiber ends must use LC connectors with UPC polish, which is the standard interface for this 40G LR4L module.

Q8: Can I reuse existing installed single-mode trunk cables for Huawei 40G LR4L optical links? A: Most existing single-mode trunk cables are reusable for this 40G LR4L link. Confirm they are duplex LC OS1/OS2 fiber and total insertion loss stays under the IR4 power budget before deployment.

Q9: How to verify HYTOPTODEVICE 40G LR4L transceiver is new original stock instead of counterfeit or refurbished? A: You can verify authenticity with serial traceability and factory test documentation. HYTOPTODEVICE provides 4-wavelength test reports, batch records and DOA warranty support to prove genuine new modules.

Q10: What compliance certifications come with HYTOPTODEVICE Huawei compatible 40G LR4L transceiver modules? A: Our 40G LR4L transceivers carry CE, FCC, RoHS and REACH certifications under ISO9001 controlled manufacturing. Contact HYTOPTODEVICE to request certification copies before bulk purchase.

Q11: Will HYTOPTODEVICE 40G LR4L transceiver performance degrade significantly after long continuous operation in data center? A: Slow per-lane aging is normal and trackable via DDM readings. Sudden performance drops are caused by fiber contamination, overheating or ESD damage rather than natural module aging.

Q12: Why is HYTOPTODEVICE 40G LR4L transceiver cheaper than original Huawei OEM optical modules? A: Our lower price comes from direct factory supply without OEM brand premium and multi-layer channel markup. HYTOPTODEVICE compatible modules deliver identical performance for standard 40GBASE-LR4L fiber links.

Q13: What RMA support will I get if my HYTOPTODEVICE 40G LR4L transceiver arrives DOA dead on arrival? A: HYTOPTODEVICE provides free DOA replacement within 30 days of receipt. Keep original packaging and test logs ready to speed up the RMA approval and replacement process.

Q14: Can I get free sample units of Huawei compatible 40G LR4L transceiver for pre-project compatibility testing? A: HYTOPTODEVICE offers discounted or qualified samples for bulk buyers, and sample cost can be credited back on your first large order. This lets you test compatibility on Huawei switches before full deployment.

Q15: What is the correct installation procedure for 40G QSFP+ LR4L transceiver into Huawei switch port? A: Align the module keyway and insert gently then latch into the port. Never force insertion, as misalignment may scratch the module internal contacts and damage the Huawei switch port.

Q16: How to troubleshoot down fiber link after installing HYTOPTODEVICE 40G LR4L transceiver on Huawei switch? A: Follow a fixed troubleshooting sequence to locate the root cause. Check module seating, LC connector cleanliness, TX/RX fiber polarity, fiber type, link distance, total insertion loss and DDM per-lane readings step by step.
