| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | GLC-EZX-SM-100 | |
| 2 | Arista Networks | SFP-1G-EZX-100 | |
| 3 | Huawei | eSFP-GE-ZX100-SM1550 | |
| 4 | Juniper | SFP-1GE-EZX-100 | |
| 5 | Brocade | E1MG-EZX-100 |

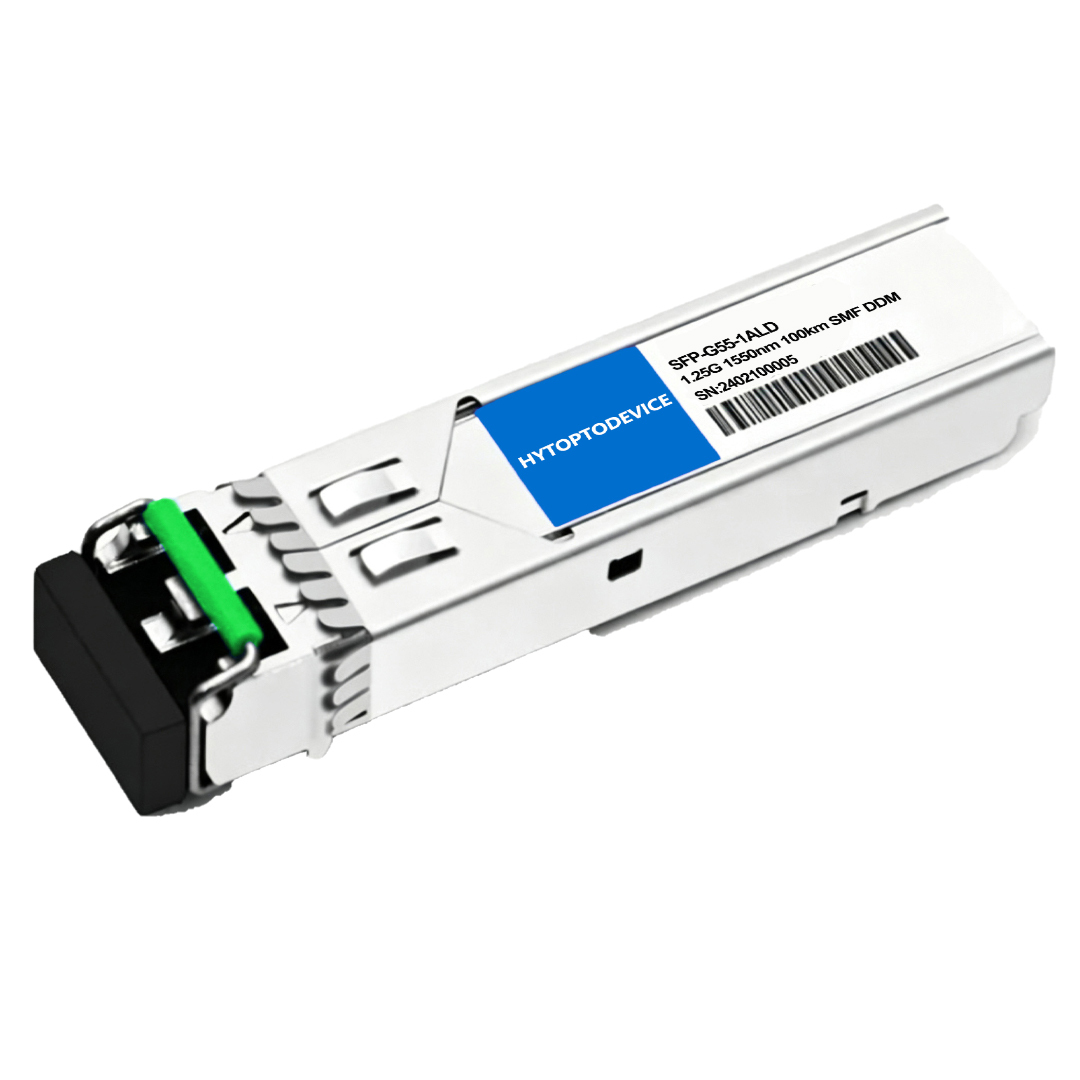

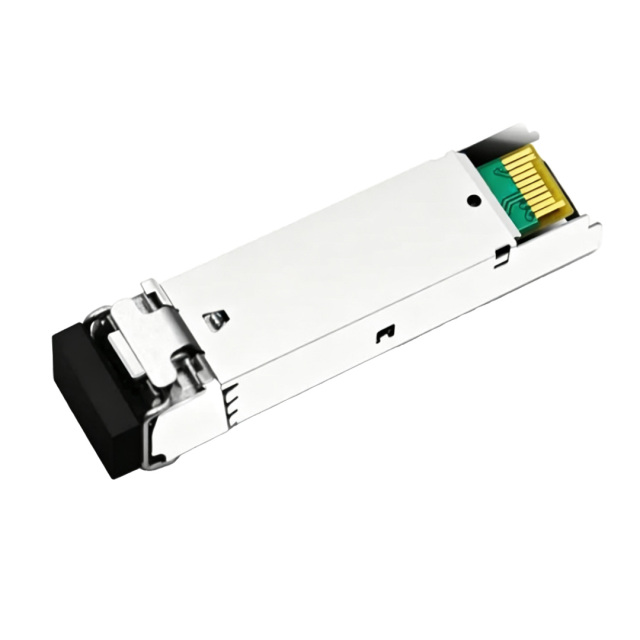

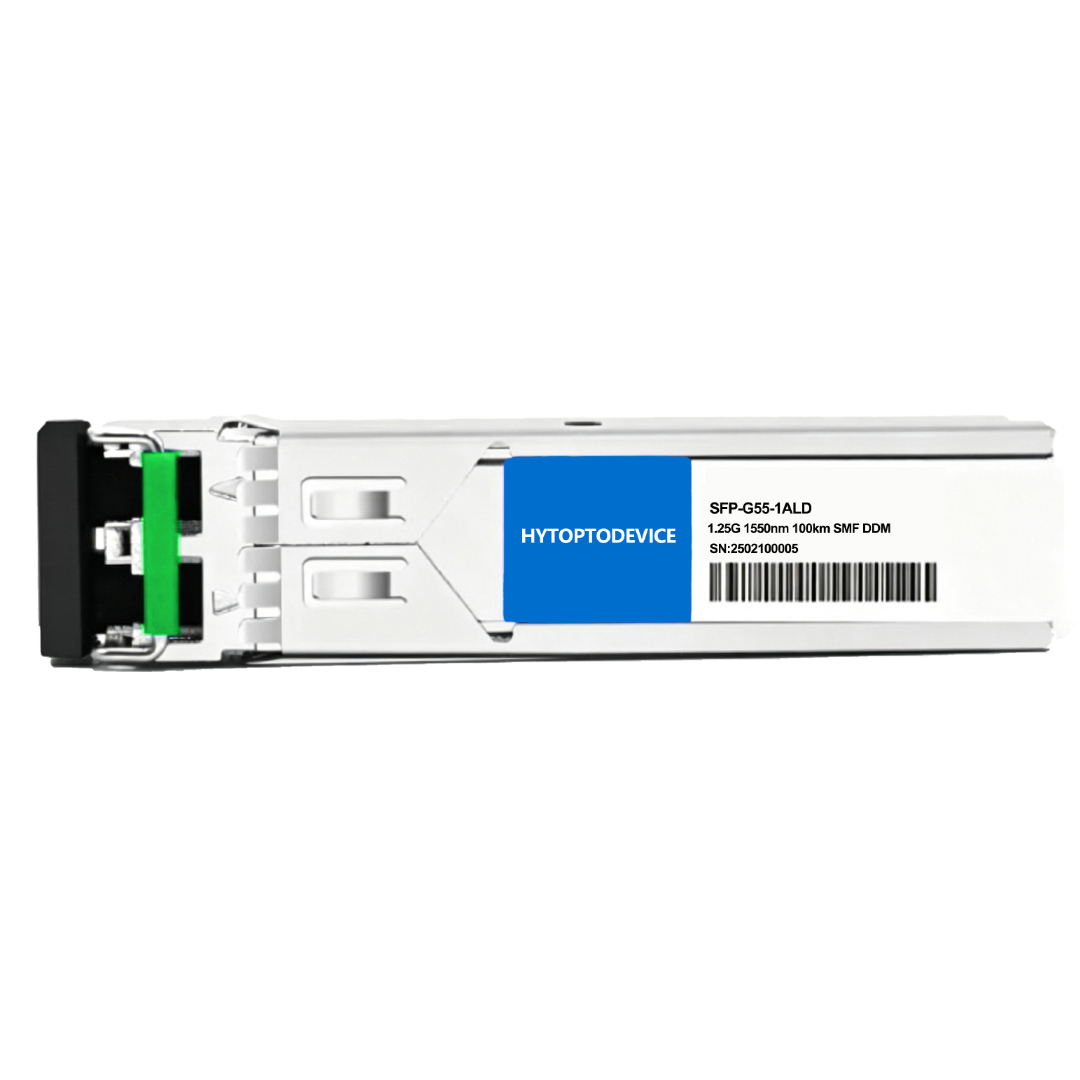

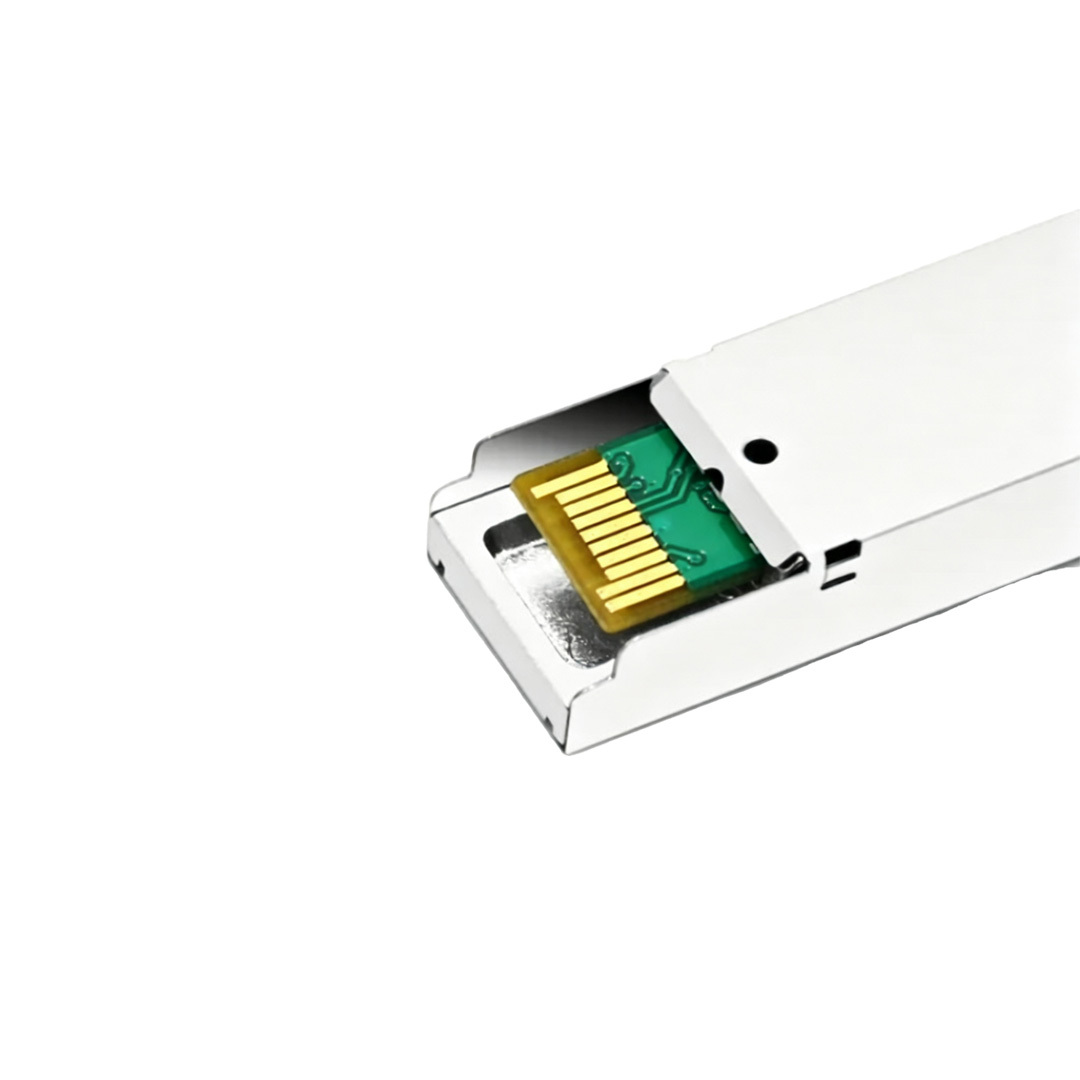

| Cisco Compatible | GLC-EZX-SM-100 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1550nm | Max Distance | 100km |
| Connector | Duplex LC | Transmitter Type | 1550nm DFB |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 0~+5dBm | Receiver Sensitivity | < -29.0dBm |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 | Operation Temperature | 0°C to 70°C (32 to 158°F) |
Full Compatibility List and Supported Devices of Fiber Optic Transceiver
One of the biggest advantages of third-party optical transceiver is their strong brand compatibility,which helps enterprises cut hardware costs without sacrificing performance.Our 1G SFP 100km optical transceivers are fully tested and certified to work seamlessly with the Cisco equipments:
Cisco Catalyst 2960 Series: WS-C2960-24TC-L, WS-C2960G-24TC-L, WS-C2960S-48FPD-L, WS-C2960X-24PD-L, WS-C2960XR-48FPS-I
Cisco Catalyst 3560 & 3650 Series: WS-C3560G-24TS, WS-C3560X-48T-S, WS-C3650-24TD-E, WS-C3650-48PD-S
Cisco Catalyst 3750 & 3850 Series: WS-C3750G-48TS, WS-C3750X-24T-S, WS-C3850-24T-E, WS-C3850-48P-S
Cisco Catalyst 9200 & 9300 Series: C9200-24T, C9200L-48P-4X, C9300-24T, C9300-48U
Cisco ME (Metro Ethernet) Series: ME-3400G-12CS, ME-3600X-24CX, ME-C3750-24TE
Cisco ASR & ISR Router Series: ASR 901, ASR 1001-X, ASR 9001, ISR 4331, ISR 4451-X
Cisco Nexus Series: Nexus 3048, Nexus 93180YC-FX
Main Application Scenarios of Fiber Connection Module
Ultra-Long-Haul Backhaul Networking: Connecting regional corporate offices, distributed campus networks, or government buildings spaced up to 100km apart without requiring intermediate signal regenerators.
Internet Service Providers (ISPs) & Telcos: Extending Gigabit Ethernet fiber links from central offices to remote aggregation points or rural broadband infrastructure.
Data Center Interconnect (DCI): Linking primary data centers with geographically separated backup or disaster recovery (DR) facilities.
Metropolitan Area Networks (MANs): Providing core high-bandwidth single-mode connections across municipal enterprise setups and smart city infrastructures.
Q1: What is the maximum distance supported by the Cisco GLC-EZX-SM-100 compatible SFP?
A1: It supports ultra-long-haul distances of up to 100 kilometers (62.1 miles) over standard single-mode fiber (SMF).
Q2: Do I need to use an optical attenuator with this 100km SFP module?
A2: Yes. If your actual fiber link loop is short (typically under 40–50km or experiencing less than 21dB of link loss), you must insert a 10dB to 15dB optical attenuator at the receiver side to prevent burning out or overloading the sensitive APD optical receiver.
Q3: Is the GLC-EZX-SM-100 hot-swappable?
A3: Yes, it is fully hot-pluggable. You can insert or remove the transceiver without shutting down the host switch or router.
Q4: What wavelength does the GLC-EZX-SM-100 use?
A4: It operates at a 1550nm wavelength, which is ideal for minimizing signal attenuation over long single-mode fiber spans.
Q5:Can I use this transceiver with standard multi-mode fiber (MMF) patches?
A5: No, it is strictly designed for Single-Mode Fiber (SMF) with a 9/125µm core size. It will not work over multi-mode fiber.
Q6: What is the difference between GLC-ZX-SM and GLC-EZX-SM-100?
A6: The GLC-ZX-SM typically supports distances up to 70km–80km, whereas the GLC-EZX-SM-100 features a more powerful laser and a more sensitive receiver engineered specifically to reach up to 100km.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
