Key Technical Specifications of E1MG-BXU-20 BiDi SFP Module
Professional Parameters of 20km Single Fiber Gigabit SFP Module

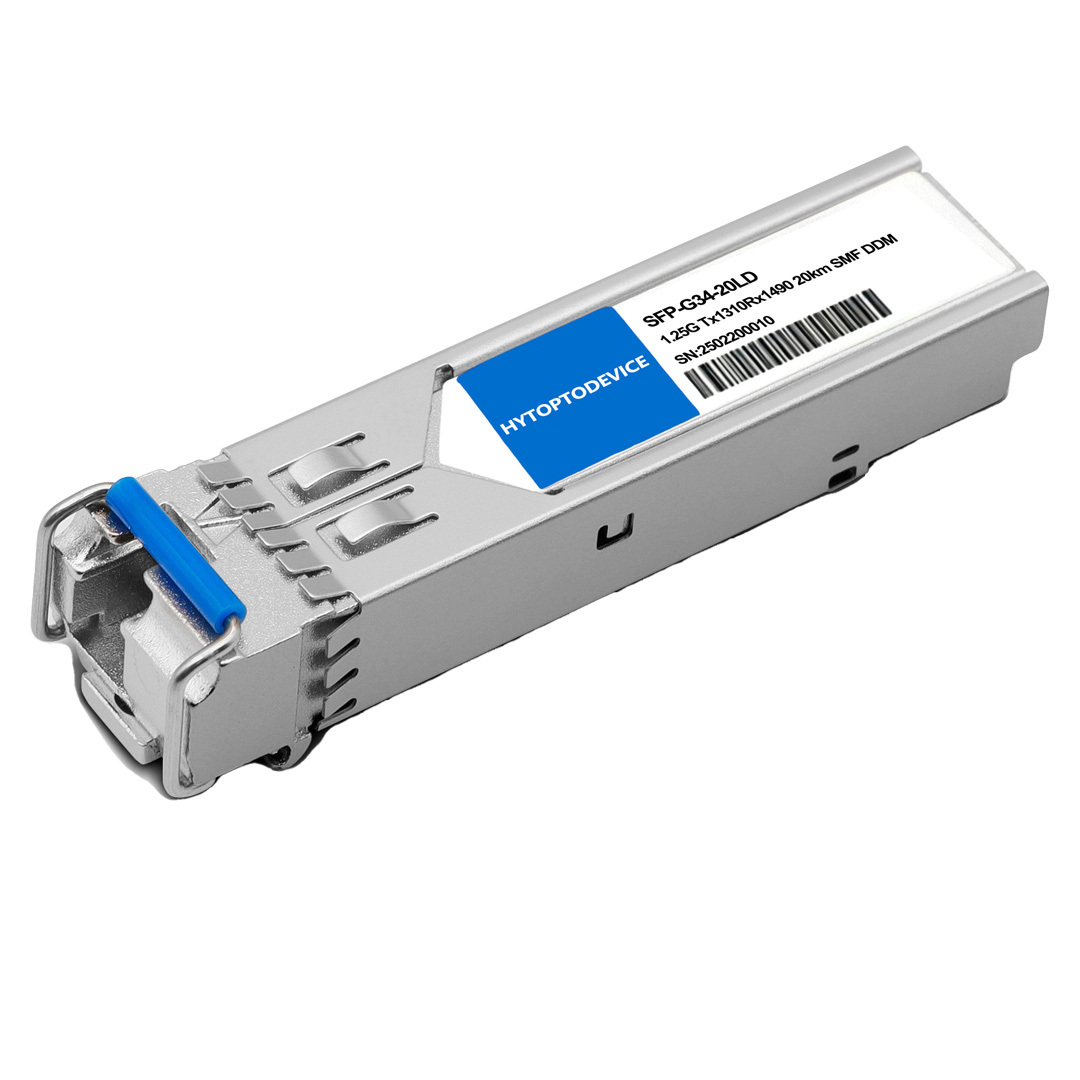

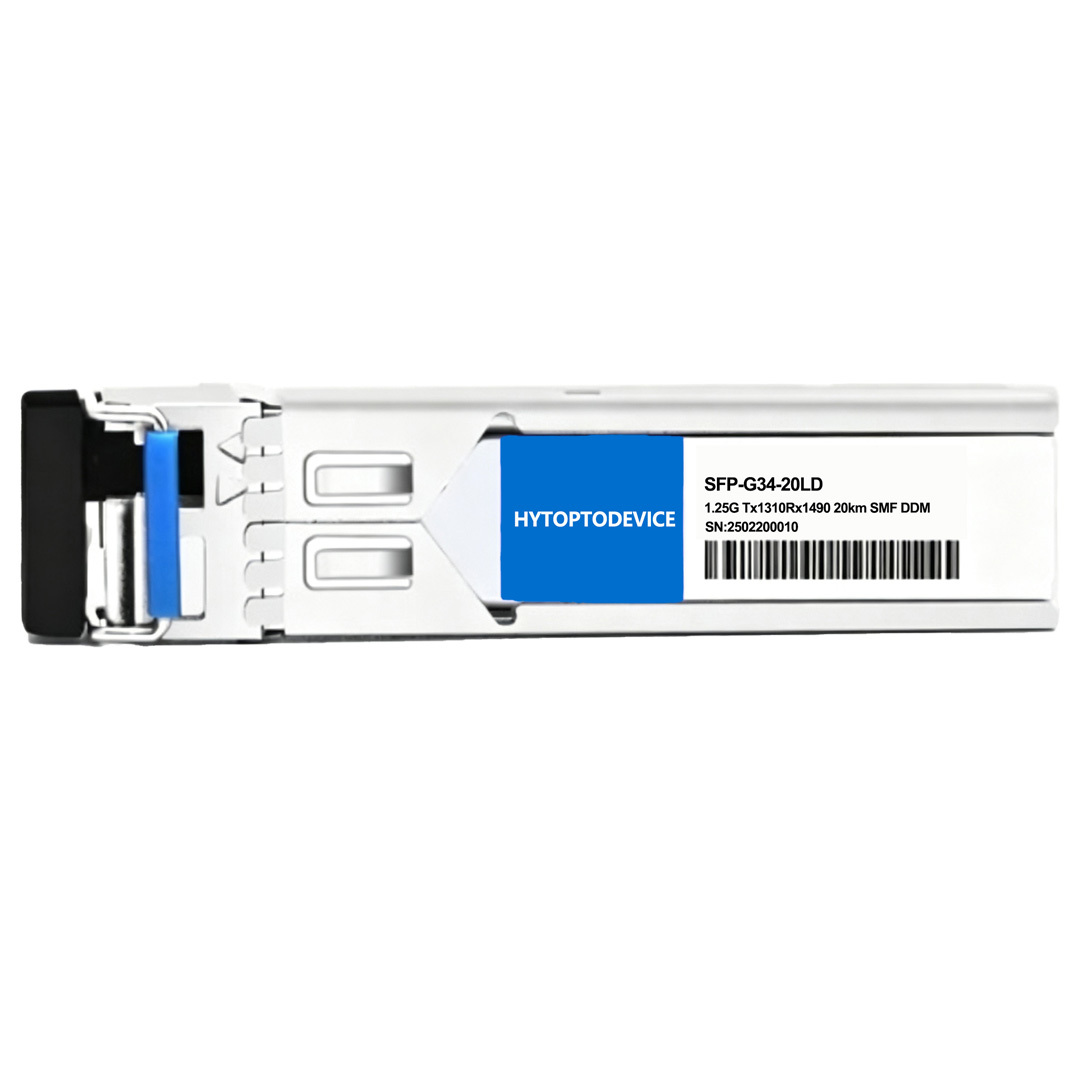

Below are standardized technical parameters of the HYTOPTODEVICE Brocade E1MG-BXU-20 BiDi SFP. All specifications comply with MSA and IEEE standards, ensuring stable 20km SMF transmission, consistent wavelength performance, and reliable DDM monitoring for official Brocade deployments.
| Brocade Procurve Compatible |
E1MG-BXU-20
|
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP |
Max Data Rate |
1.25Gbps |
| Wavelength |
TX1310nm/RX1490nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1310nm FP |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-9.0~-3dBm |
Receiver Sensitivity |
< -23.0dBm |
| Protocols |
SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Full Device Compatibility for E1MG-BXU-20 Bidirectional SFP Transceiver
1. Verified Brocade Device Compatible Models
This Brocade compatible BiDi SFP passes rigorous real-device verification to ensure true plug-and-play functionality. It works flawlessly on original Brocade OS firmware without errors, manual config, or firmware updates. Fully verified compatible Brocade devices include:
- Brocade Switch Series: ICX 6430, ICX 6450, ICX 7250, ICX 7450, FESX, FCX Series
- Brocade Router Series: NetIron CER, NetIron MLX Series
- Other Brocade Devices: Brocade media converters, access nodes and enterprise gateways
2. Multi-Brand Compatibility
Built on universal MSA protocols, this 1000BASE-BX simplex LC SFP offers broad compatibility with third-party hardware, including switches, routers and media converters from Cisco, Juniper, HPE, H3C, Alcatel-Lucent, D-Link and TP-Link.
Real-device test videos are available for bulk orders to verify stable compatibility and consistent link performance.
Common Application Scenarios for E1MG-BXU-20 BiDi SFP
Enterprise & Campus Networking Applications
This single-fiber BiDi SFP provides reliable, cost-saving solutions for enterprise Ethernet, campus LAN and data center infrastructure, addressing fiber shortages during upgrades and expansions.
- Campus building-to-building 20km fiber links
- Gigabit Ethernet enterprise backbone interconnection
- Data center single-fiber cabling and cable manager integration
- Telecom access network long-distance transmission
- Remote industrial and surveillance system connectivity
- Single-fiber cost-saving network reconstruction
Connectivity Solutions (Application Connection Diagrams)
1. Switch to Switch BiDi Fiber Connection
Pairing E1MG-BXU-20 with complementary downlink BiDi transceivers creates stable single-fiber connections between Brocade switches, maximizing fiber utilization in campus and enterprise core networks.
2. Switch to Media Converter Link Connection
It delivers stable gigabit uplink connectivity between Brocade switches and media converters, extending distances for remote campus access and enterprise branch expansion.
3.Switch Link with Cable Manager Integrated Wiring
Used with standard cable managers, it enables clean, standardized cabinet wiring, reducing clutter and simplifying maintenance and future upgrades.
FAQ For for HYTOPTODEVICE Brocade Compatible BIDI SFP Transceiver
Q1: Are Brocade E1MG-BXU-20 BiDi SFPs plug-and-play on ICX 7450 switches?
A: Yes. HYTOPTODEVICE E1MG-BXU-20 compatible BiDi SFPs have passed real-machine testing on Brocade ICX 7450 switches. They support automatic detection, normal DDM monitoring and stable transmission without alarms, meeting commercial network requirements.
Q2: Can E1MG-BXU-20 Tx1310nm/Rx1490nm pair with other brand BiDi modules?
A: Absolutely yes. This Brocade compatible BiDi SFP uses standard MSA wavelengths. It pairs perfectly with complementary Tx1490nm/Rx1310nm BiDi modules from other brands for stable single-fiber links with zero interference.
Q3: Do low-cost E1MG-BXU-20 replacements support DDM real-time monitoring?
A: All HYTOPTODEVICE E1MG-BXU-20 equivalent BiDi SFPs support full DDM/DOM monitoring per SFF-8472. You can check laser temperature, voltage and optical power via Brocade device management.
Q4: Is 20km single fiber BiDi SFP stable for long-term Brocade campus operation?
A: Our 20km BiDi SFP for Brocade uses high-quality FP lasers and sensitive PIN receivers. After 72-hour aging tests, it supports 24/7 stable, loss-free operation, ideal for long-running campus and enterprise networks.
Q5: Can E1MG-BXU-20 BiDi modules be used for Gigabit Ethernet uplink?
A: Fully applicable. This E1MG-BXU-20 compatible module is optimized for Gigabit Ethernet, supporting stable gigabit uplinks for enterprise and campus equipment and overcoming traditional cable distance limits.
Q6: Are commercial grade E1MG-BXU-20 BiDi SFPs suitable for data center wiring?
A: Absolutely suitable. With a standard 0°C to 70°C temperature range, this BiDi SFP adapts to data center environments, offering excellent thermal stability to avoid fluctuations and ensure long-term link reliability.
Q7: How to match wavelength pairs for E1MG-BXU-20 single fiber links?

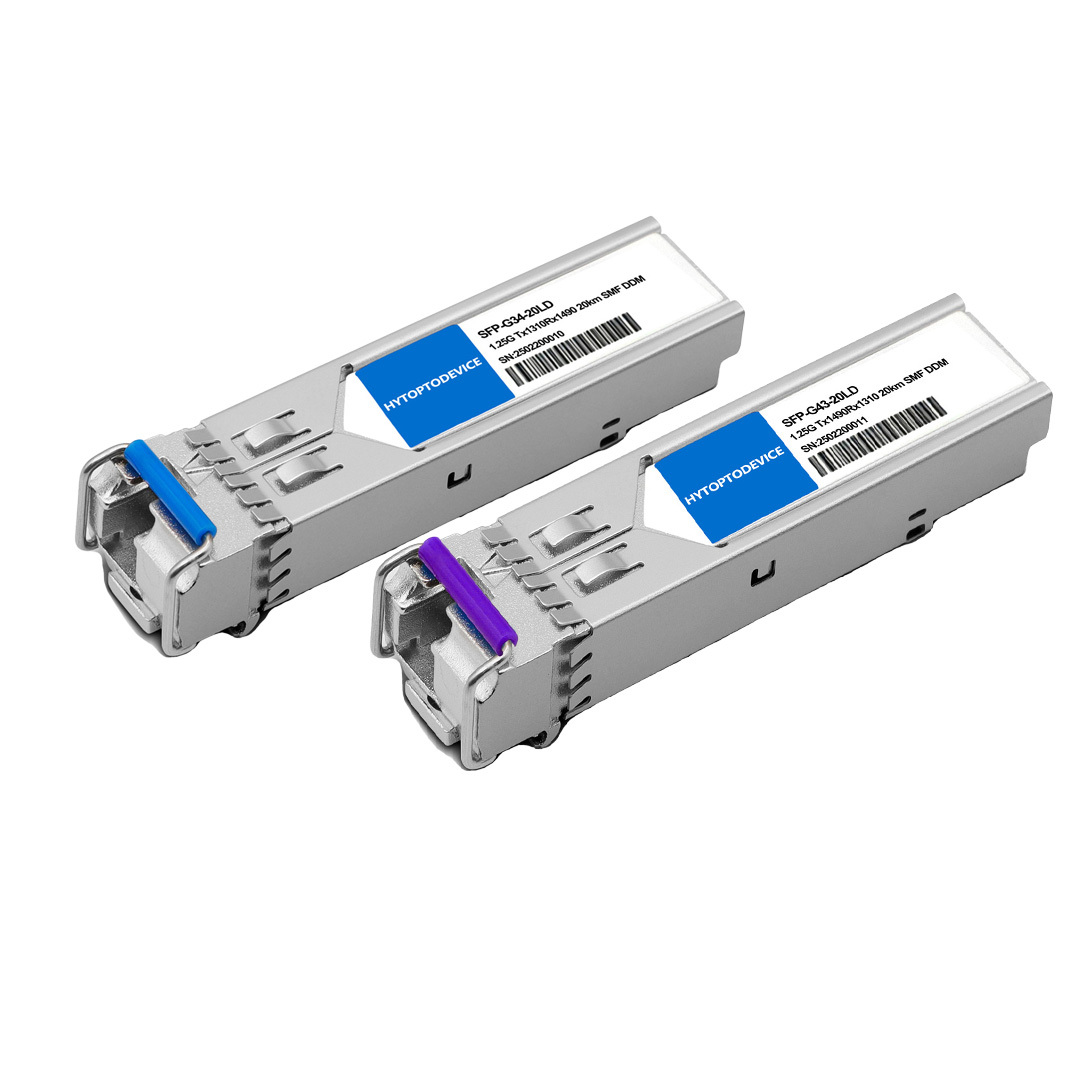

A: As an uplink BiDi module, E1MG-BXU-20 (Tx1310nm/Rx1490nm) must pair with complementary downlink transceivers (Tx1490nm/Rx1310nm). Proper pairing ensures low-latency bidirectional transmission.
Q8: What warranty and support come with Brocade compatible E1MG-BXU-20?
A: We provide a 3-year limited warranty and lifelong free technical support for all HYTOPTODEVICE E1MG-BXU-20 BiDi SFPs. Our team offers 24/7 remote help for compatibility, wavelength pairing and deployment troubleshooting.
Q9: Can E1MG-BXU-20 BiDi SFPs reduce enterprise fiber costs?
A: Yes. Unlike dual-fiber modules, this single-fiber BiDi SFP uses one fiber for both directions, saving 50% of fiber resources and cutting procurement, construction and maintenance costs.
Q10: Are MSA compliant E1MG-BXU-20 modules compatible with latest Brocade OS?
A: All HYTOPTODEVICE E1MG-BXU-20 BiDi SFPs comply with IEEE and MSA standards. Real-device tests confirm full compatibility with the latest Brocade OS, with no detection failures, bugs or alarms.
