Brocade 10G-SFPP-SR Compatible 10G SFP+ SR Optical Transceiver Module | HYTOPTODEVICE

What Is Brocade Compatible 10G-SFPP-SR Optical Transceiver?
SFP+ Transceiver | Brocade Compatible 10GBASE-SR  Optical Transceiver Module(MMF, 850nm, 300m, LC, DOM) | HYTOPTODEVICE

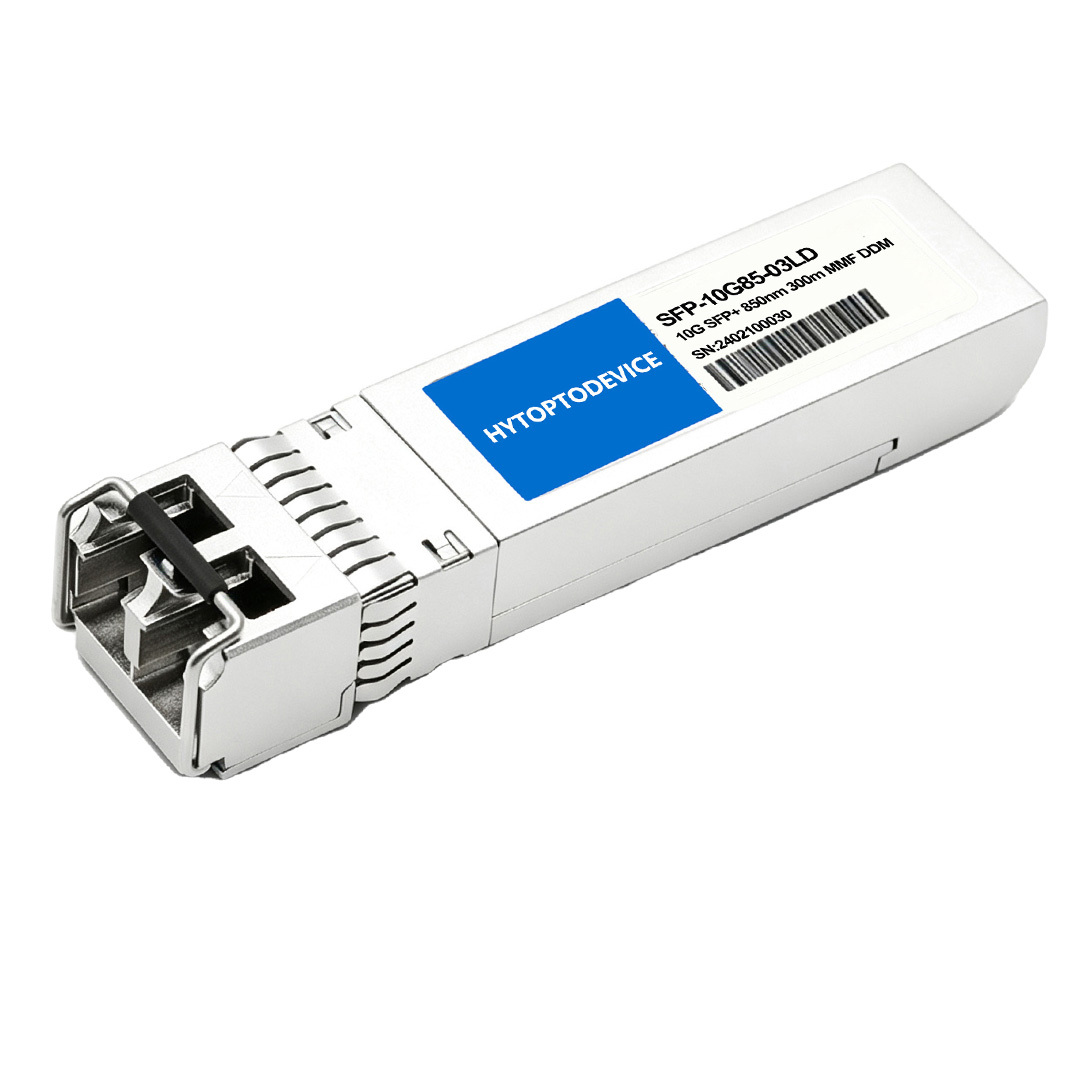

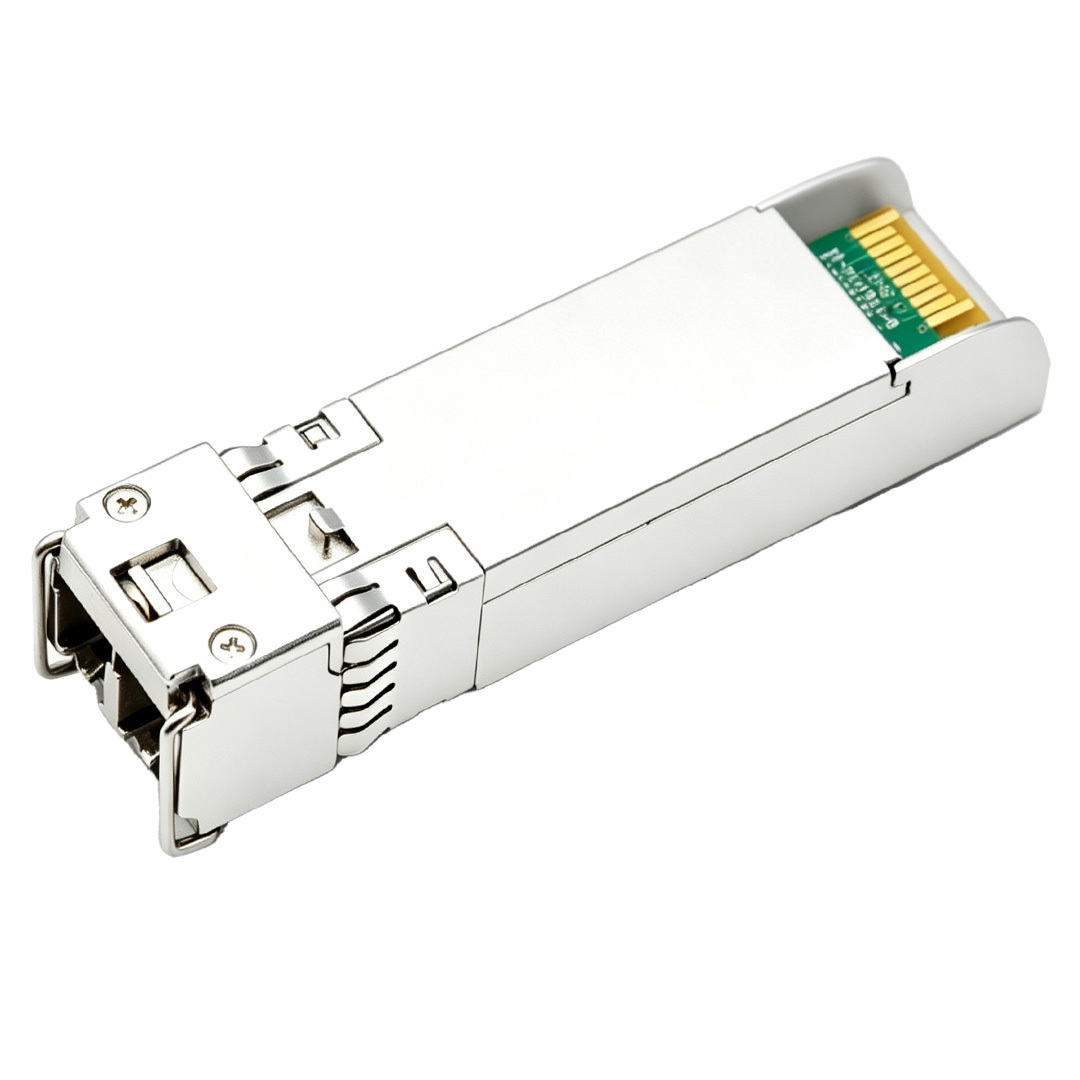

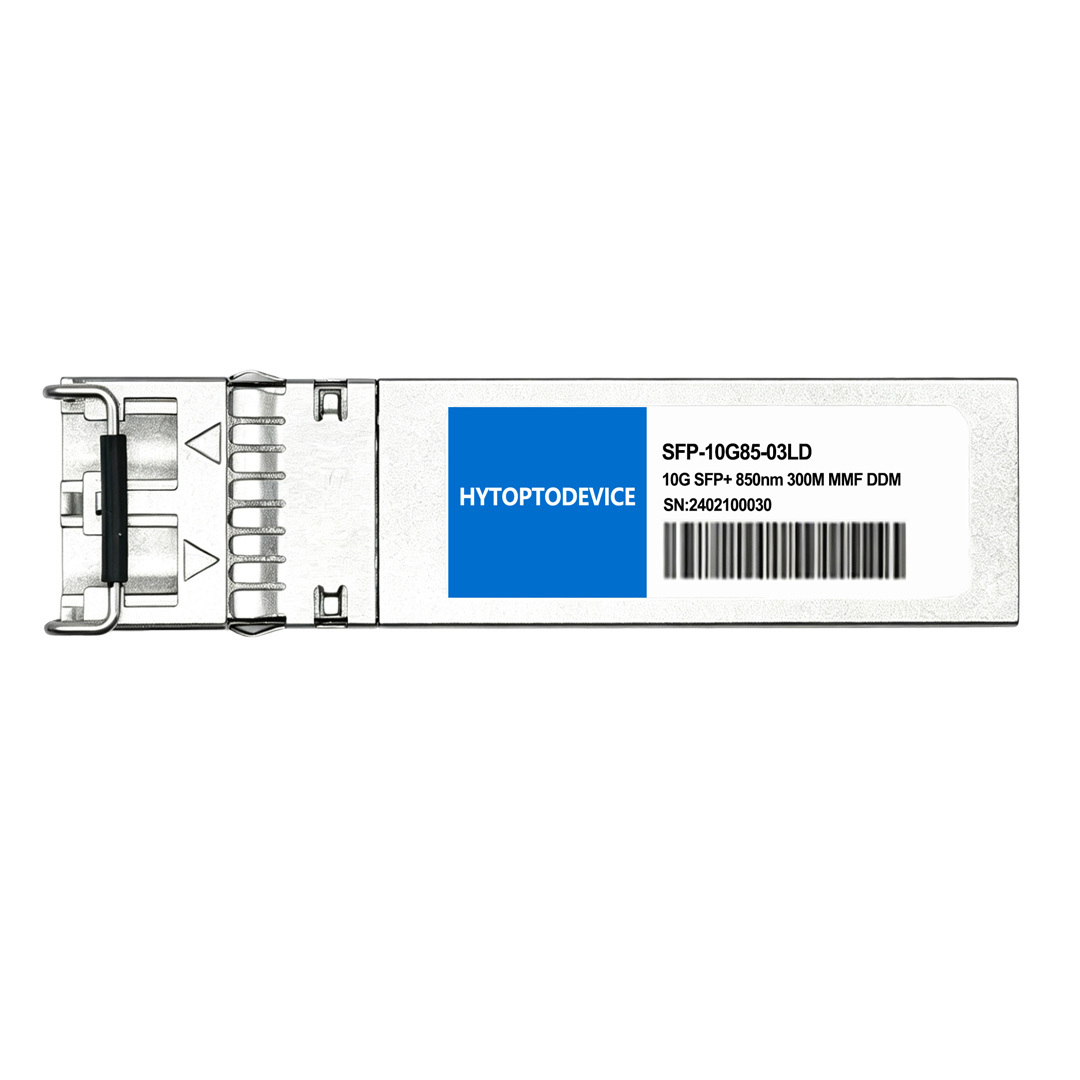

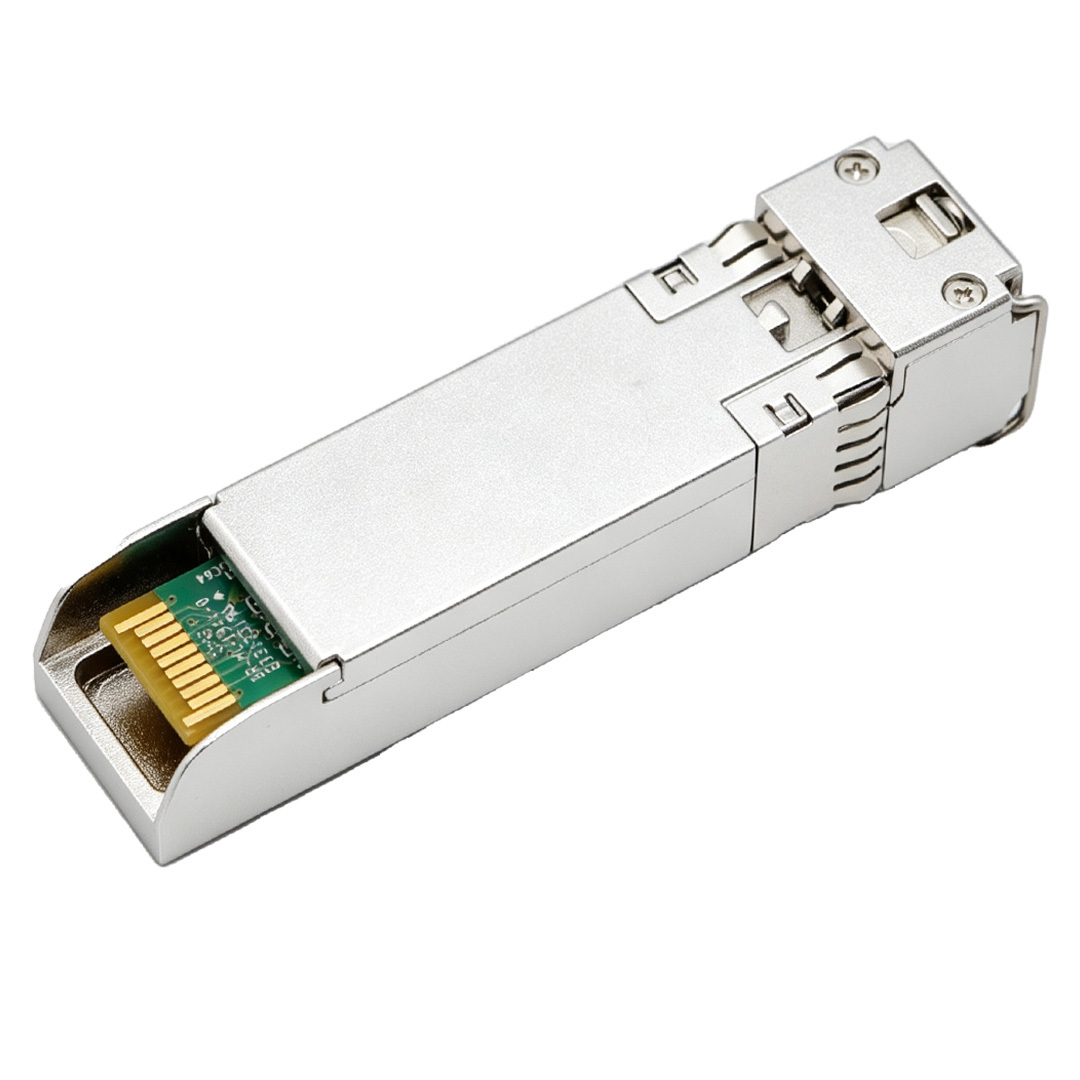

   The  10G-SFPP-SR is a high-performance, MSA-compliant Brocade-compatible SFP+ optical transceiver. Featuring a hot-pluggable SFP+ form factor, it operates at a fixed 10Gbps line rate over a 850nm wavelength to transmit data, with a transmission distance up to 300m over OM3 multi-mode fiber (MMF) or 400m over OM4 MMF via a Duplex LC connector. With low-latency and low power consumption, this transceiver sfp 10g sr provides highly stable Internet Service Provider (ISP) 10 Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other high-speed optical links. Compliant with both the SFP+ Multi-Source Agreement (MSA) and IEEE 802.3ae. DOM (Digital Optical Monitoring) supported.
The Difference:SFP-10G-SR vs SFP-10G-SR-S vs SFP-10G-SR-X vs SFP-10G-SR-I

Key Technical Specifications of 10GBASE-SR Optical Transceiver

Full Compatibility List and Supported Devices of  Fiber Optic Transceiver
    One of the biggest advantages of third-party optical transceiver is their strong brand compatibility,which helps enterprises cut hardware costs without sacrificing performance.Our transceiver sfp 10g sr is fully tested and certified to work seamlessly with the Brocade equipments:

• Brocade / Ruckus ICX Series Campus Switches: ICX 6610, ICX 7150, ICX 7250, ICX 7450, ICX 7650, ICX 7750, ICX 7850

• Brocade VDX Series Data Center Switches: VDX 6740, VDX 6740T, VDX 6940, VDX 8770

• Brocade FCX Series Switch Systems: FCX624S, FCX648S, FCX624X-F

• Brocade NetIron Core Routers: NetIron MLX-4, NetIron MLX-8, NetIron CES 2000

Main Application Scenarios of SFP 10G SR

• Enterprise Campus Core Aggregation: Establishing high-speed 10GbE trunk links between core and distribution switch layers across distinct network closets.

• Intra-Data Center Leaf-Spine Links: Patching server blades, hypervisors, and top-of-rack (ToR) switches directly into high-density network fabrics.

• Storage Area Networks (SAN): Connecting high-speed Network Attached Storage (NAS) configurations, flash storage arrays, and Fibre Channel over Ethernet (FCoE) architectures.

• High-Performance Network Security Uplinks: Aggregating high-traffic localized trunk paths into secure perimeter edge gateways and enterprise firewalls.

Connectivity Solutions(Applications) of SFP+ Transceiver






Features：Upgrade your Network

FAQ for SFP-10G-SR

• Q1: Can I use this transceiver with standard single-mode (yellow) patch cables?
  A1: No. This module is strictly built for Multi-Mode Fiber (MMF) infrastructures. Single-mode fiber will cause severe optical loss, keeping the link down.

• Q2: Do I need an inline optical attenuator with this transceiver?
  A2: No. The light output of an 850nm VCSEL transmitter is inherently low-power and engineered precisely for short distances; it will never blind or saturate the receiver.

• Q3: Does this Brocade compatible 10G module support DOM (Digital Optical Monitoring)?
  A3: Yes, full real-time DOM/DDM is supported, allowing you to track optical power levels, voltage, and temperature thresholds.

• Q4: What is the minimum optical link budget for this SFP+10G optic?
  A4: The minimum optical budget is approximately 3.8dB to 4.0dB, calculated using a minimum Tx power of -7.3dBm and an Rx sensitivity threshold of -11.1dBm.

• Q5: Is this 10G SR module safe to handle while the laser is running?
  A5:Yes, It is certified as a Class 1 Laser product, making it safe under normal operation. However, you should never look directly into an active optical aperture.

• Q6: How should I store this module when kept as a field spare?
  A6: Keep it sealed inside its anti-static protective packaging in a clean, dry room tracking a storage range between -40°C and 85°C.
