NVIDIA/Mellanox MMA1T00-VS  Compatible 200G QSFP56 SR4 Optical Transceiver Module | HYTOPTODEVICE

Product Detail：

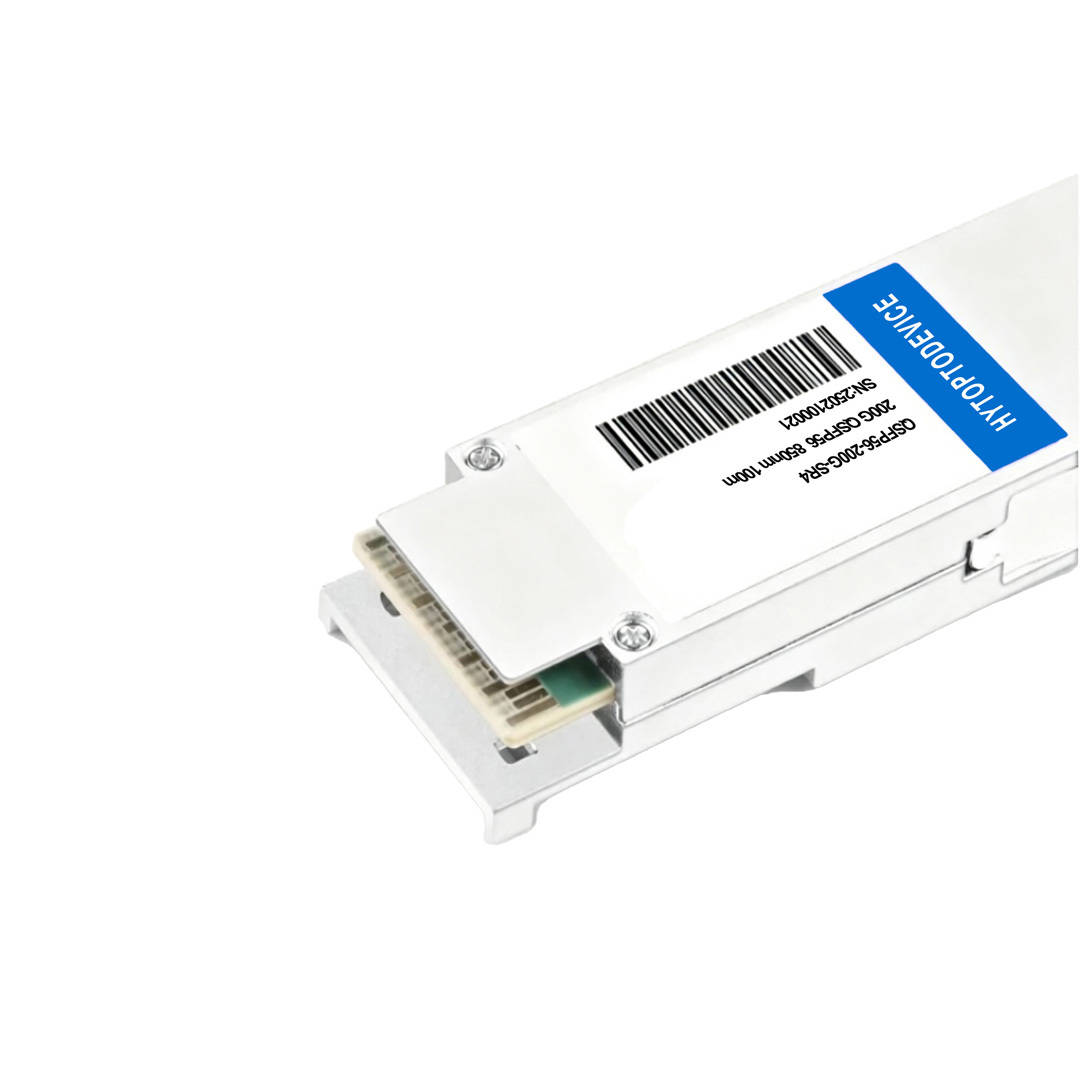

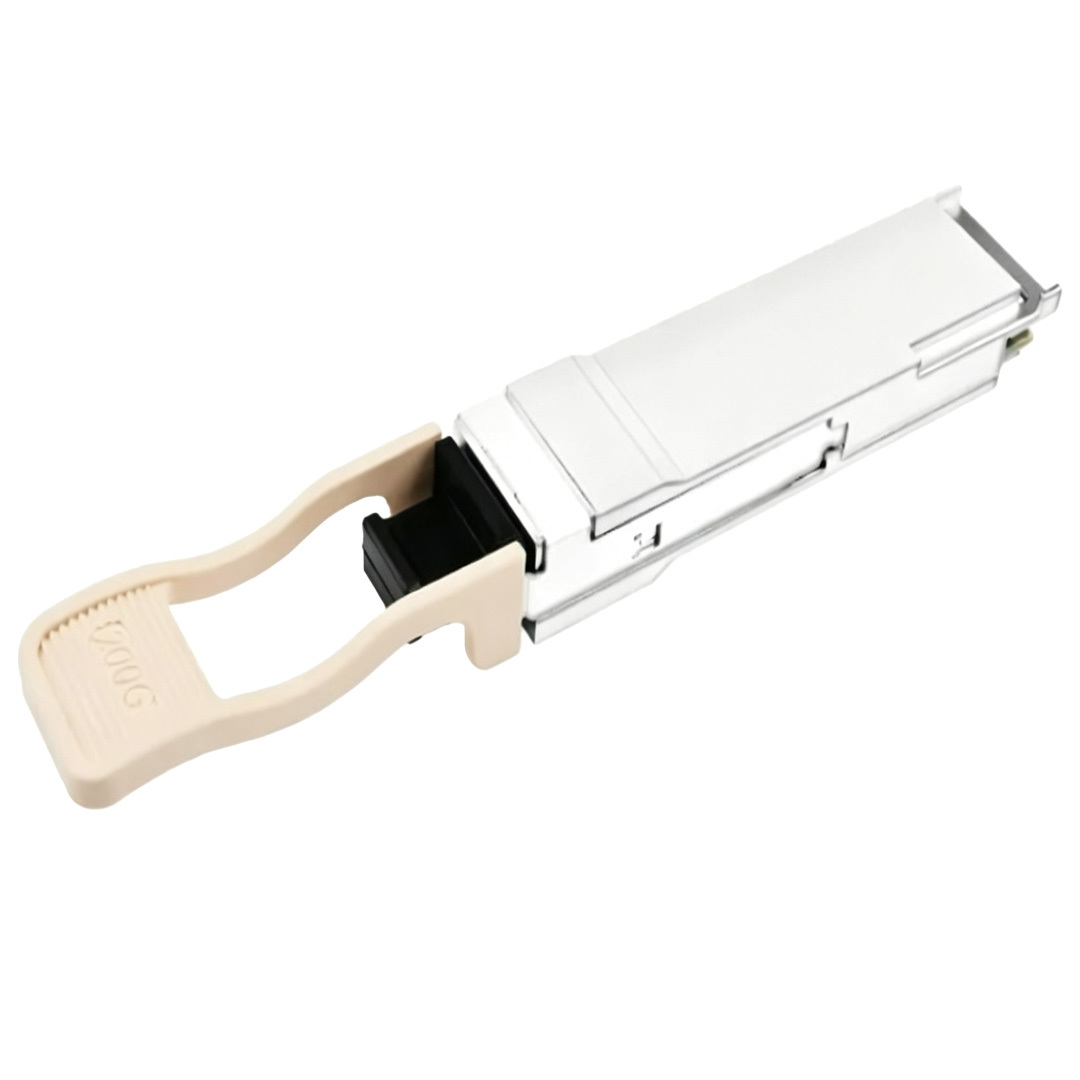

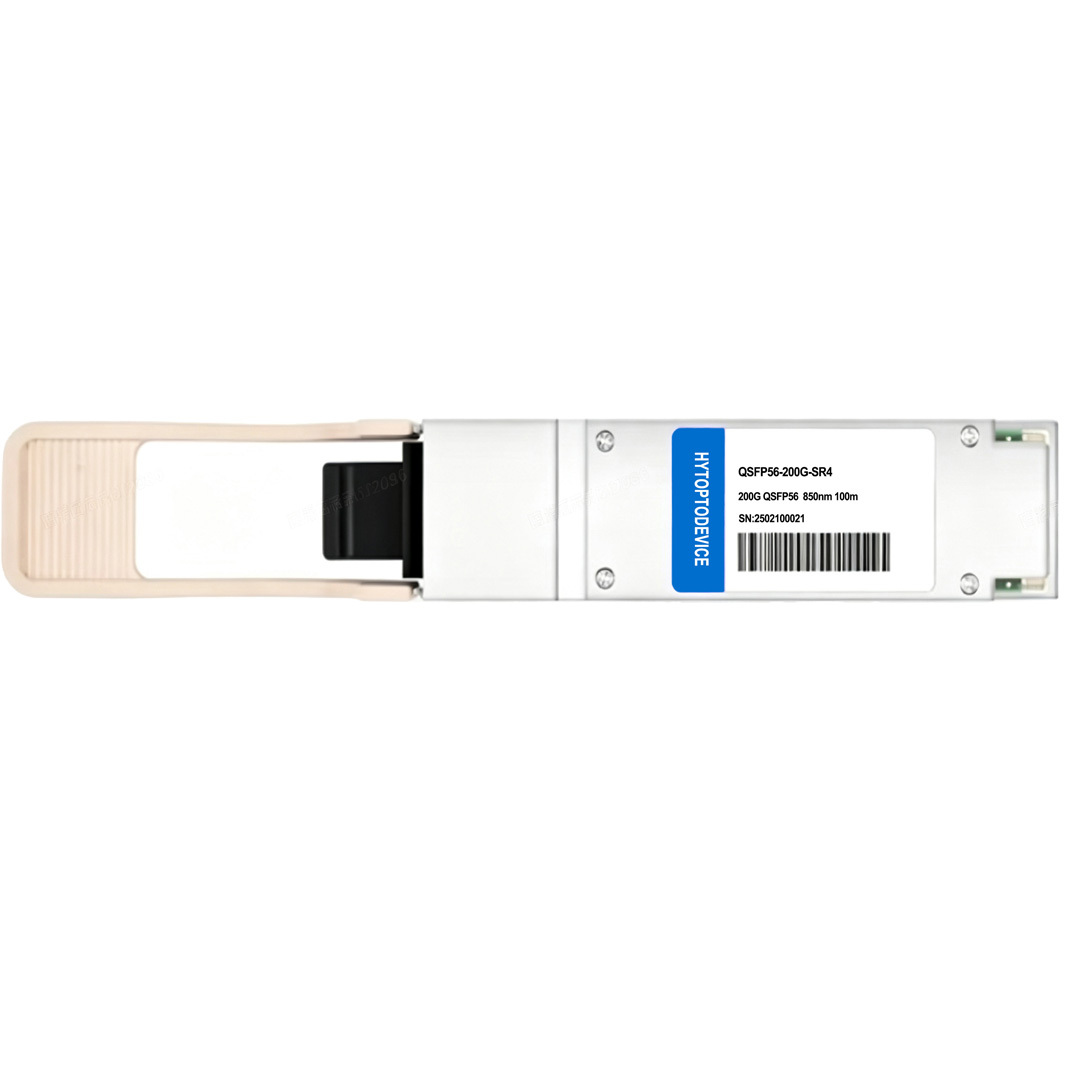

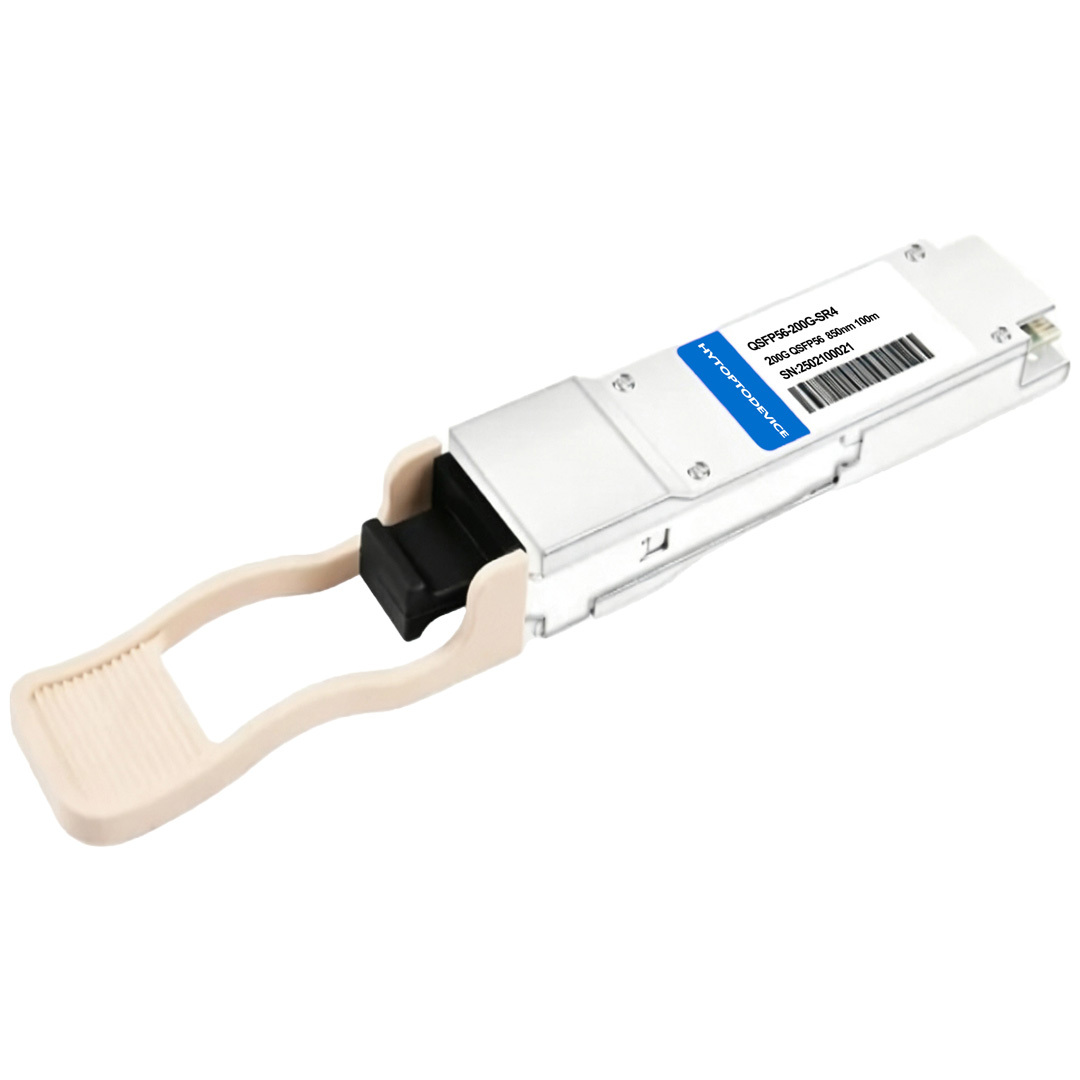

HYTOPTODEVICE 200G QSFP56 Module | NVIDIA/Mellanox Compatible 200GBASE-SR4 Optical Transceiver Module(MMF, 850nm,100m, MPO-12, DOM)

      The MMA1T00-VS is a high-performance NVIDIA/Mellanox compatible 200G QSFP56 optical module,designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fibre (MMF),reach up to 100m.  Operating over a wavelength of 850nm, this module integrates 4 parallel independent electrical lanes utilizing advanced 4x 50Gbps PAM4 (Pulse Amplitude Modulation 4-Level) technology to achieve an aggregate throughput of 200Gbps. this transceiver delivers high-bandwidth, energy-efficient performance with short reach. making it the ideal choice for next-generation AI data centers and High-Performance Computing (HPC) clusters.Fully compliant with IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636 and SFF-8679 standards,real-time Digital Optical Monitoring (DOM) supported.

Full Compatibility List and Supported Devices of NVIDIA/Mellanox 200G Transceiver

The MMA1T00-VS features specific NVIDIA LinkX firmware keys engineered to initialize flawlessly with NVIDIA Mellanox Spectrum-2 (Ethernet platform) hardware and High-Speed Network Adapters.

1.Compatible Ethernet Switches

• NVIDIA Spectrum-2 SN3000 Switch Series:

  • SN3700 (32x 200GbE QSFP56 Ports)

  • SN3420 (48x 25GbE + 6x 200GbE QSFP56 Uplinks)

  • SN3800 (64x 100GbE split ports via 200GbE physical QSFP56 interfaces)

2.Compatible Host Network Adapters (NICs)

• NVIDIA ConnectX-6 (CX6) 200GbE Series:

  • MCX623106A-CDAT (ConnectX-6 EN, Dual-port QSFP56)

  • MCX623105A-CDAT (ConnectX-6 EN, Single-port QSFP56)

• NVIDIA BlueField-2 DPU Series:

  • Dedicated 200GbE variants featuring native QSFP56 uplink cages.



Primary Application Scenarios of 200G QSFP56 Transceiver

The MMA1T00-VS is built natively for low-latency, high-throughput short-range data pathways:

• High-Density Data Center Leaf-to-Spine Interconnects: Ideal for point-to-point structured cabling architecture connecting enterprise or cloud top-of-rack (ToR) switches to spine switches within the 100-meter threshold.

• AI & Machine Learning Infrastructure: Interconnecting high-performance AI computing nodes (such as NVIDIA DGX systems) to dedicated AI storage platforms and network fabrics via high-speed RoCEv2 (RDMA over Converged Ethernet).

• Supercomputing Grid Interconnections: Providing reliable, ultra-low Bit Error Rate (BER) connectivity for clustered High-Performance Computing environments demanding massive parallel workload handling.

Key Product Parameters of 200GBASE-SR4 Transceivers

Connectivity Solutions for 200G Optical Module

Q1: What is the main difference between NVIDIA MMA1T00-VS and MMA1T00-HS?A1: While both are 200G QSFP56 SR4 modules, the MMA1T00-VS is optimized and coded for Ethernet systems (Spectrum switches/ConnectX-6 EN adapters). The MMA1T00-HS is coded for InfiniBand HDR environments (Quantum switches).


Q2: Does the MMA1T00-VS support multi-speed rate downshifts?A2: No. The MMA1T00-VS is locked natively to 200G PAM4 performance. It does not support downrating or operating at 100G NRZ rates on legacy devices.

Q3: What type of fiber optic patch cord is required for this 200G SR4 module?A3: It uses a Multi-Mode Fiber (MMF) patch cable equipped with an MPO-12 (UPC polish, typically Type-B crossover polarity) connector. It is not compatible with dual-LC fibers.

Q4: Can I use this 200G SR4 module on a standard 100G QSFP28 switch port?A4: No. The 100G QSFP28 uses 25G NRZ electrical lanes and cannot process the 50G PAM4 signals used by this 200G QSFP56 transceiver.

Q5: Is Forward Error Correction (FEC) required to use this module?A5: Yes. In accordance with the IEEE 802.3bs 200GBASE-SR4 standard, the host equipment must have RS-FEC turned on to manage the native signal margins of PAM4 technology.

Q6: Can this module be split into breakout connections?A6: Yes. Because it features a parallel 4-lane VCSEL optics structure, you can use an MPO-12 to 2x QSFP56 breakout cable or an MPO-12 to 4x SFP56 breakout cable to divide the link into 2x 100G or 4x 50G connections, provided your NVIDIA switch port supports splitting.

Q7: What is the maximum transmission distance over multi-mode fiber?A7: The module supports up to 100 meters (328 feet) when utilizing high-quality OM4 multi-mode fiber, and up to 70 meters (229 feet) when utilizing OM3 fiber.

Q8: Does the MMA1T00-VS feature Digital Diagnostics Monitoring (DDM)?A8: Yes. It provides fully compliant SFF-8636 Digital Diagnostic Monitoring allowing real-time tracking of internal temperature, operating voltage, laser bias currents, and transmit/receive power values via the switch OS.

Q9: What happens if I insert a third-party clone of this module into my NVIDIA Spectrum switch?A9: NVIDIA switches utilize advanced firmware validation checks. If a non-genuine or poorly coded module is detected, the switch OS will trigger a flag (e.g., Unsupported Cable) and disable the port to protect signal integrity.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.

"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
