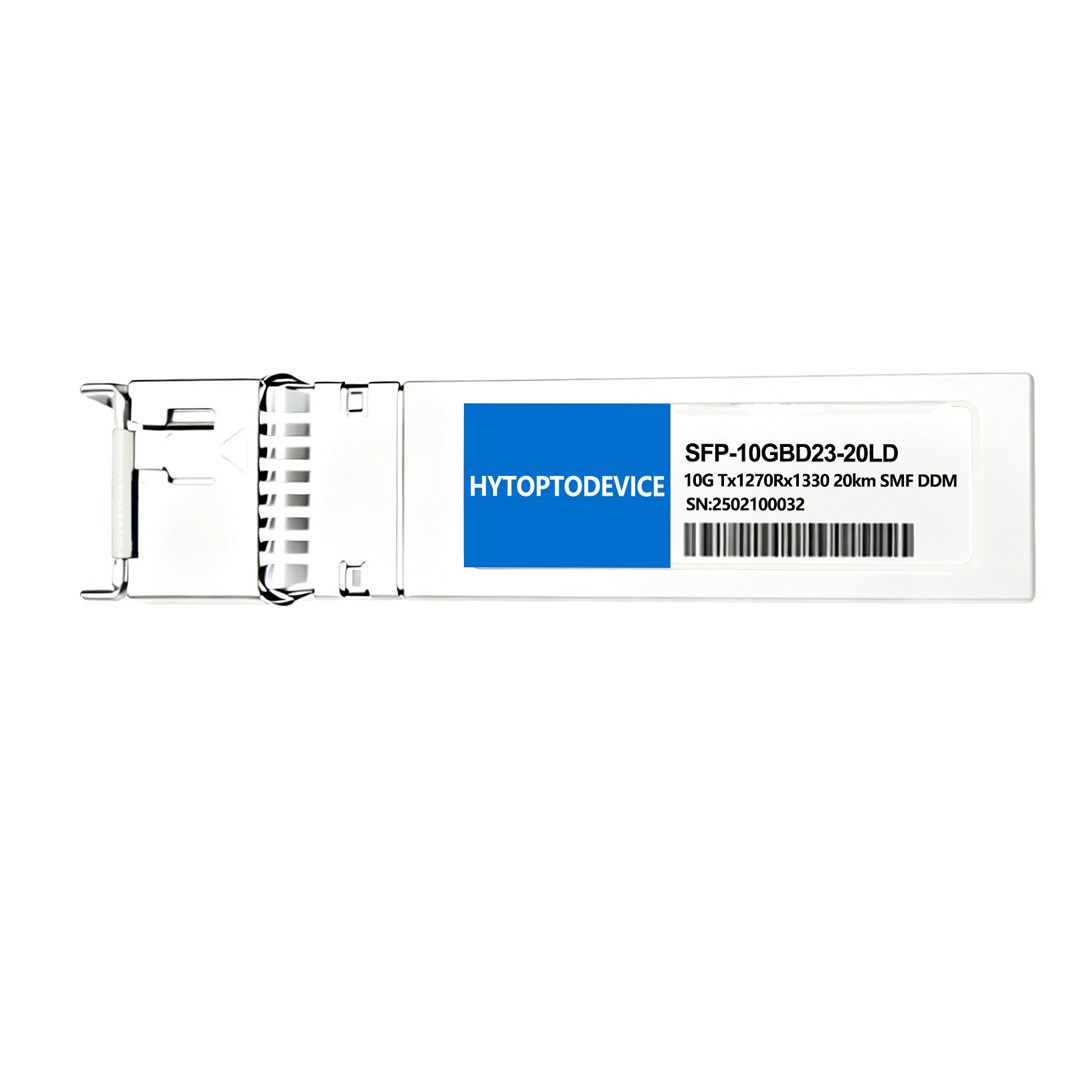

Extreme Compatible 10GB-BX20-U BiDi 10G SFP+ Transceiver 10GBASE-BX20-U (SMF, 1270nm-TX/1330nm-RX, 20km, Simplex LC, Live DDM)
Product Overview

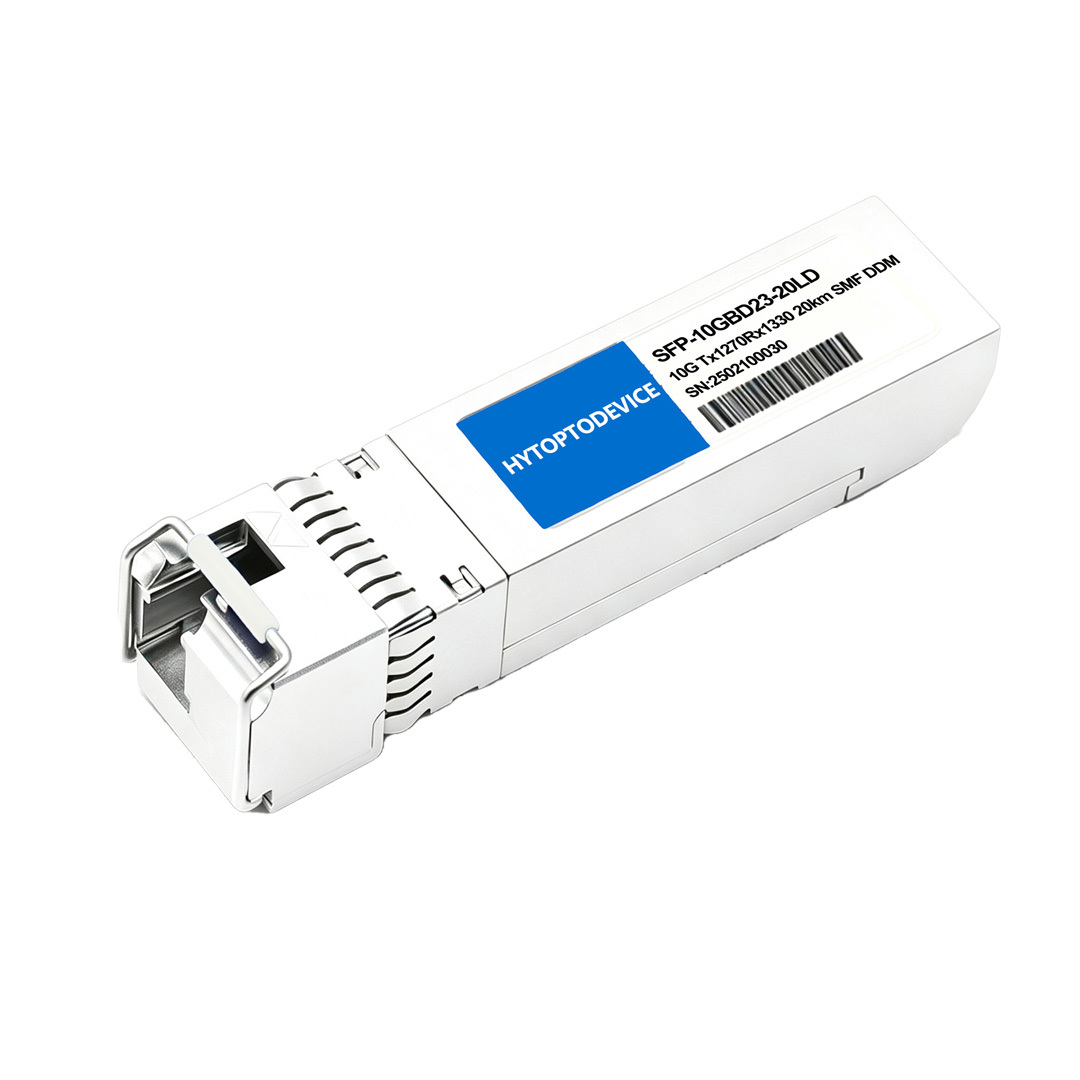

The Extreme compatible 10GB-BX20-U BiDi 10G SFP+ Transceiver is equipped with a simplex LC port and delivers stable 20km signal transmission over G.652 single-mode fiber. Using WDM technology, this BiDi 10G SFP+ Transceiver enables bidirectional 10G Ethernet data flow via only one single fiber strand, lowering overall cabling expenses and maximizing utilization of existing fiber infrastructure. Compliant with SFP+ MSA, IEEE 802.3ae and SFF-8431 protocols and standards, the budget-friendly BiDi 10G SFP+ Transceiver drop-in replacement for Extreme OEM optics provides seamless plug-and-play compatibility with Extreme equipments and other network hardwares. Supporting DDM digital diagnostic monitoring, it is ideal for enterprise wiring closets, service provider transport applications,etc.
Key Technical Specifications
Below are the specifications for our Extreme 10GB-BX20-U compatible BiDi 10G SFP+ Transceiver (1270nm-TX/1330nm-RX, 20km, SMF, LC, DDM). Every unit undergoes strict optical and electrical testing. Official test documentation is available upon request.
| Extreme Compatible |
10GB-BX20-U |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-3.0~+2.0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM Monitoring |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Full Compatibility List & Supported Network Hardware
1.Extreme Exclusive Compatible Hardware & Validated Switch Series
Our alarm-free plug-and-play BiDi 10G SFP+ Transceiver is pre-flashed with standard Extreme EEPROM identification codes, eliminating unrecognized transceiver warning logs after full physical real-Extreme-switch insertion validation for all listed equipment:
-
Extreme Summit X440-G2 / X450-G2 / X460-G2
-
Extreme VSP 7400 / VSP 8400 Series Datacenter Switches
-
Extreme X670 / X770 High-Density Campus Switches
-
Extreme SLX Series Enterprise Routers
All equipment recognizes our BiDi 10G SFP+ transceiver natively, no third-party module unlock command required.
2.Cross-Brand Network Devices Compatible With This BiDi 10G SFP+ Transceiver
Beyond Extreme hardware, our 10G SFP+ BiDi transceiver is compatible with mainstream brand devices, it include:
Cisco Catalyst 9000/3850, Mikrotik CCR Series, Huawei S5735/S6735, H3C S5130, Arista 7050, Dell PowerSwitch, Juniper EX/QFX, Fortinet FortiSwitch, Brocade ICX, Allied Telesis, Ubiquiti UniFi Switch.
Primary Application Scenarios
This BiDi 10G SFP+ Transceiver must be deployed as a matched pair together with its complementary reverse-wavelength BiDi counterpart, installed separately at the two opposite ends of single-strand fiber patch cords to build valid bidirectional 10G data links. Optimized for fiber-reserved network upgrades and limited cable tray layouts, this BiDi 10G SFP+ Transceiver boosts single-fiber bandwidth efficiency and streamlines enterprise network expansion workflows. Below are its primary application scenarios:
- Campus Network Single Fiber Upgrade: Deploy BiDi 10G SFP+ transceiver 10GB-BX20-U to reuse existing single fiber strands between building switches without new cabling construction
- Remote Office 10G Ethernet Backhaul: 20km reach BiDi 10G SFP+ transceiver for branch-office Extreme switch interconnection
- Metro Fiber Access Network: Cost-efficient BiDi 10G SFP+ transceiver bulk supply for ISP FTTH & enterprise metro links
- Small Datacenter Inter-Switch Links: High-density simplex LC BiDi 10G SFP+ transceiver to save fiber port resources
- System Integrator Turnkey Network Projects: OEM labeled 10GB-BX20-U BiDi 10G SFP+ transceiver for wholesale project delivery to importers
Connectivity Solutions(Applications)
Our single fiber BiDi 10G SFP+ Transceiver supports three widely adopted enterprise network installation architectures:
1.10G Switch-to-Switch Interconnection Diagram:
Deploy paired matching BiDi 10G SFP+ module units between two enterprise core aggregation switches to build long-distance single-fiber backbone trunk connections.
2.10G Switch-to-NIC Server Uplink Diagram:
Adopt sfp+ 10g bidi transceiver hardware to link central rack aggregation switches and onsite server NIC hardware for reliable single-fiber 10G uplink data transmission.
3.10G Standardized Structured Cabling Rack Layout Diagram:
Rack-mounted BiDi 10G SFP+ Transceiver matched with cable management hardware for neat, compliant multi-story building structured wiring deployments.
FAQ for Extreme Compatible BiDi 10G SFP+ Transceiver
Q1: Is this Extreme compatible 10GB-BX20-U BiDi 10G SFP+ transceiver fully plug-and-play on original Extreme switches?
A: Yes, our BiDi 10G SFP+ transceiver passes full layer compatibility testing on all Extreme hardware supporting the 10GB-BX20-U part number, no extra configuration or firmware patch needed. The switch identifies the BiDi 10G SFP+ transceiver as standard 10GBASE-BX optic with complete DOM readout.
Q2: Do I need to buy matching modules when using this 10GB-BX20-U BiDi 10G SFP+ transceiver for single fiber links?

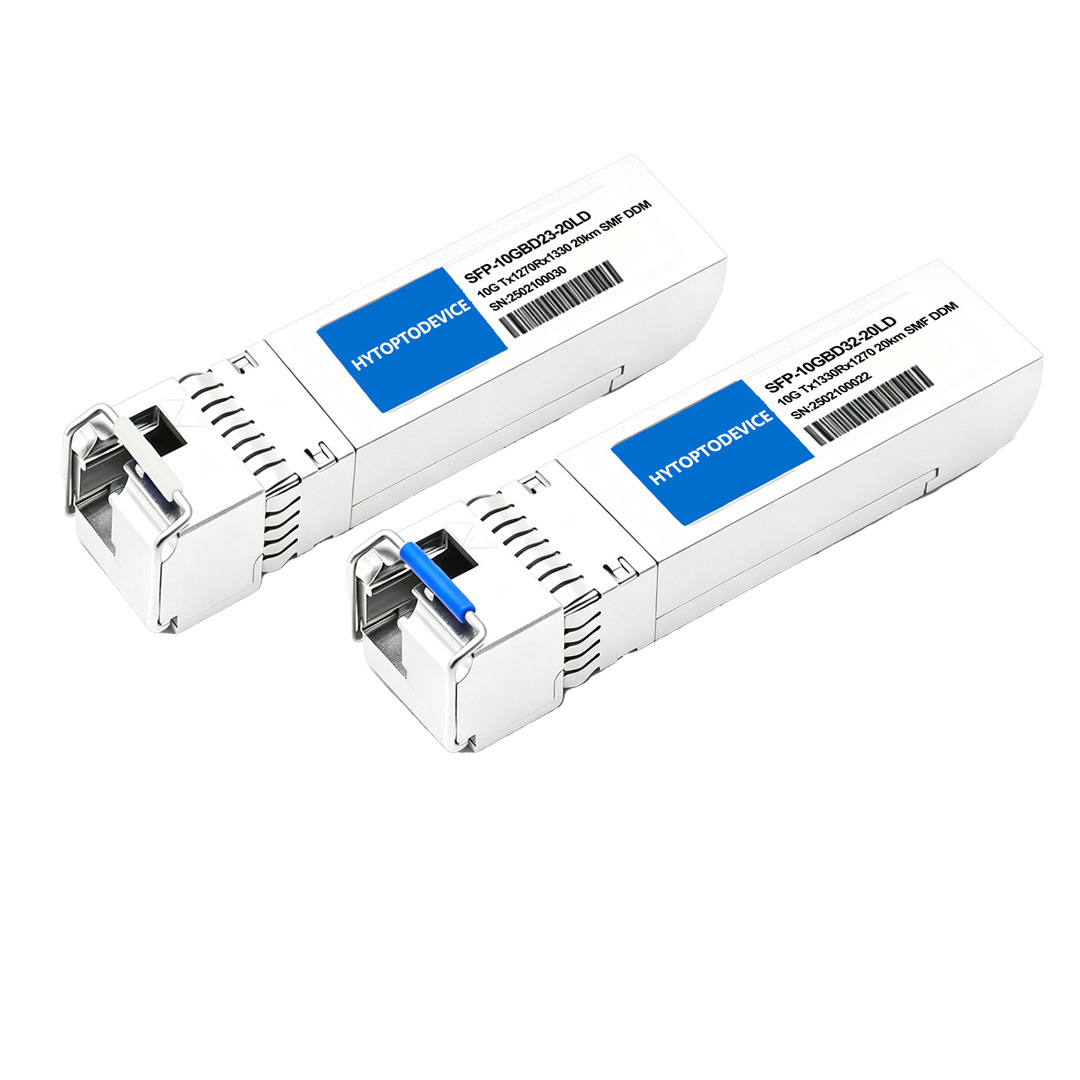

A:Yes, This 10GB-BX20-U BiDi 10G SFP+ transceiver transmits at 1270nm and receives 1330nm signals, so it must pair with 10GB-BX20-D BiDi 10G SFP+ transceiver (1330nm TX / 1270nm RX) to achieve full-duplex single strand communication. HYTOPTODEVICE provide discounted pair pricing for wholesale BiDi 10G SFP+ transceiver orders.
Q3: Can I purchase bulk BiDi 10G SFP+ transceiver 10GB-BX20-U with custom OEM labels for my import distribution business?
A: Yes. We support full OEM customization for bulk BiDi 10G SFP+ transceiver orders of 200pcs and above, including private brand printing, customized part number stickers and neutral export packaging for global network importers and distributors sourcing the Extreme 10GB-BX20-U replacement module.
Q4: Does this commercial grade BiDi 10G SFP+ transceiver 10GB-BX20-U support real-time DOM optical diagnostics?
A: Yes, All our 10GB-BX20-U compatible BiDi 10G SFP+ transceiver integrate complete DDM/DOM monitoring per SFF-8472 standard, allowing network admins to view real-time optical power, temperature and voltage data directly from Extreme switch CLI or web management portal.
Q5: What fiber cable type works best with this 20km BiDi 10G SFP+ transceiver 10GB-BX20-U simplex LC module?
A: For stable full 20km transmission distance, use OS2 single-mode simplex LC/UPC fiber patch cords. OS1 SMF fiber will limit effective reach to roughly 15km for this BiDi 10G SFP+ transceiver model. Multimode fiber cannot be used with the 10GB-BX20-U BiDi 10G SFP+ transceiver.
Q6: What warranty coverage do you offer for wholesale BiDi 10G SFP+ transceiver 10GB-BX20-U orders?
A: Every Extreme compatible BiDi 10G SFP+ transceiver 10GB-BX20-U carries a 5-year factory warranty, covered under Magnuson-Moss Warranty Act – third-party compatible optics do not void your Extreme network equipment hardware warranty. We provide free pre-shipment compatibility testing for large BiDi 10G SFP+ transceiver bulk shipments.
Q7: Can this BiDi 10G SFP+ transceiver replace original Extreme 10GB-BX20-U for long-term campus network expansion projects?
A: Yes,This cost-effective BiDi 10G SFP+ transceiver from HYTOPTODEVICE matches all electrical, optical and signaling specs of OEM Extreme 10GB-BX20-U optics, making it the ideal long-term replacement for large campus network expansion projects that require hundreds of single fiber BiDi 10G SFP+ transceiver modules.
