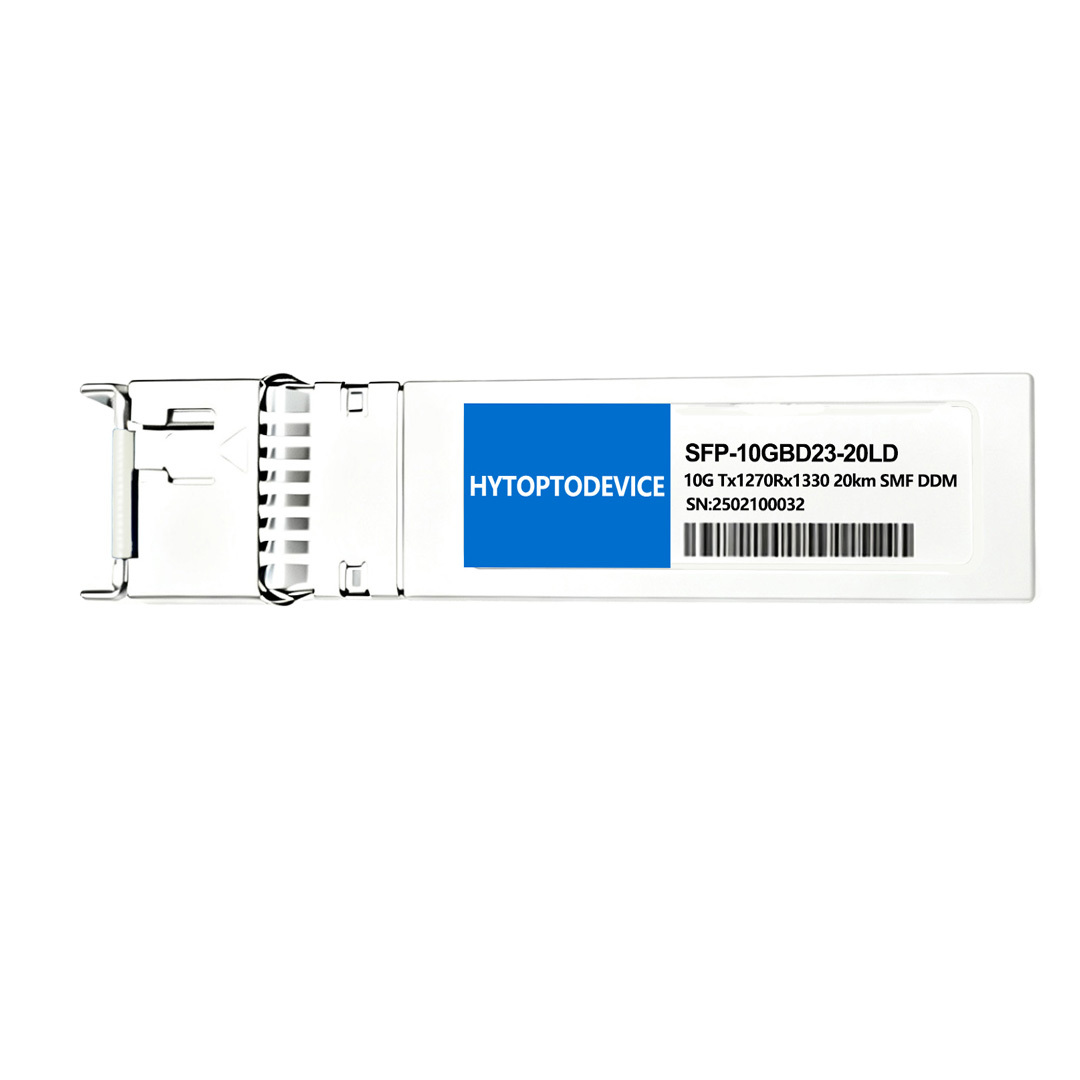

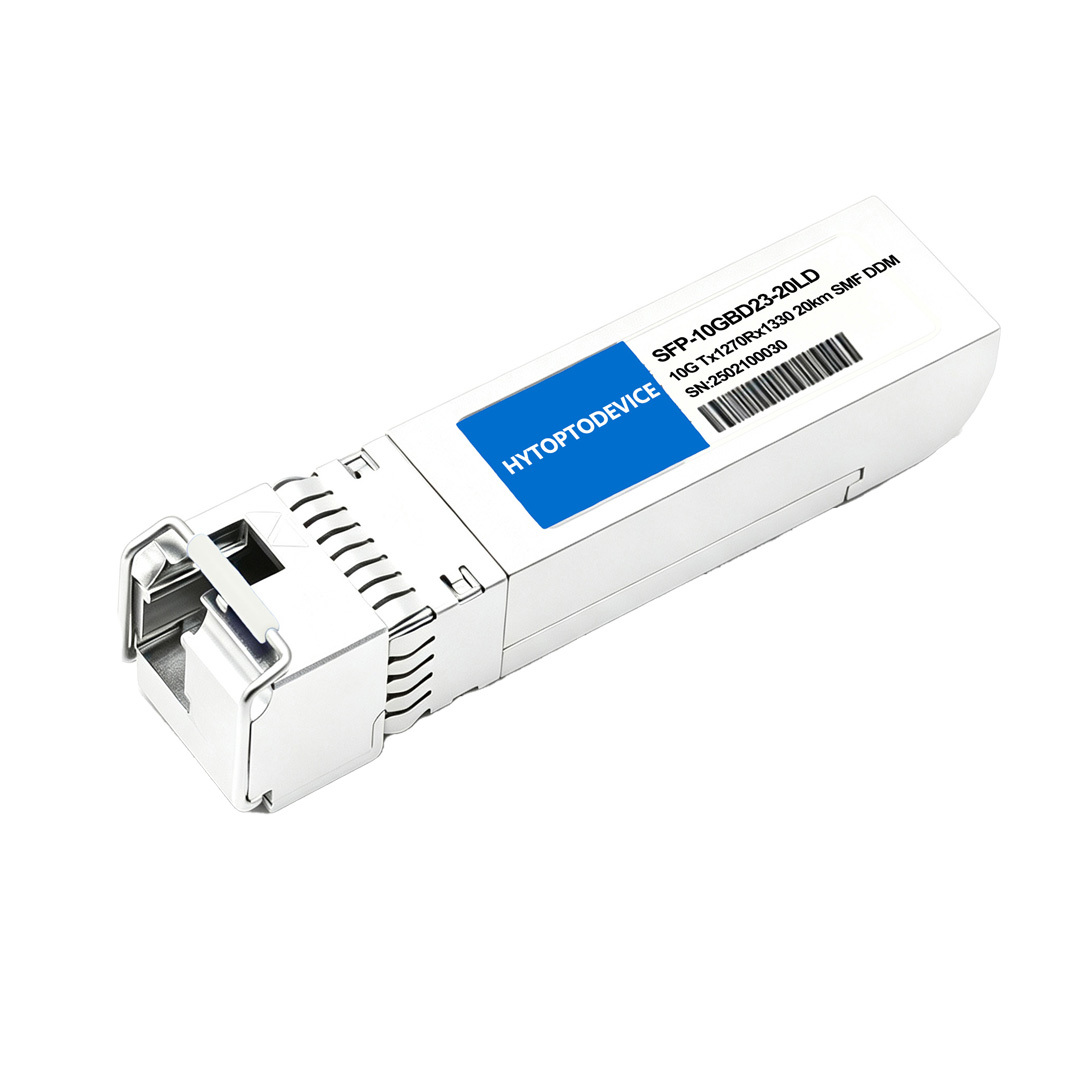

Brocade Compatible 10G-SFPP-BXU-20K SFP+ 10G BiDi Transceiver Module 10GBASE-BX20-U (SMF, 1270nm-TX/1330nm-RX, 20km, Simplex LC, Live DDM)
Product Overview

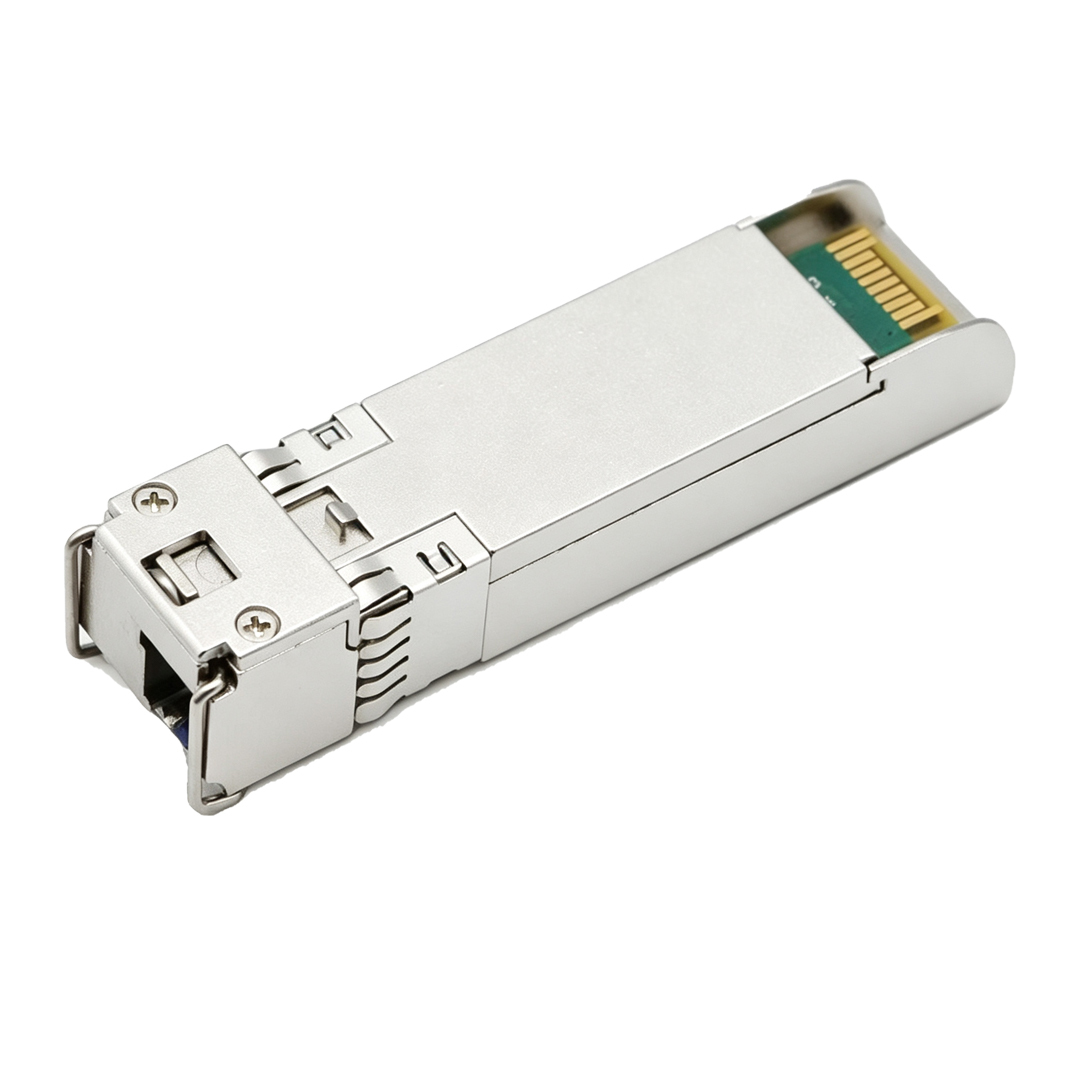

The Brocade compatible 10G-SFPP-BXU-20K SFP+ 10G BIDI module is equipped with a simplex LC port and delivers stable 20km signal transmission over G.652 single-mode fiber. Using WDM technology, this SFP+ 10G BiDi module enables bidirectional 10G Ethernet data flow via only one single fiber strand, lowering overall cabling expenses and maximizing utilization of existing fiber infrastructure. Compliant with SFP+ MSA, IEEE 802.3ae and SFF-8431 protocols and standards, the budget-friendly SFP+ 10G BiDi module drop-in replacement for Brocade OEM optics provides seamless plug-and-play compatibility with Brocade equipments and other network hardwares. Supporting DDM digital diagnostic monitoring, it is ideal for enterprise wiring closets, service provider transport applications,etc.
Key Technical Specifications
Below are the specifications for our Brocade 10G-SFPP-BXU-20K compatible SFP+ 10G BiDi module (1270nm-TX/1330nm-RX, 20km, SMF, LC, DDM). Every unit undergoes strict optical and electrical testing. Official test documentation is available upon request.
| Brocade Compatible |
10G-SFPP-BXU-20K |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-3.0~+2.0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
Receiver Overload |
0.5dBm |
| Protocols |
10G Ethernet, MSA Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Full Compatibility List & Supported Network Hardware
1.Brocade Exclusive Compatible Hardware & Validated Switch Series
Our alarm-free plug-and-play sfp+ 10g bidi module is pre-flashed with standard Brocade EEPROM identification codes, eliminating unrecognized transceiver warning logs after full physical real-Brocade-switch insertion validation for all listed equipment:
-
Ruckus ICX Series Switches: ICX 6610, ICX 7150, ICX 7250, ICX 7450, ICX 7650, and ICX 7750 Series (high-performance 10G uplink and stacking ports).
-
Brocade VDX Data Center Switches: VDX 6740, VDX 6940, and VDX 8770 Series fabric slots.
-
Brocade FastIron Series Switches: FastIron SX, FastIron CX, and FCX Series.
-
Brocade NetIron Routers: NetIron CES 2000 and NetIron CER 2000 Series
At HYTOPTODEVICE, 150+ brand devides are utilized for compatibility test. Authentic real-Brocade-device test videos of this SFP+ 10G BiDi module are offered free for project bidding and internal quality audits.
2.Cross-Vendor Compatibility
HYTOPTODEVICE operates a professional optical module interoperability verification laboratory covering more than 150 mainstream worldwide network hardware manufacturers. Each commercial indoor rated sfp+ 10g bidi module completes full physical upper-machine deployment testing on Cisco, Huawei, H3C, Juniper, Arista, HPE, Mikrotik and other mainstream enterprise switching devices.
Unlike uncalibrated generic transceivers that cause persistent link dropouts or automatic port error-disable protection triggers, our fully real hardware verified sfp+ 10g bidi module maintains consistent single-fiber bidirectional 10G throughput under mixed-brand network environments. We provide standardized cross-vendor compatibility documents, complete optical test records and custom recorded test footage for global system integrators and optical hardware distributors..
Primary Application Scenarios
This sfp+ 10g bidi module must be deployed as a matched pair together with its complementary reverse-wavelength BiDi counterpart, installed separately at the two opposite ends of single-strand fiber patch cords to build valid bidirectional 10G data links. Optimized for fiber-reserved network upgrades and limited cable tray layouts, this sfp+ 10g bidi module boosts single-fiber bandwidth efficiency and streamlines enterprise network expansion workflows. Below are its most widely adopted commercial deployment use cases:
- sfp+ 10g bidi module for multi-story campus single-fiber backbone trunk, halving fiber deployment costs for long-distance point-to-point enterprise network upgrades with simplex single-strand OS2 optical cable.
- sfp+ 10g bidi module for top-of-rack aggregation switch to server NIC uplink connections, building steady high-speed 10G single-fiber data links between core rack aggregation switches and local server network interface cards.
- sfp+ 10g bidi module for standardized indoor rack structured cabling schemes, matching universal cable management frameworks for indoor server rooms and multi-floor building backbone wiring infrastructure.

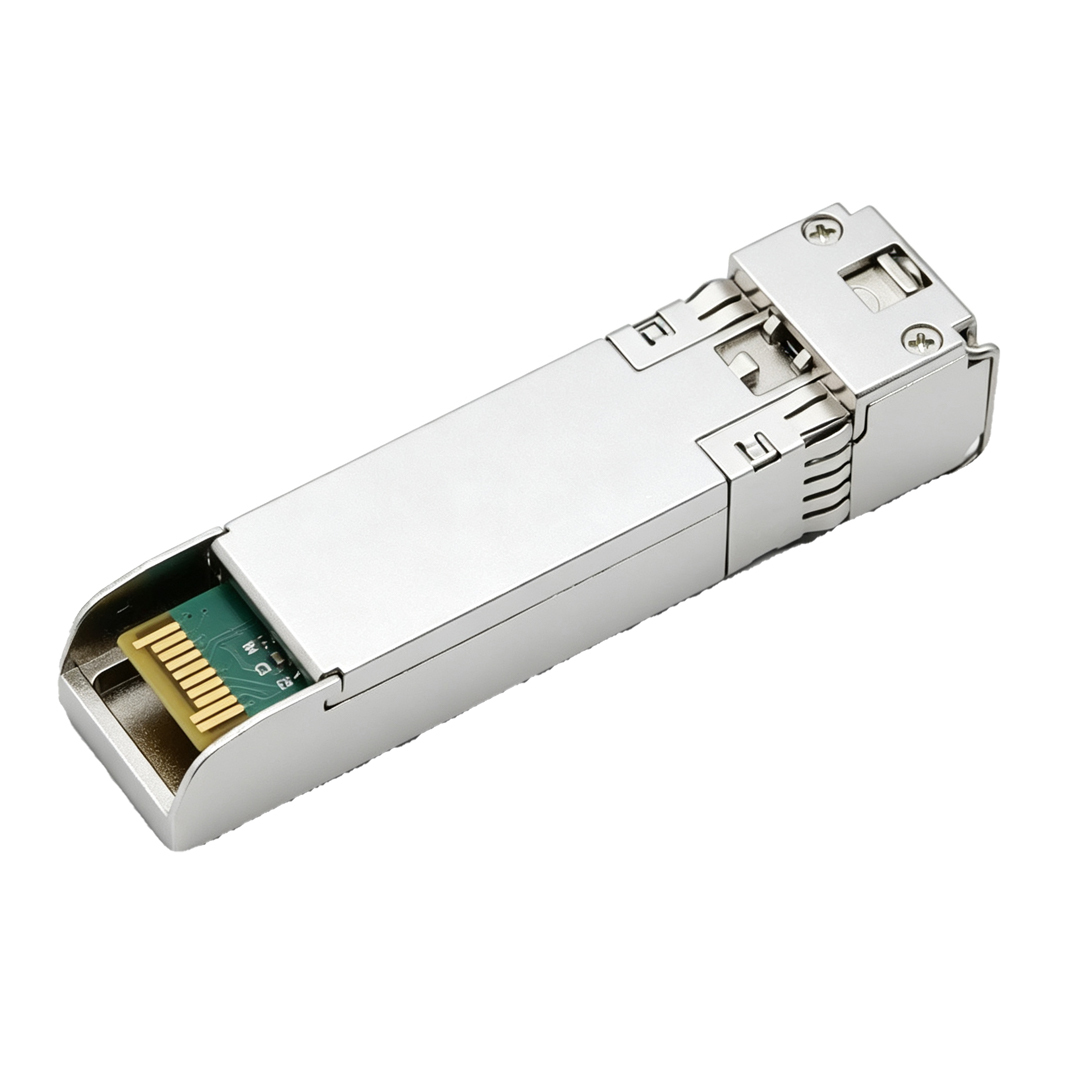

- Mass factory stock supply commercial indoor rated sfp+ 10g bidi module for corporate office network expansion projects, maintaining stable signal performance inside temperature-controlled indoor server cabinets within standard 0–70°C working range.
- Cost-efficient sfp+ 10g bidi module replacement for Brocade OEM optics for ISP FTTB access network construction, cutting large-volume procurement expenses compared with high-priced original Brocade factory optical modules.
Connectivity Solutions(Applications)
Our single fiber SFP+ 10G BiDi module supports three widely adopted enterprise network installation architectures:
1.10G Switch-to-Switch Interconnection Diagram:
Deploy paired matching sfp+ 10g bidi module units between two enterprise core aggregation switches to build long-distance single-fiber backbone trunk connections.
2.10G Switch-to-NIC Server Uplink Diagram:
Adopt sfp+ 10g bidi module hardware to link central rack aggregation switches and onsite server NIC hardware for reliable single-fiber 10G uplink data transmission.
3.10G Standardized Structured Cabling Rack Layout Diagram:
Rack-mounted sfp+ 10g bidi module matched with cable management hardware for neat, compliant multi-story building structured wiring deployments.
FAQ for Brocade Compatible SFP+ 10G BiDi Module
Q1: Why does Brocade switch pop up unsupported transceiver alerts when using third-party sfp+ 10g bidi module?
A:HYTOPTODEVICE sfp+ 10g bidi module is pre-coded with authentic Brocade EEPROM data to fix unsupported transceiver alerts on Brocade FastIron/ICX switches. Any non-qualified prompts are harmless reminders. You can clear error-disabled port status via standard Brocade CLI commands for normal full-speed module operation.
Q2: What are the wavelength pairing differences between upstream and downstream Brocade compatible sfp+ 10g bidi module?
A:The upstream 10G-SFPP-BXU-20K sfp+ 10g bidi module transmits at 1270nm and receives at 1330nm. The matching downstream 10G-SFPP-BXD-20K module transmits at 1330nm and receives at 1270nm. The two wavelength-different sfp+ 10g bidi module must be used in pairs to establish valid single-fiber 10G links.
Q3: Can two identical upstream sfp+ 10g bidi module realize point-to-point fiber communication?
A:No.Two identical upstream sfp+ 10g bidi module cannot form network connections. Both modules transmit at 1270nm and wait for 1330nm signals, resulting in no signal reception and persistent port downtime. Paired upstream and downstream sfp+ 10g bidi module is required.
Q4: Does Brocade compatible sfp+ 10g bidi module require duplex LC fiber patch cords for operation?
A:No. This Brocade compatible sfp+ 10g bidi module uses a simplex LC port and single-fiber BiDi technology. It supports full-duplex 10G transmission over one single fiber strand and does not require duplex LC patch cords, saving fiber resources for networking deployment.
Q5: What is the standard working temperature range for commercial-grade sfp+ 10g bidi module for data centers?
A:HYTOPTODEVICE commercial-grade sfp+ 10g bidi module supports a standard 0°C to 70°C operating temperature range. It runs stably in climate-controlled data centers and enterprise server rooms for long-term 10G network operation.
Q6: Is 20km single-mode sfp+ 10g bidi module compatible with multi-mode fiber network architecture?
A: No. The 20km sfp+ 10g bidi module is strictly calibrated for OS1/OS2 single-mode fiber only. It is incompatible with multi-mode fiber (MMF) and will fail to establish any network link on MMF infrastructure.
Q7: Is an optical attenuator required for short-distance 2km links when using 20km sfp+ 10g bidi module?
A：No optical attenuator is needed for 2km short links with this 20km sfp+ 10g bidi module. Its factory-calibrated 3dBm max transmit power avoids receiver overload, ensuring stable short-distance single-fiber transmission.
Q8: Can Brocade-adapted sfp+ 10g bidi module support real-time DOM optical data monitoring?
A:Yes, all HYTOPTODEVICE sfp+ 10g bidi module support full DOM monitoring. You can check real-time optical power, temperature and voltage data via Brocade and Ruckus FastIron CLI commands for real-time module operation monitoring.
Q9: Can fixed-rate sfp+ 10g bidi module automatically downgrade to 1G legacy network speed?
A:No, this fixed-rate sfp+ 10g bidi module only supports native 10GBASE Ethernet. It does not support speed auto-negotiation and cannot downgrade to 1G or 100M legacy network speeds.
Q10: Is third-party verified sfp+ 10g bidi module comparable to original Brocade optical modules in stability?
A:HYTOPTODEVICE sfp+ 10g bidi module adopts premium OEM-grade components. Every unit is serialized and fully tested on real Brocade switches, delivering 99.9% uptime and equivalent stability to original Brocade optical modules.
Q11: Does mainstream compatible sfp+ 10g bidi module meet international safety and environmental protection certification standards?
A:Yes, this sfp+ 10g bidi module fully complies with SFP+ MSA, CE, FCC, RoHS and IEC 60825-1 laser safety standards, meeting global green and safety certification requirements for commercial networking.
Q12: Can high-speed sfp+ 10g bidi module be plugged into traditional 1G SFP hardware slots?
No, this high-speed sfp+ 10g bidi module features dedicated 10G SFP+ ASIC architecture. It is electrically incompatible with traditional 1G-only SFP slots and cannot work on 1G network ports.
Q13: Can this sfp+ 10g bidi module work normally on third-party network devices besides Brocade?
A:Yes, our multi-vendor compatible sfp+ 10g bidi module supports mainstream brands including Cisco, Huawei, Juniper, Arista, HPE and Dell. We also provide custom EEPROM coding to match any third-party device for plug-and-play use.
Q14: Do you provide customized coding and technical support for bulk-ordered sfp+ 10g bidi module?
A:Yes. We offer professional custom EEPROM coding and one-on-one remote technical guidance. Long-term partners can get free coding equipment and full technical authorization to independently rewrite and encode sfp+ 10g bidi module on demand.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
