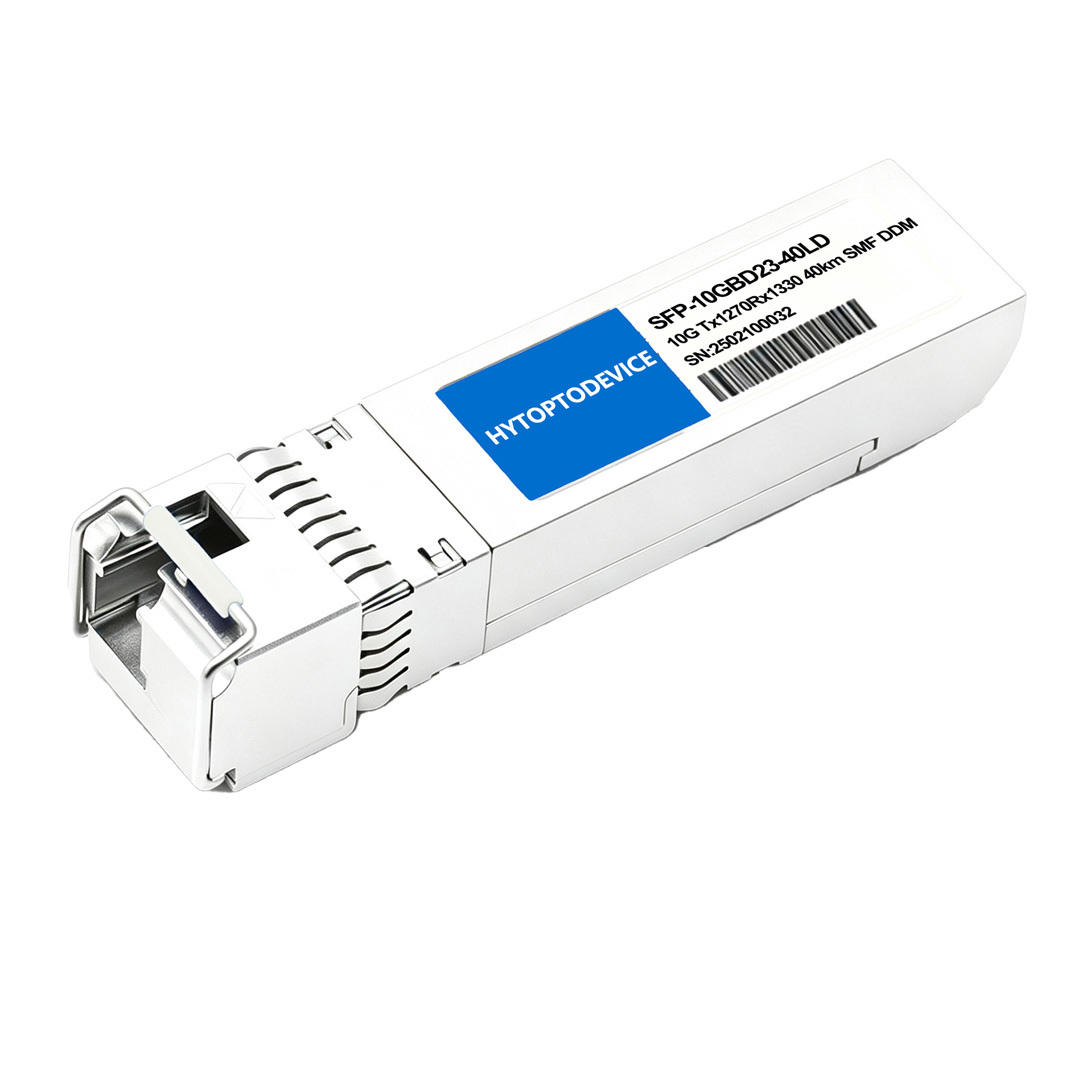

Brocade 10G-SFPP-BXU-40K Compatible BiDi 10G SFP+ Transceiver 10GBASE-BX40-U (SMF, 1270nm-TX/1330nm-RX, 40km, Simplex LC, DDM)
Product Overview
Our HYTOPTODEVICE Brocade 10G-SFPP-BXU-40K Compatible BiDi 10G SFP+ Transceiver is a long-range 10GBASE-BX40 uplink transceiver, built for 40km point-to-point transmission over single strand OS2 single mode fiber.

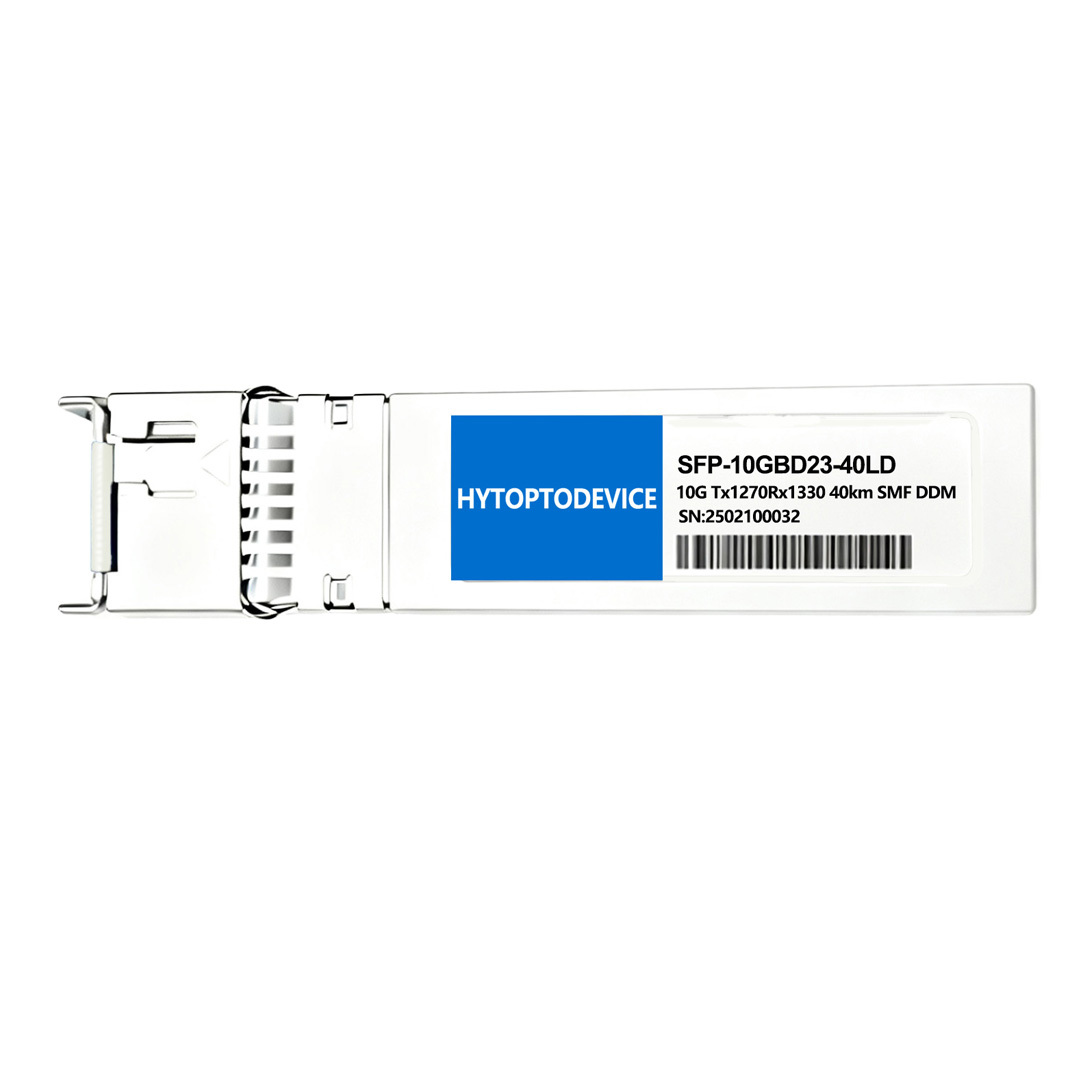

• Wavelength: Tx1270nm/Rx1330nm (Match Brocade 10G-SFPP-BXD-40K standard BiDi pairing)

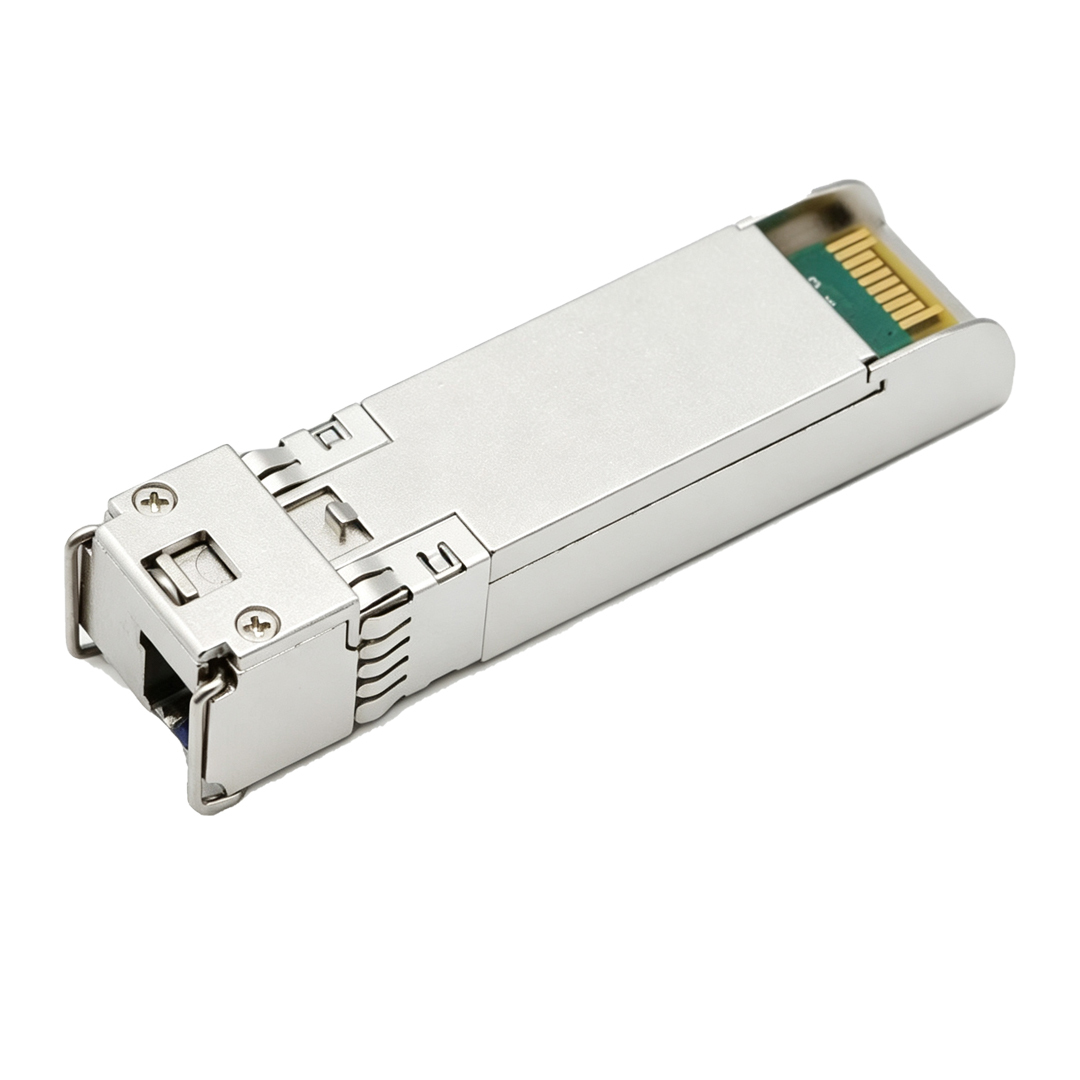

• Interface: Standard LC simplex connector
• Transmission Distance: Stable 40km @10Gbps SMF OS2
Compliant with Hot-Pluggable SFP+ MSA, SFF-8472,SFP-8431, IEEE 802.3ae and RoHS standards and fully DDM/DOM support, Delivering high-speed performance with optimized power efficiency, this DDM supported BiDi 10G SFP+ transceiver is the ideal solution for cross-campus backbones, metropolitan area network (MAN) rings, and long-range data center interconnects (DCI). We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.
Key Technical Specifications
Our BiDi 10G SFP+ Transceiver is factory-calibrated and fully tested for optical stability, low bit error rate and consistent interoperability. Adopting high-quality DFB laser and PIN receiver chips, it supports real-time DDM monitoring and safe hot-swappable operation. Below full parameter table matches Brocade 10G-SFPP-BXU-40K industrial BiDi standard, zero compatibility risks after switch firmware upgrades.
| Brocade compatible |
10G-SFPP-BXU-40K |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
40km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-1.0~+5dBm |
Receiver Sensitivity |
< -15dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |

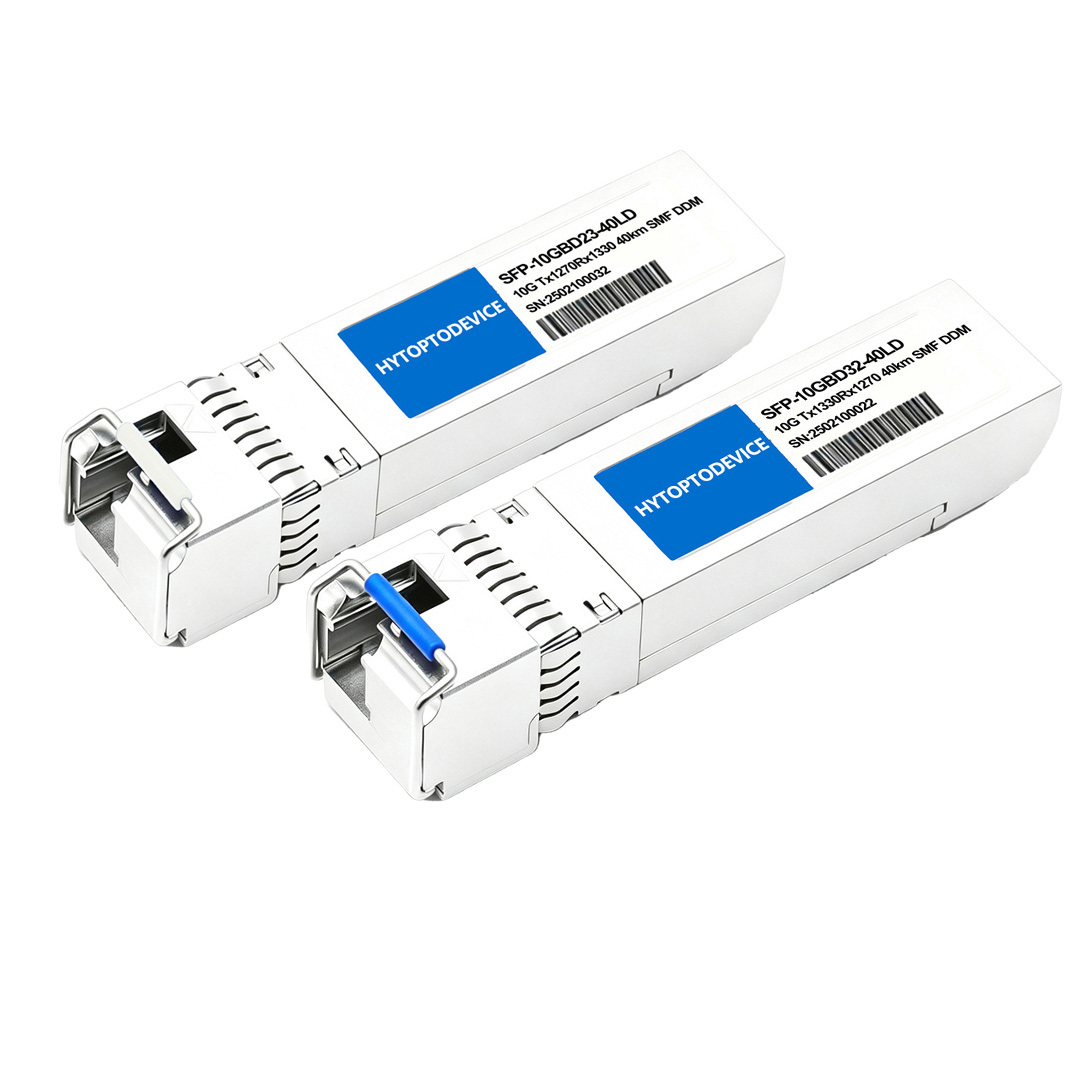

Pairing Guidance
Single-strand BiDi optical transmission relies on reverse wavelength pairing to achieve bidirectional data exchange, and this BiDi 10G SFP+ Transceiver strictly follows Brocade pairing protocols. The HYTOPTODEVICE Brocade 10G-SFPP-BXU-40K module (TX1270nm/RX1330nm) must be paired with 10G-SFPP-BXD-40K (TX1330nm/RX1270nm) to establish a valid 40km 10G fiber link. Deploying two identical BXU-40K modules will result in complete link failure. To eliminate on-site configuration errors, HYTOPTODEVICE provides pre-tested, factory-matched module pairs for all bulk orders of this BiDi 10G SFP+ Transceiver.
The Required Matched Pairs here: 10G SFP+ BiDi Tx 1330nm / Rx 1270nm 40km module
Full Compatibility List & Supported Network Hardware
1.Brocade Native Compatibility
This HYTOPTODEVICE BiDi 10G SFP+ Transceiver realizes zero-configuration plug-and-play operation on mainstream Brocade network devices, requiring no manual CLI setup or firmware upgrades and fully matching 10G-SFPP-BXU-40K official specifications. Verified compatible Brocade device models are listed below:
1. Brocade ICX Series Enterprise Switches
ICX 6430, ICX 6450, ICX 6610, ICX 6650, ICX 7150, ICX 7250, ICX 7450 10G uplink switches
2. Brocade VDX Series Data Center Switches
VDX 6710, VDX 6720, VDX 6730, VDX 6740 high-density 10G core switching platforms
3. Brocade FAS Series Storage & Network Gateways
FAS series network storage gateway devices supporting SFP+ 10G fiber expansion ports
4. Brocade MLX Series Core Routers
MLX-8, MLX-16, MLX-32 enterprise core router platforms with 10G SFP+ interface slots
2.Multi-Brand Cross Compatibility
Built to universal SFP+ MSA standards, HYTOPTODEVICE’s Brocade-compatible BiDi 10G SFP+ 40KM Transceiver unlocks OEM vendor lock-in for hybrid multi-vendor metro networks.
- Open-Brand (Plug-and-Play): Fortinet, Ubiquiti, MikroTik, D-Link, Zyxel and other open switches
- Locked-Brand (Custom Coding): Cisco, H3C, Huawei, Dell, Juniper, Ruijie, fully compatible with latest Ciena OS firmware
3.Free Custom EEPROM Re-Flash Service
Complimentary permanent EEPROM rewrite for all bulk orders of SFP+ 10G BiDi 40KM Transceiver. Upgrade Brocade OS or migrate modules to other brand racks; our team re-codes firmware free of charge to maintain stable 40km single-fiber bidirectional links for evolving multi-vendor metro architectures.
Primary Application Scenarios
Versatile commercial BiDi 10G SFP+ Transceiver optimized for cost-saving single-fiber 10G long-range networking across enterprise, campus and ISP scenarios.
1. Brocade switch long-distance 10G uplink deployment, saving fiber core resources with single-strand BiDi 10G SFP+ Transceiver
2. Cross-building enterprise campus 40km 10G interconnection using high-stability BiDi 10G SFP+ transceiver
3. Commercial outdoor cabinet long-range 10G signal transmission with reliable BiDi 10G SFP+ Transceiver
4. ISP last-mile broadband access and remote base station 10G networking with cost-effective BiDi 10G SFP+ optic
5. Enterprise 10G structured cabling optimization, lowering project construction costs via single-fiber BiDi 10G SFP+ Transceiver deployment
Connectivity Solutions(Applications)
1.Switch-to-Switch 10G BiDi Single Fiber Uplink
Deploy paired BiDi transceivers between core and aggregation switches for single-fiber 10G uplinks, saving fiber resources for campus expansion and datacenter stacking projects.
2.Switch-to-10G SFP+ NIC Server Long Distance Link
Create single-fiber high-speed links between core switches and server NICs, eliminating gigabit bandwidth bottlenecks for cloud storage and high-performance workstations.
3.Enterprise 10G Single Fiber Structured Cabling System Layout
Perfectly matched with OS2 simplex single-mode structured cabling, realizing end-to-end 10G transmission across access, aggregation and core layers for office parks and commercial buildings.
Features | Maximized Fiber Utilization
Maximize Fiber Efficiency in Metro Networks with BiDi 10G SFP+ Transceiver
This Brocade compatible BiDi 10G SFP+ Transceiver achieves bidirectional 10G transmission via a single fiber strand. Replacing traditional dual-fiber cabling layouts, it significantly boosts existing fiber utilization, saves 50% physical fiber resources, and delivers cost-efficient stable 40km long-reach links for layered Brocade metro core-to-access network construction. Compact SFP+ form factor, low power consumption and hot-swappable design simplify field deployment and lower long-term cabinet OPEX.
FAQ
Q1: Why do brand-new HYTOPTODEVICE BiDi 10G SFP+ Transceiver modules show completely dead links on Brocade 40km networks?
A: The main cause is incorrect same-module installation at both link ends. BiDi 10G SFP+ Transceiver requires strict cross-wavelength pairing. The TX1270/RX1330 HYTOPTODEVICE module must be matched with a TX1330/RX1270 paired module to establish valid bidirectional communication for Brocade single-fiber networking.
Q2: How to manage HYTOPTODEVICE BiDi 10G SFP+ Transceiver port mapping in high-density patch panels without messy documentation?
A: Traditional dual-fiber network documentation standards cannot adapt to single-port alternating TX/RX wavelength characteristics of BiDi 10G SFP+ Transceiver. Standardized and meticulous custom labeling is required to accurately record wavelength pairing rules, effectively solving patch panel mapping and documentation confusion for Brocade dense cabling scenarios.
Q3: Can HYTOPTODEVICE 40km-rated BiDi 10G SFP+ Transceiver work stably on extended 42km rerouted fiber links for Brocade networks?
A: Stable operation is almost impossible. HYTOPTODEVICE BiDi 10G SFP+ Transceiver features a strict 40km fixed optical power budget with no redundant attenuation margin. Any fiber distance extension beyond the standard range will cause insufficient signal power and link failure on Brocade long-distance transmission lines.
Q4: Why do Brocade 40km links with normal optical power still generate high BER via HYTOPTODEVICE BiDi 10G SFP+ Transceiver?
A: Long-span 40km transmission will produce cumulative chromatic dispersion at 1270nm/1330nm working wavelengths of BiDi 10G SFP+ Transceiver. Signal distortion caused by dispersion triggers high bit error rates, even if the module’s real-time optical power monitoring data remains within the normal range for Brocade networking.
Q5: Why is it difficult to stabilize fusion splicing for Brocade links using HYTOPTODEVICE BiDi 10G SFP+ Transceiver?
A: BiDi 10G SFP+ Transceiver bidirectional transmission is extremely sensitive to Optical Return Loss (ORL). Unqualified mechanical connections or poor fusion splicing produce reverse light reflection, interfering with normal bidirectional data transmission and leading to unstable splicing results for Brocade single-fiber links.
Q6: Why do Brocade aerial fiber links using HYTOPTODEVICE BiDi 10G SFP+ Transceiver flap during windy weather?
A: Wind-induced aerial fiber vibration changes optical polarization and generates micro-reflection ORL interference on single fiber strands. This abnormal optical signal disturbance confuses the receiving end of HYTOPTODEVICE BiDi 10G SFP+ Transceiver, resulting in intermittent link flapping on outdoor Brocade network lines.
Q7: Why does DDM monitoring show frequent rapid RX power fluctuations on HYTOPTODEVICE BiDi 10G SFP+ Transceiver Brocade links?
A: Real-time RX power jitter is not caused by unstable laser output. It is typical abnormal feedback from high optical return loss and fiber backscattering, which interferes with the signal receiving system of BiDi 10G SFP+ Transceiver and triggers continuous DDM data fluctuations on Brocade network equipment.
Q8: Why is it hard to find alternative vendor replacement modules for Brocade 40km BiDi 10G SFP+ Transceiver in urgent scenarios?
A: Compared with mainstream dual-fiber 10G LR modules, 40km single-fiber BiDi 10G SFP+ Transceiver belongs to niche networking hardware. Few manufacturers stock standard-compliant modules in bulk, making emergency replacement difficult for Brocade long-distance network maintenance.
Q9: Is it cost-worthy to use 40km-rated HYTOPTODEVICE BiDi 10G SFP+ Transceiver for short 15km Brocade fiber links?
A: It is an unnecessary cost waste. Purchasing premium 40km long-reach BiDi 10G SFP+ Transceiver for short-distance 15km transmission requires additional attenuators to avoid receiver overload, increasing extra procurement and deployment costs for Brocade short-range networking projects.
Q10: Why do 40km long-distance Brocade network turn-ups with HYTOPTODEVICE BiDi 10G SFP+ Transceiver often face deployment delays?
A: The core reason is habitual wiring errors by field technicians. Most engineers mistakenly use standard duplex patch cords, while HYTOPTODEVICE BiDi 10G SFP+ Transceiver single-fiber transmission requires dedicated simplex patch cords, resulting in repeated debugging and delayed project delivery for Brocade 40km network deployment.
