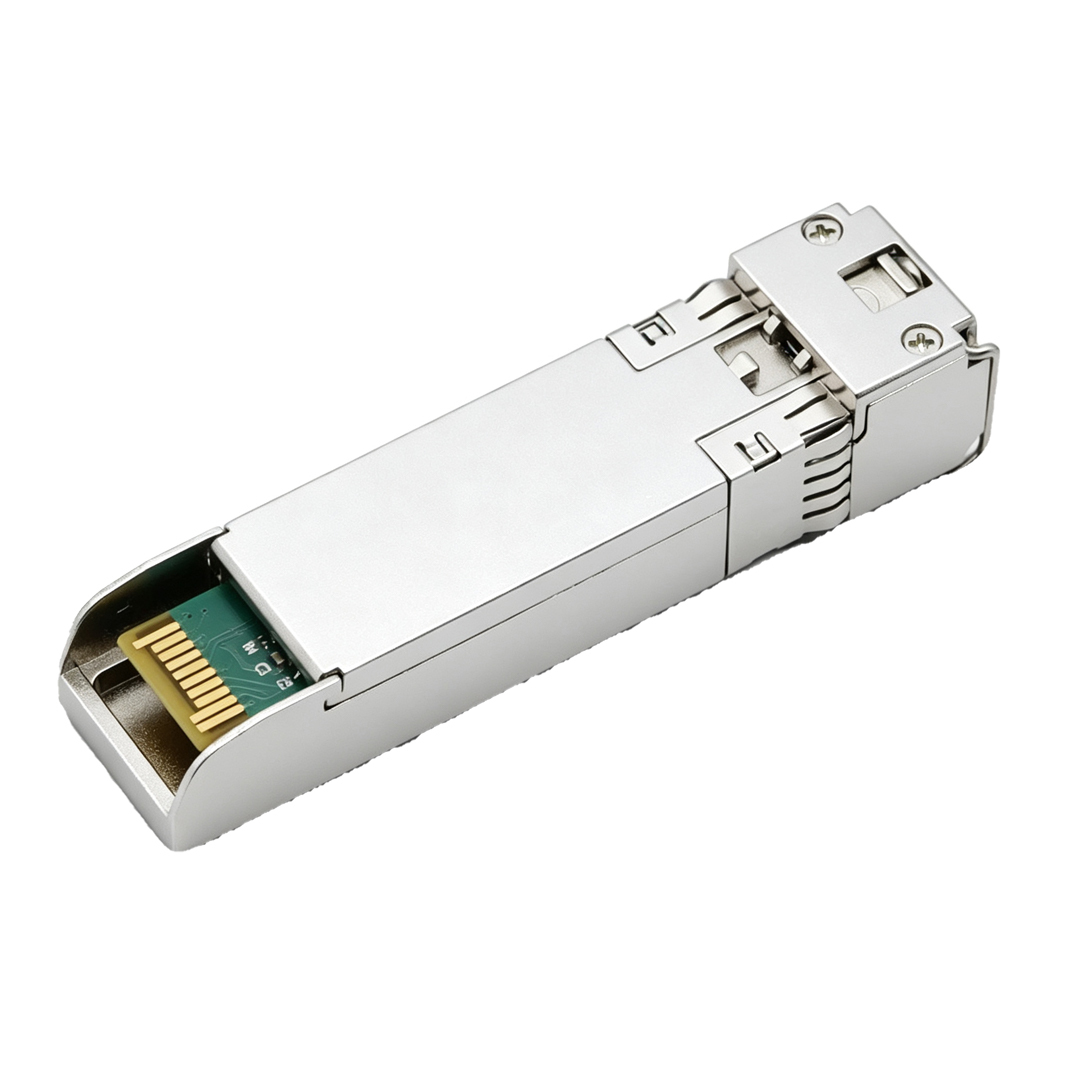

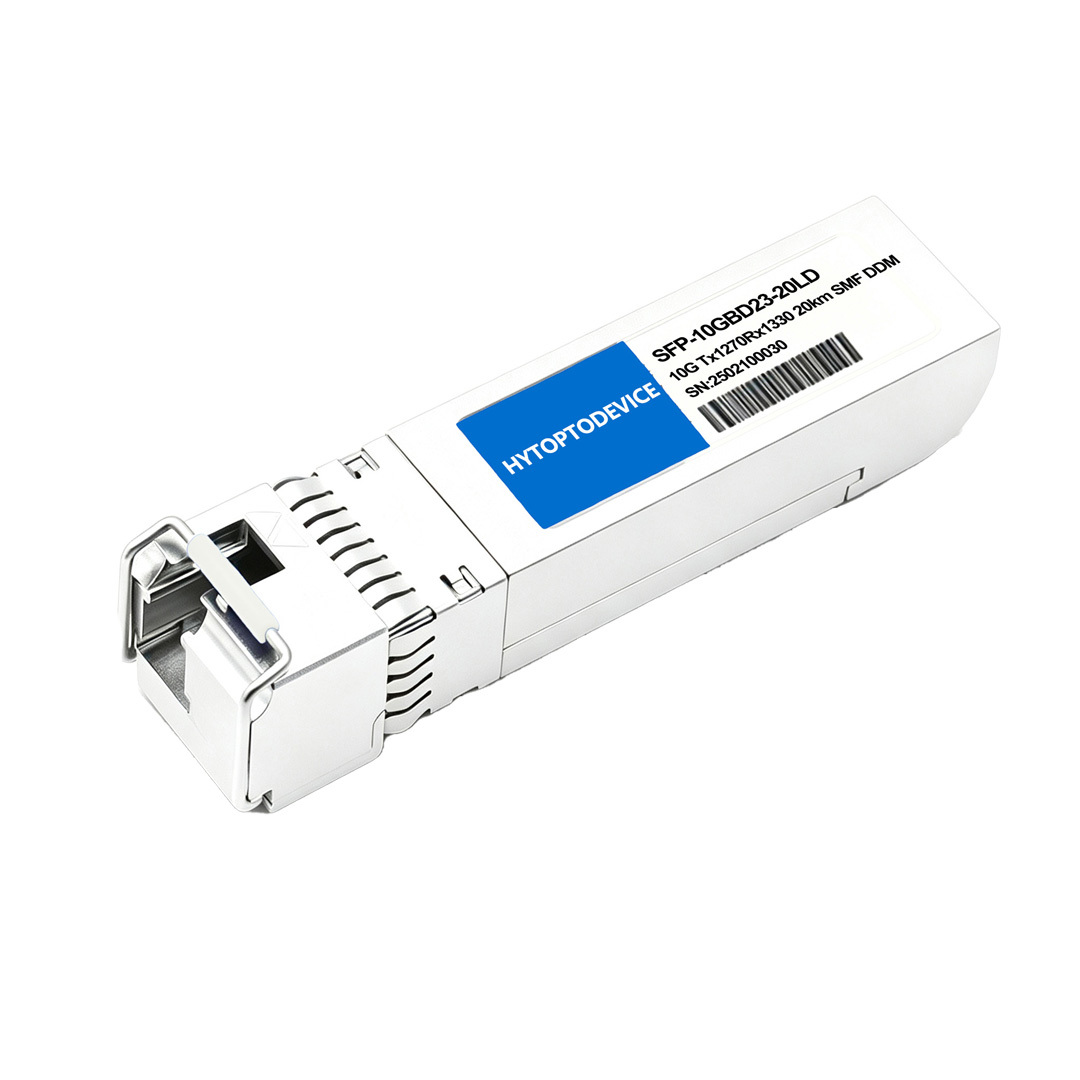

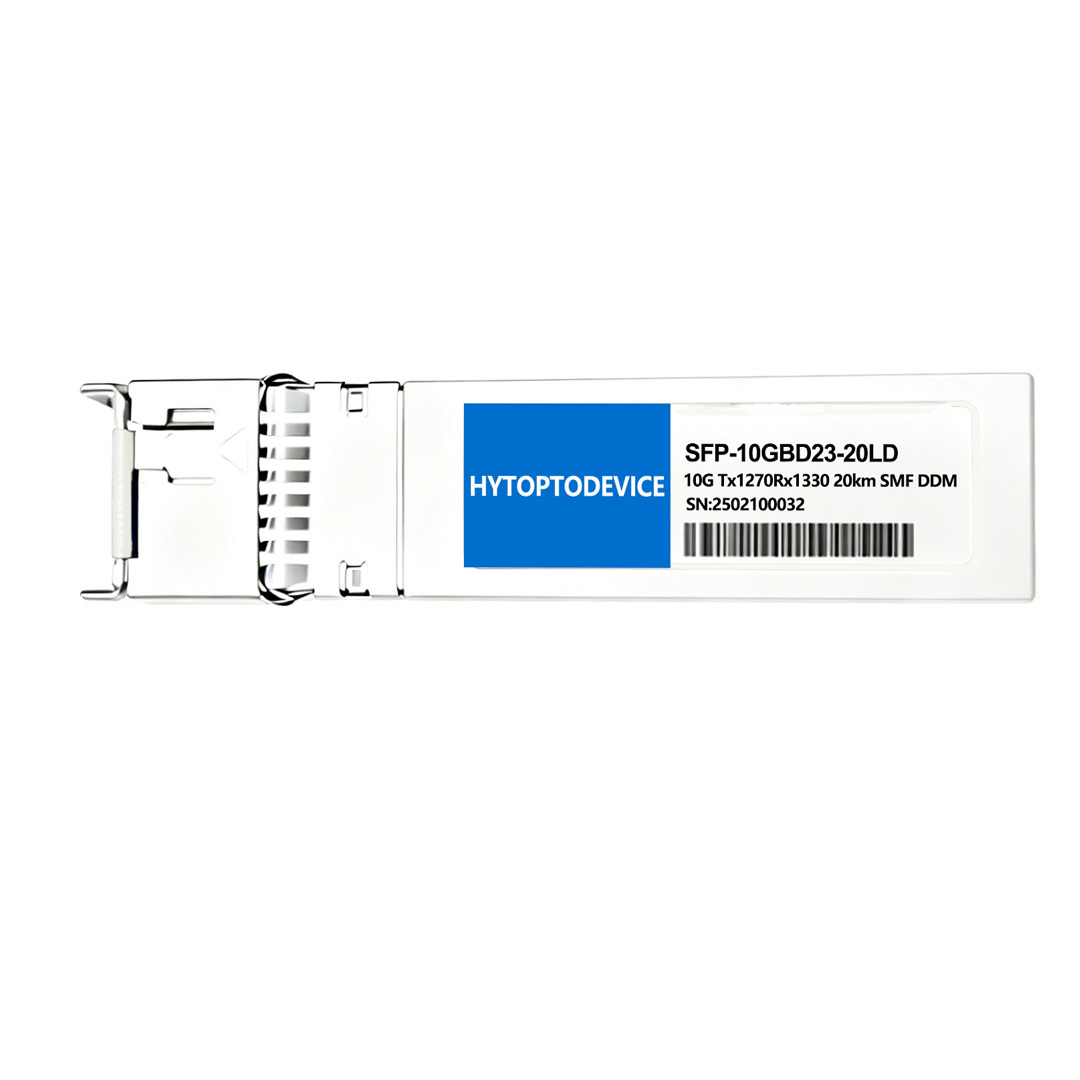

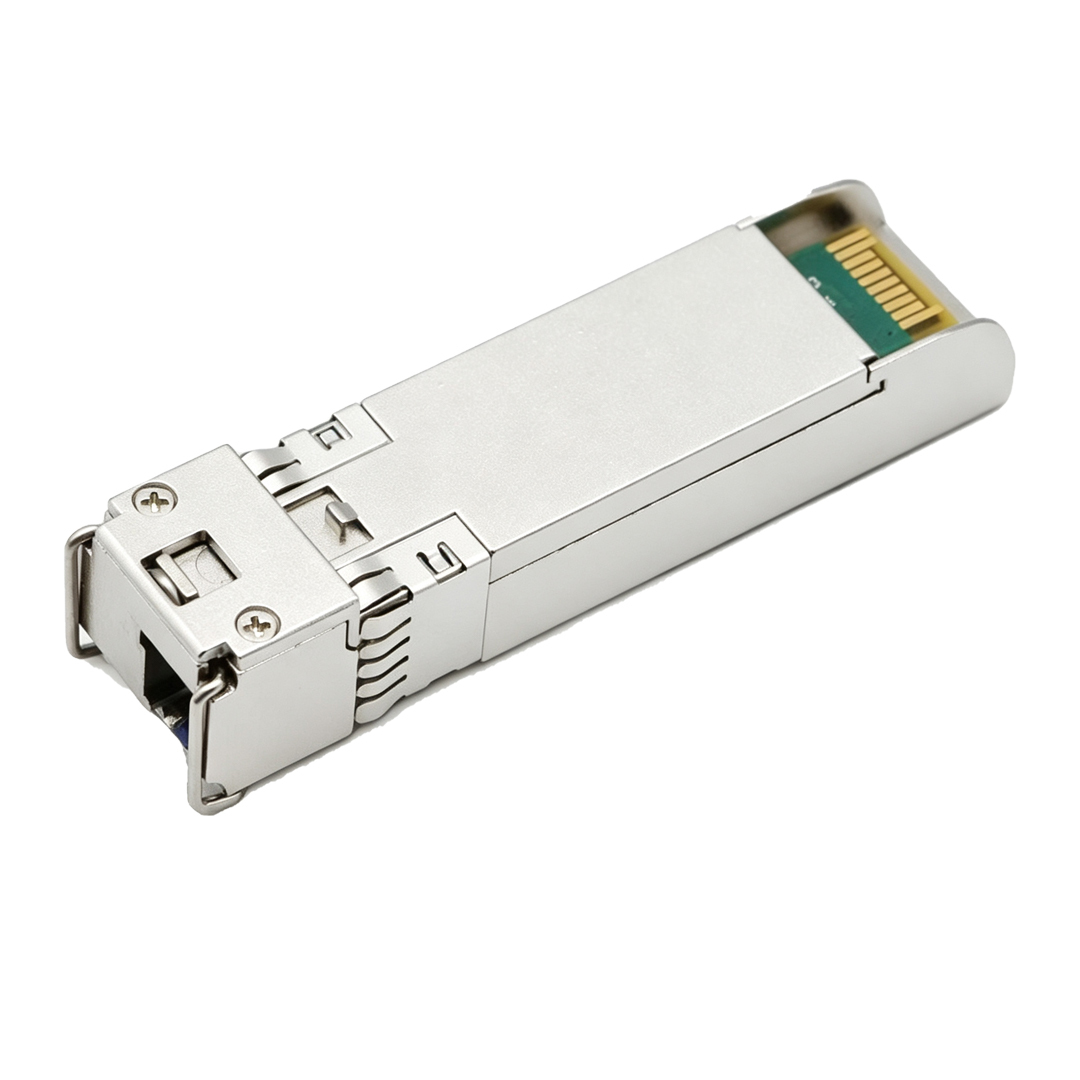

Arista Compatible SFP-10G-LXRBD-U 10G BiDi SFP+ Transceiver Module 10GBASE-BX20-U (SMF, 1270nm-TX/1330nm-RX, 20km, LC, DDM)
Product Overview
The Arista matching SFP-10G-LXRBD-U optical transceiver comes equipped with a simplex LC port and sustains reliable 20km signal transmission across G.652 single-mode fiber lines. This 10G BiDi SFP+ module enables bidirectional 10G data flow through only one individual fiber strand, cutting physical cabling expenditure and maximizing utilization of existing fiber infrastructure resources. Manufactured entirely by HYTOPTODEVICE, this 10GBASE-BX20-U 10G BiDi SFP+ module complies fully with SFP+ MSA, IEEE 802.3ae and SFF-8431 industry standard specifications. Additionally, this 10G fiber optic module integrates built-in live DDM diagnostic tools to monitor real-time operational metrics continuously. It delivers stable plug-and-play interoperability with Arista EOS platforms alongside more than 150 varieties of mainstream third-party network hardware. ideal for 10 Gigabit Ethernet data center interconnects and enterprise core networking.
Key Technical Specifications
Below you will find complete optical, electrical and mechanical performance parameters for our 10G BiDi SFP+ module engineered as a drop-in match for Arista SFP-10G-LXRBD-U (Tx1270nm transmit / Rx1330nm receive, 20km single-mode fiber, simplex LC, live DDM). Every production batch undergoes precise optical & electrical testing and calibration; formal downloadable optical performance logs for this 10G BiDi SFP+ module can be issued to clients upon formal request.
| Arista Compatible |
SFP-10G-LXRBD-U |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-3.0~+2.0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
Receiver Overload |
0.5dBm |
| Protocols |
10G Ethernet, MSA Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Pairing Guidance
Different from traditional dual-fiber optical modules, 10G BiDi SFP+ Transceiver 20km relies on paired complementary wavelengths to establish effective single-fiber links. The Arista SFP-10G-LXRBD-U compatible 1270nm TX/1330nm RX module must be used in pairs with a reverse 1330nm TX/1270nm RX BiDi module at the opposite end of the fiber. Deploying two identical single-wavelength 10G BiDi SFP+ 20km modules will cause complete link failure, and Arista switch CLI cannot accurately identify wavelength mismatch faults, leading to difficult troubleshooting. HYTOPTODEVICE provides pre-matched paired module packages for Arista network projects, standardizing on-site deployment processes and ensuring one-time successful link activation for 20km long-distance single-fiber transmission.
The Required Matched Pairs here: 10G SFP+ BiDi Tx 1330nm / Rx 1270nm 20km module
Full Compatibility List & Multi-Brand Supported Network Hardware
1.Arista Exclusive Compatible Hardware & Validated Switch Series
Our zero-error plug-and-play 10G BiDi SFP+ module is preloaded with authentic Arista standard EEPROM identification coding, eliminating unrecognized module warning alerts after full physical real-switch insertion validation across all listed hardware:
-
Arista 7050 Series Switches: 7050QX, 7050SX, 7050TX, and 7050X3 Series high-density leaf/spine switches.
-
Arista 7150 Series Ultra-Low Latency Switches: 7150S-24, 7150S-52, and 7150S-64.
-
Arista 7280 Series Routing Platforms: 7280SE, 7280SR, and 7280TR network edge and data center interconnect switches.
-
Arista 7300 Series Modular Switches: 7300X and 7320X series line cards featuring 10G SFP+ slot densiti
2.Cross-Vendor Interoperability Explanation for Over 150 Global Hardware Lines
HYTOPTODEVICE maintains a dedicated optical module interoperability validation laboratory covering over 150 mainstream worldwide network hardware manufacturers. Each office-grade 10G BiDi SFP+ module completes full physical upper-machine deployment validation on Cisco, H3C, Juniper, Mikrotik and other popular enterprise switching platforms.
Unlike uncalibrated generic transceivers that trigger persistent link drops or automatic port error-disable protection modes, our fully validated real hardware 10G BiDi SFP+ module maintains consistent single-fiber bidirectional 10G throughput within mixed-brand network environments. We supply standardized cross-vendor interoperability records, complete optical performance logs and custom recorded test clips for global system integrators and optical hardware distributors.
Primary Application Scenarios
“Why is my 10G BiDi link failing to establish a connection?”“Can I mix different speeds or wavelengths on a 10G BiDi fiber line?” Maybe you will encounter the puzzle. the real answer is : For a successful 10G BiDi link, the transceivers at both ends must operate at identical data rates and feature matching, complementary wavelengths; otherwise, the connection will fail.such as matched Tx1270/Rx1330 and Tx1330/Rx1270 10G.
This 10G BiDi SFP+ module must be deployed as a matched pair alongside its complementary reverse-wavelength BiDi counterpart, fitted separately onto the two opposing ends of your single-strand fiber patch cord to establish functional bidirectional 10G data links. Optimized for fiber-restricted network upgrades and limited cable tray deployments, this 10G BiDi SFP+ module maximizes single-fiber bandwidth efficiency while simplifying enterprise network expansion workflows. Below are its most prevalent commercial installation use cases:
- 10G BiDi SFP+ module for multi-building campus single-fiber trunk lines, halving physical fiber deployment costs for long-distance point-to-point enterprise network upgrades using simplex single-strand OS2 optical cable.
- 10G BiDi SFP+ module for top-of-rack switch to server NIC uplink links, creating consistent high-speed 10G single-fiber data connections between core rack aggregation switches and local server network interface cards.
- 10G BiDi SFP+ module for standardized enterprise rack structured wiring layout, aligning with industry-standard cable management frameworks for indoor server rooms and multi-story building backbone wiring infrastructure.
- Bulk factory supply office-grade 10G BiDi SFP+ module for corporate office network expansion projects, maintaining steady signal performance inside climate-controlled indoor server cabinets within standard 0–70°C operating thresholds.
- Budget friendly 10G BiDi SFP+ module replacement for Arista original optics for ISP FTTB access network construction, reducing large-volume procurement overhead compared to premium Arista factory OEM optical modules.
Connectivity Solutions(Applications)
Our simplex LC single-mode 10G BiDi SFP+ module supports three widely adopted enterprise network installation architectures; refer to the three attached schematic layout drawings:
1.10G Switch-to-Switch Interconnection Layout:
Deploy paired matching 10G BiDi SFP+ module units between two enterprise core aggregation switches to construct long-distance single-fiber backbone trunk connections.
2.10G Switch-to-NIC Server Uplink Layout:
Implement 10G BiDi SFP+ module hardware to link central rack aggregation switches and onsite server NIC hardware for reliable single-fiber 10G uplink data transmission.
3.10G Standardized Structured Cabling Rack Layout:
Rack-mounted 10G BiDi SFP+ module paired with cable management hardware for organized, compliant multi-story building structured wiring deployments.
FAQ for Arista Compatible 10G BiDi SFP+ Module
Q1: Can Tx1270/Rx1330 20km 10G BiDi SFP+ module access complete DOM data via native Arista EOS CLI?
A: All HYTOPTODEVICE 10G BiDi SFP+ module fully supports standard DOM digital monitoring. Network admins check real-time optical power, temperature and voltage directly through Arista’s built-in show interfaces transceiver detail command.
Q2: Is single-fiber Arista-matched 10G BiDi SFP+ module capable of auto-negotiating down to legacy 1G Ethernet bandwidth?
A: This HYTOPTODEVICE 10G BiDi SFP+ module is locked at fixed 10GBASE speed. It cannot downgrade to 1G or 100M legacy network rates and only works under 10G Ethernet transmission.
Q3: Is factory-tested Arista coded 10G BiDi SFP+ module stable enough to replace genuine Arista original optical hardware?
A: HYTOPTODEVICE 10G BiDi SFP+ module adopts high-grade optoelectronic chips consistent with OEM standards. Every unit undergoes full real Arista switch aging verification with independent serial numbers, securing stable 99.9% long-term network operation.
Q4: Does commercial simplex LC 10G BiDi SFP+ module meet international environmental and laser safety certification standards?
A: Our HYTOPTODEVICE 10G BiDi SFP+ module strictly complies with SFP+ MSA, CE, FCC, RoHS and IEC 60825-1 laser safety norms, satisfying global enterprise network deployment green and safety regulations.
Q5: Can Arista customized Tx1270/Rx1330 10G BiDi SFP+ module fit into traditional 1G-only SFP hardware slots?
A: The HYTOPTODEVICE 10G BiDi SFP+ module relies on dedicated 10G SFP+ chip architecture. It is electrically incompatible with 1G SFP slots and cannot be recognized or activated on 1G switches.
Q6: Can Arista pre-programmed 10G BiDi SFP+ module Tx1270/Rx1330 run normally on Cisco, Juniper and other third-party brand switches?
A: This HYTOPTODEVICE 10G BiDi SFP+ module is pre-flashed with exclusive Arista identification codes. To avoid alarm logs on Cisco/Juniper devices, select our brand-customized BiDi modules matching your target switch brand.
Q7: What peak power draw will high-density rack deployed 20km 10G BiDi SFP+ module generate during continuous operation?
A: HYTOPTODEVICE optimized the power circuit of this 10G BiDi SFP+ module, with maximum power consumption controlled below 1.5W, effectively lowering heat accumulation in densely packed Arista switch cabinets.
Q8: Is single-mode simplex 10G BiDi SFP+ module Tx1270/Rx1330 suitable for SDH and SONET telecom transmission backbone systems?
A: HYTOPTODEVICE 10G BiDi SFP+ module is exclusively calibrated for IEEE 802.3ae 10G Ethernet and fiber channel networks, not optimized for SDH/SONET telecom signal transmission.
Q9: Which fiber end-face polishing type matches 20km Arista compatible 10G BiDi SFP+ module simplex LC port?
A: HYTOPTODEVICE 10G BiDi SFP+ module adopts standard blue LC/UPC simplex interface. Green angled LC/APC patch cords are forbidden, as they trigger severe optical attenuation and link failure.
Q10: Why does Arista switch port light up for paired-wavelength 10G BiDi SFP+ module yet fail to receive any data traffic?
A: If HYTOPTODEVICE 10G BiDi SFP+ module shows link light without packet reception, issues usually stem from misconfigured MTU, STP port blocking or inconsistent VLAN tagging on the Arista interface.
