| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | SFP-10G-ZR | |
| 2 | Cisco | SFP-10G-ZR-S | |
| 3 | Alcatel-Lucent | SFP-10G-ZR | |
| 4 | Arista Networks | SFP-10G-ZR | |
| 5 | Huawei | SFP-10G-ZR | |
| 6 | Brocade | 10G-SFPP-ZR | |
| 7 | HPE(H3C) | SFP-10G-ZR | |
| 8 | Cisco Meraki | MA-SFP-10GB-ZR | |
| 9 | Juniper Networks | EX-SFP-10GE-ZR |

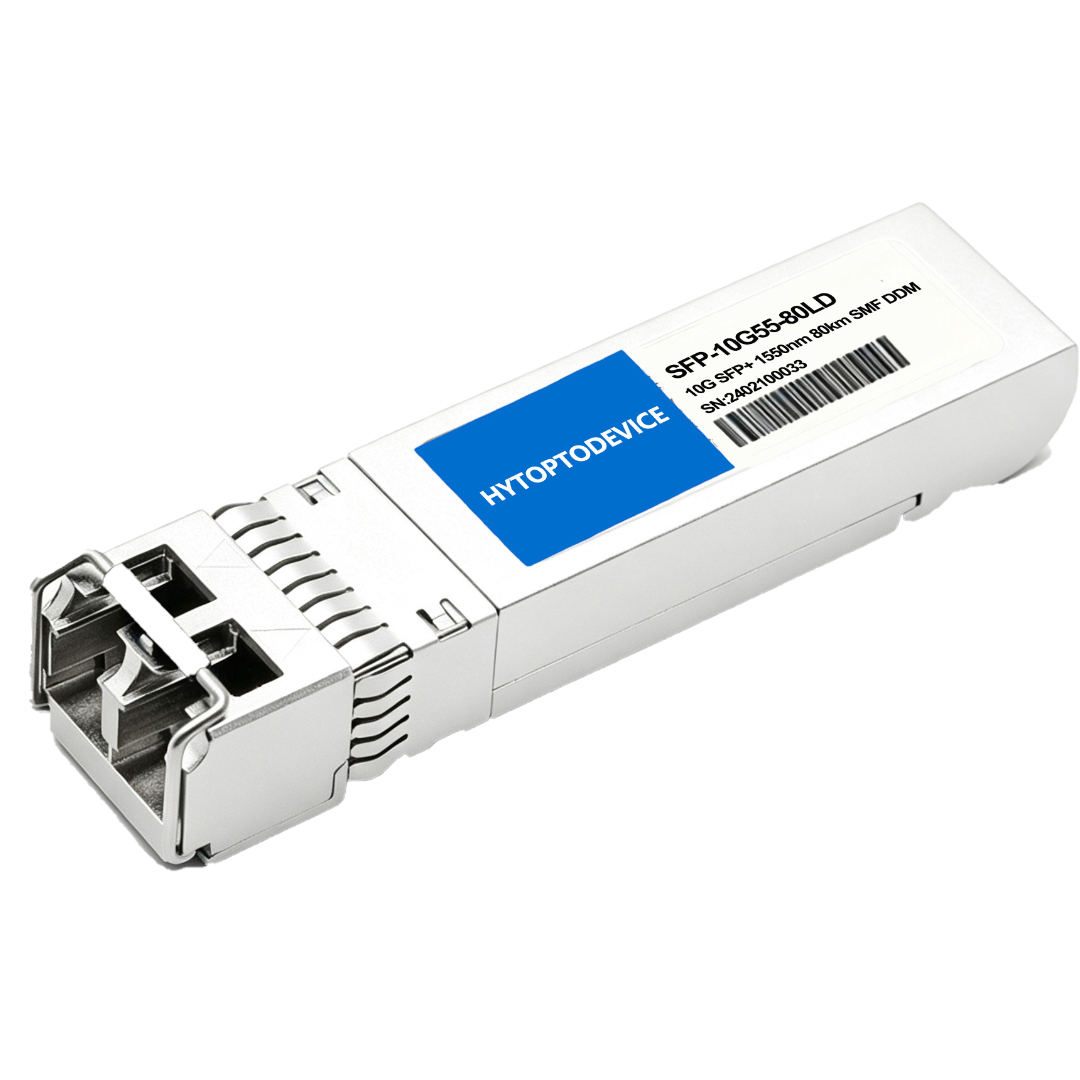

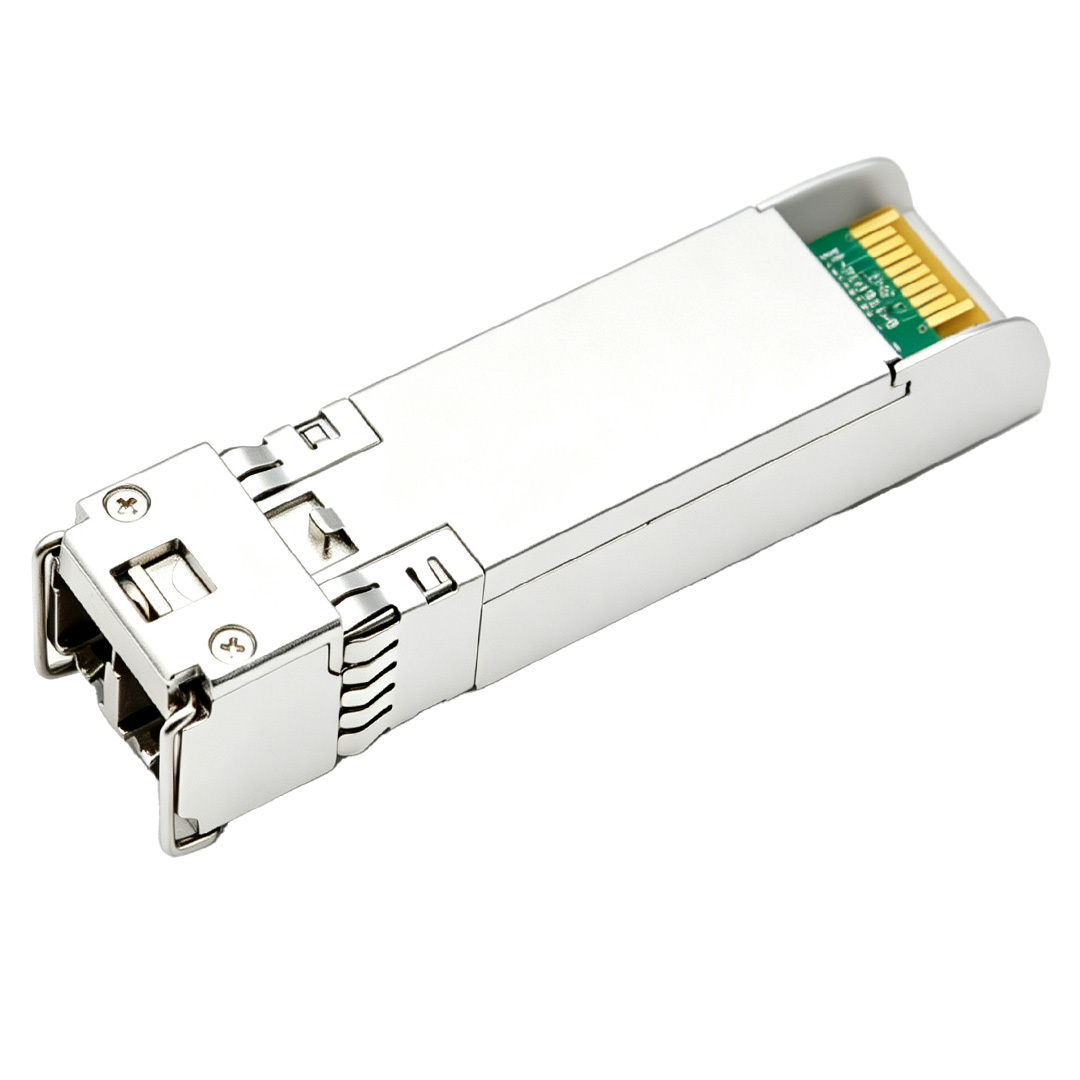

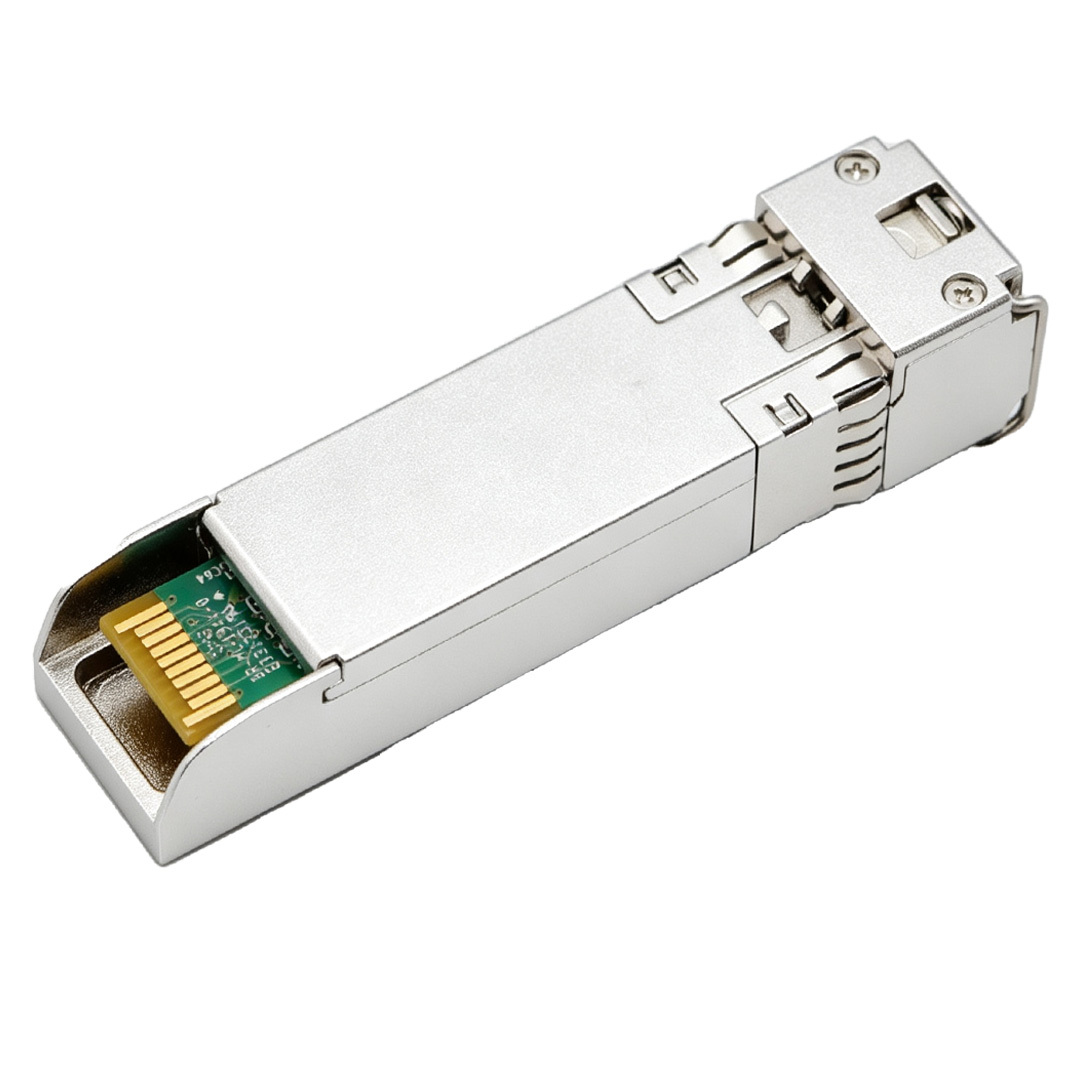

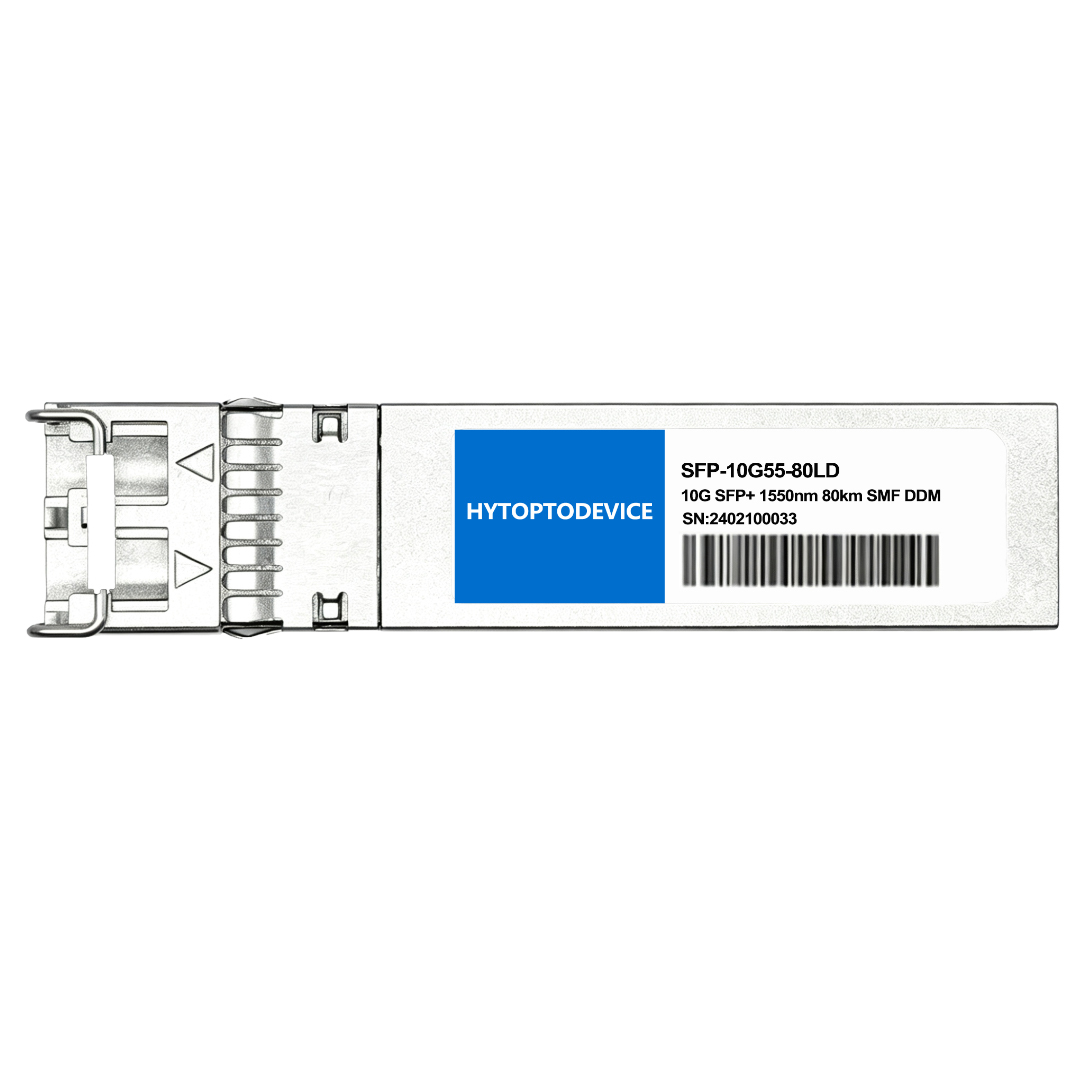

10G SFP+ ZR Optical Transceiver Module Compatible Cisco Meraki MA-SFP-10GB-ZR (10GBASE-ZR, SMF, 1550nm, 80km, LC, DOM) | HYTOPTODEVICE
HYTOPTODEVICE MA-SFP-10GB-ZR compatible Cisco Meraki is a high-performance,hot-pluggable 10GBASE-ZR SFP+ optical transceiver. It supports high-speed 10Gbps data transmission up to 80 kilometers (49.7 miles) over LC Duplex Connector with Single Mode Fiber(SMF). Integrating a cooled EML transmitter and a high-sensitivity APD receiver, this meraki 10gbase-zr optic replacement is specifically designed for long-haul 10-Gigabit Ethernet links within cloud-managed networks. Compliant with both SFP+MSA and IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432. With low latency and low power consumption, the meraki cloud managed 80km sfp+ module is ideal for data center, 10G Ethernet and Fibre Channel etc.
Key Technical Specifications of 10G SFP+ ZR
| Cisco Meraki Compatible | MA-SFP-10GB-ZR | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1550nm | Maxmum Transmission Distance | 80km |

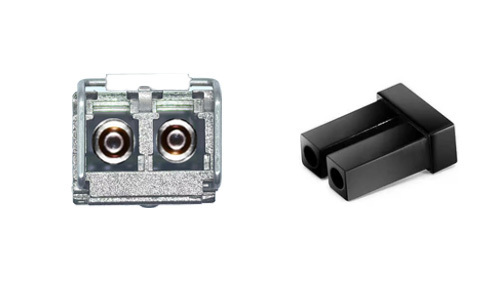

| Connector | Duplex LC | Transmitter Type | 1550nm EML |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 0~+4.5dBm | Receiver Sensitivity | < -23.0dBm |
| Power Consumption | ≤1.5W | Operation Temperature | 0 to 70°C (32 to 158°F) |
Full Compatibility List and Supported Devices of Compatible Cisco Meraki 10G SFP+ ZR
One of the biggest advantages of HYTOPTODEVICE compatible optical module is the full brand compatibility.Featuring stable plug-and-play performance for 10G Network Switches and industrial standard Compliance for Enterprise-Grade Networks. It helps enterprises cut hardware costs without sacrificing performance. Worried about compatibility? Don't be.hardware verified compability with Cisco,Huawei,Arista,Juniper. We deliver verified results on real module,real hardware. Video proof available upon request. Our meraki dashboard compatible ma-sfp-10gb-zr module is fully tested and certified to work seamlessly with the following Meraki equipments:
Aggregation Switches: MS410 Series (e.g., MS410-16, MS410-32), MS425 Series (e.g., MS425-16, MS425-32)
Stackable Layer 3 Access Switches (via 10G Uplink Ports): MS250 Series, MS350 Series, MS355 Series, MS390 Series, and MS450 Series.
High-Throughput Firewalls: MX250 and MX450 (utilizing the 10G SFP+ LAN/WAN ports).
Geographically Dispersed Campus Uplinks: Interconnecting remote corporate offices, warehouses, or secondary campuses directly back to a central Meraki aggregation switch over 80km spans.
Cloud-Managed Data Center Interconnect (DCI): Linking a corporate private data infrastructure to a remote backup site while maintaining unified visibility via the Meraki Dashboard.
Metro Ethernet Connectivity: Deployed by organizations utilizing dark fiber networks to route high-speed internet or WAN access across a city grid.
High-Capacity Remote Site Deployment: Extending secure network perimeters to far-reaching branch locations by anchoring long-haul links directly into an MX250/MX450 security appliance.
Technical Warning: When testing or deploying this SFP-10G-ZR 80km module over short distances (typically less than 30km), an optical attenuator (12dB to 15dB) must be used. Failure to attenuate the signal may cause permanent damage to the receiver due to optical overload.
Q1: Will this 10G SFP+ module trigger an "Unsupported Transceiver" alert in my Meraki Dashboard?
A1: No. HYTOPTODEVICE 10G modules are programmed with authentic Meraki vendor IDs and serial generation code. The dashboard will recognize the optic immediately, showing a clean green port status.
Q2: Can I see real-time optical power metrics (DOM) within the Meraki Dashboard?
A2: Yes. When plugged into an MS-series switch, the Meraki Dashboard displays real-time DDM/DOM data—including TX/RX power and temperature—under the individual port status tool.
Q3: What happens if a Meraki firmware update rolls out? Will it block this optic?
A3: No. HYTOPTODEVICE SFP+ 10G transceivers emulate original Meraki hardware signatures completely. Standard cloud firmware updates will not overwrite or reject the module's physical connection.
Q4: Will using this compatible transceiver void my Meraki enterprise warranty or license?
A4: No. Meraki cannot void your hardware warranty or terminate dashboard licensing for using third-party optics. If a port experiences physical issues, support may simply ask you to swap optics to isolate the root cause.
Q5: Can I test this 80km module on my desk using a short single-mode patch cable?
A5: Absolutely not without an inline optical attenuator. The high-gain APD receiver inside a ZR module will instantly blind or experience permanent physical burnout if exposed to raw, unattenuated 1550nm launch power.
Q6: What is the minimum optical loss or distance needed before patching directly?
A6: The link must have at least 14dB to 15dB of physical optical loss (roughly 40km of fiber). For any loop or link shorter than this, an external 10dB or 15dB fixed LC optical attenuator must be positioned on the RX line.
Q7: What is the calculated optical power budget?
A7: This 10G ZR module delivers a minimum 23dB power budget. Typical transmitter output lands between 0 to +4 dBm, and the receiver sensitivity drop-off limit is -23 dBm.
Q8: Can I operate this 10G ZR transceiver across Multi-Mode Fiber (OM3 or OM4) setups?
A8: No. The 1550nm wavelength and specialized long-haul laser assemblies are designed exclusively for Single-Mode Fiber (SMF) 9/125µm transport paths.
