| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | SFP-10G-ZR | |
| 2 | Cisco | SFP-10G-ZR-S | |
| 3 | Alcatel-Lucent | SFP-10G-ZR | |
| 4 | Arista Networks | SFP-10G-ZR | |
| 5 | Huawei | SFP-10G-ZR | |
| 6 | Brocade | 10G-SFPP-ZR | |
| 7 | HPE(H3C) | SFP-10G-ZR | |
| 8 | Cisco Meraki | MA-SFP-10GB-ZR | |
| 9 | Juniper Networks | EX-SFP-10GE-ZR |

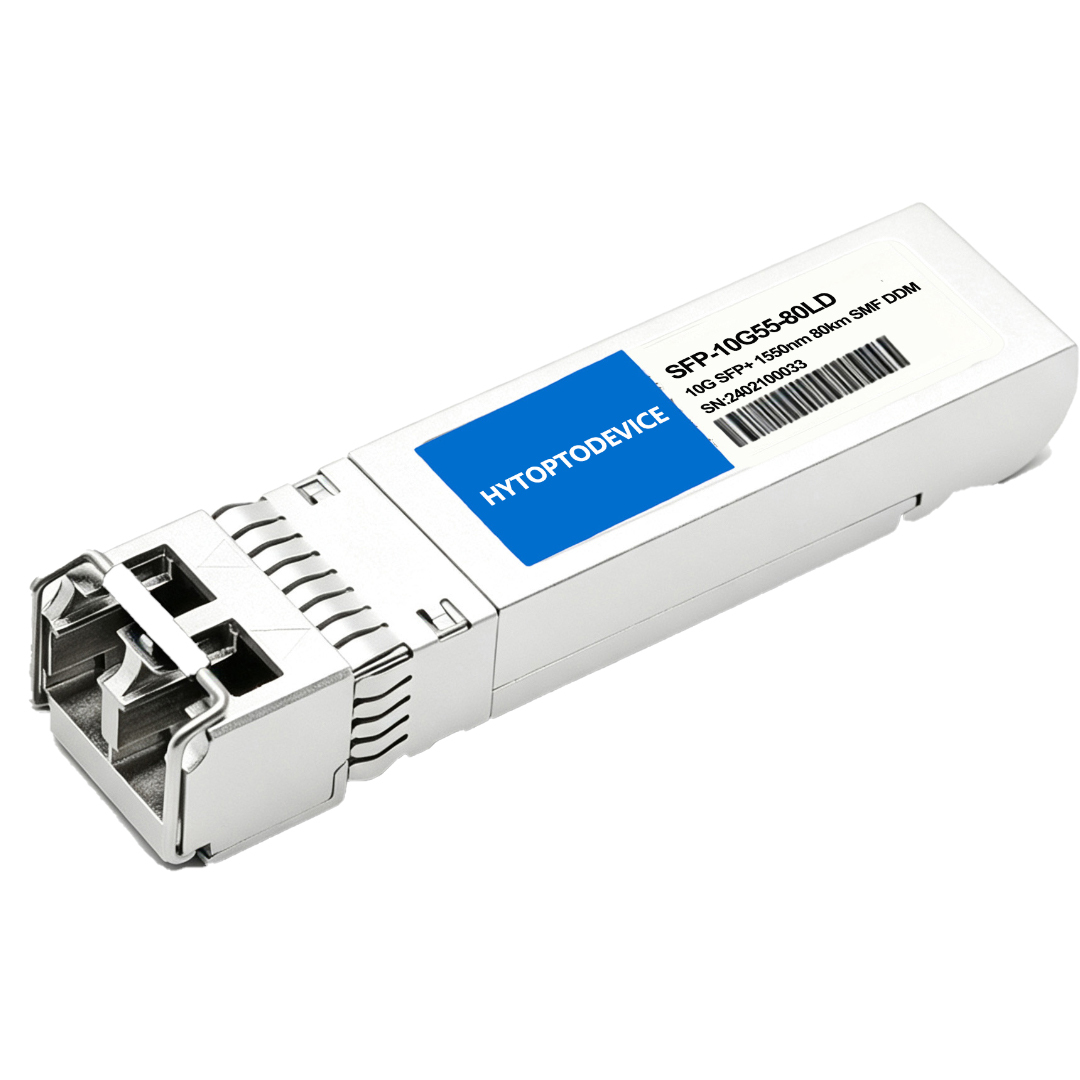

10G SFP+ ZR Optical Transceiver Module Compatible Brocade 10G-SFPP-ZR (10GBASE-ZR, SMF, 1550nm, 80km, LC, DOM) | HYTOPTODEVICE
HYTOPTODEVICE 10G-SFPP-ZR compatible Brocade is a high-performance,hot-pluggable 10GBASE-ZR SFP+ optical transceiver. It supports high-speed 10Gbps data transmission up to 80 kilometers (49.7 miles) over LC Duplex Connector with Single Mode Fiber(SMF). Integrating a cooled EML transmitter and a high-sensitivity APD receiver, this module is specifically designed for high-density storage area networks (SANs), long-haul 10-Gigabit Ethernet links, and metro-aggregation layers. Compliant with both SFP+MSA and IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432. With low latency and low power consumption, the Brocade compatible sfp+ zr transceiver is ideal for data center, 10G Ethernet and Fibre Channel etc.
Key Technical Specifications of 10G SFP+ ZR
| Brocade Compatible | 10G-SFPP-ZR | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1550nm | Maxmum Transmission Distance | 80km |
| Connector | Duplex LC | Transmitter Type | 1550nm EML |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 0~+4.5dBm | Receiver Sensitivity | < -23.0dBm |
| Power Consumption | ≤1.5W | Operation Temperature | 0 to 70°C (32 to 158°F) |
Full Compatibility List and Supported Devices of Third party Brocade SFP 10G ZR
One of the biggest advantages of HYTOPTODEVICE compatible optical transceiver is the full brand compatibility.Featuring stable plug-and-play performance for 10G Network Switches and industrial standard Compliance for Enterprise-Grade Networks. It helps enterprises cut hardware costs without sacrificing performance. Worried about compatibility? Don't be.hardware verified compability with Cisco,Huawei,Arista,Juniper. We deliver verified results on real module,real hardware. Video proof available upon request. Our long-haul network transceiver is fully tested and certified to work seamlessly with the following Huawei equipments:
Brocade ICX Series: ICX 7450, ICX 7750, ICX 7850 Series (e.g., ICX7750-48F, ICX7850-48FS)
Brocade VDX Data Center Switches: VDX 6740, VDX 6940 Series (e.g., VDX-6740-T, VDX-6940-36Q)
Brocade MLX Series Core Routers: MLXe-4, MLXe-8 line cards
Brocade Fabric OS Platforms: Select blades and extension switches supporting 10G SFP+ ports for IP extension over WAN (e.g., Brocade 7840 Extension Switch).
SAN Extension over WAN: Connecting geographically separated Brocade Storage Area Networks (SANs) for data replication, synchronous mirroring, and business continuity.
Metropolitan Area Network (MAN) Aggregation: Bridging core campus switches over a municipal or regional single-mode fiber infrastructure up to 80km.
Data Center Interconnect (DCI): Linking edge switches between separate cloud infrastructure sites or colocation hubs without leasing intermediate amplification sites.
High-Bandwidth Disaster Recovery Backbones: Serving as the long-haul physical layer for high-speed automated backup migrations across enterprise grids.
Technical Warning: When testing or deploying this SFP-10G-ZR 80km module over short distances (typically less than 30km), an optical attenuator (12dB to 15dB) must be used. Failure to attenuate the signal may cause permanent damage to the receiver due to optical overload.
Q1: Will this transceiver display an "Unsupported Transceiver" error in Brocade FOS or IronWare?
A1: No. The HYTOPTODEVICE 10G-SFPP-ZR compatible module is fully programmed with Brocade-specific EEPROM vendor codes, allowing it to bypass internal software security checks and initialize immediately.
Q2: What is the command to view optical diagnostic metrics on a Brocade ICX switch?
A2: You can view real-time laser metrics by using the command: show optic slot [slot_num] port [port_num].
Q3: Does this SFP+ ZR module require a CLI override command like other third-party compatible optics?
A3: No. Because HYTOPTODEVICE transceiver perfectly emulates a genuine Brocade 10G-SFPP-ZR, you do not need to use hidden configuration override keys to activate the port.
Q4: Will using this 10G SFP+ ZR module affect my Brocade/Broadcom technical support or warranty? A: No. Standard consumer protection laws prevent OEMs from voiding system warranties for using compatible hardware components. If a port troubleshooting case arises, support may simply ask you to swap optics to isolate the root cause.
Q5: Can I test HYTOPTODEVICE 1550nm single mode 10g sfp+ brocade transceiver with only 2m short patch fiber directly without accessories?
A5: Never direct short-loop testing on HYTOPTODEVICE 80km long-haul optical modules unless an inline fixed optical attenuator is equipped. Equipped with high-gain APD receiver customized for long-distance SMF transmission, our 1550nm ZR SFP+ gets overloaded instantly by excessive optical power on 2-meter short fiber jumper, which causes temporary receiver blinding or irreversible permanent hardware damage to the transceiver component.
Q6: What minimum fiber distance or optical attenuation is needed to hot-plug HYTOPTODEVICE 10G ZR SFP+ without external attenuator?
A6: Direct plug-in requires minimum 15dB total optical loss, corresponding to approx 40~50km standard single-mode fiber. All test links shorter than this standard span must be fitted with LC-type 10dB or 15dB fixed inline optical attenuator to protect HYTOPTODEVICE long-reach SFP+ transceivers from over-power burnout, a standard lab test specification for data center network engineers.
Q7: What’s the full optical power budget & TX/RX specification of HYTOPTODEVICE brocade fos compatible 10g-sfpp-zr?
A7: HYTOPTODEVICE Brocade replacement 10G ZR SFP+ owns a minimum 23dB link power budget. Typical transmit optical output power ranges from 0 ~ +4 dBm, while APD receiving sensitivity reaches as low as -23 dBm, fully matching original Huawei OSX080000 datasheet parameters for long haul fiber transmission projects.
Q8: Is HYTOPTODEVICE 10GBASE-ZR SFP+ 80km brocade transceiver interoperable with Multi-Mode Fiber MMF cable?
A8: Not applicable. HYTOPTODEVICE 10GBASE-ZR SFP+ 80km brocade module is engineered exclusively for standard 9/125µm Single-Mode Fiber(SMF), incompatible with OM1/OM2/OM3 multi-mode fiber infrastructure for enterprise cabling deployment.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP+ modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
