CWDM-SFP10G-1490-40 Compatible Cisco CWDM 10G SFP+ Transceiver 40km | 1490nm Long-Haul CWDM Optical Module， Bulk Wholesale Procurement Available
Product Overview

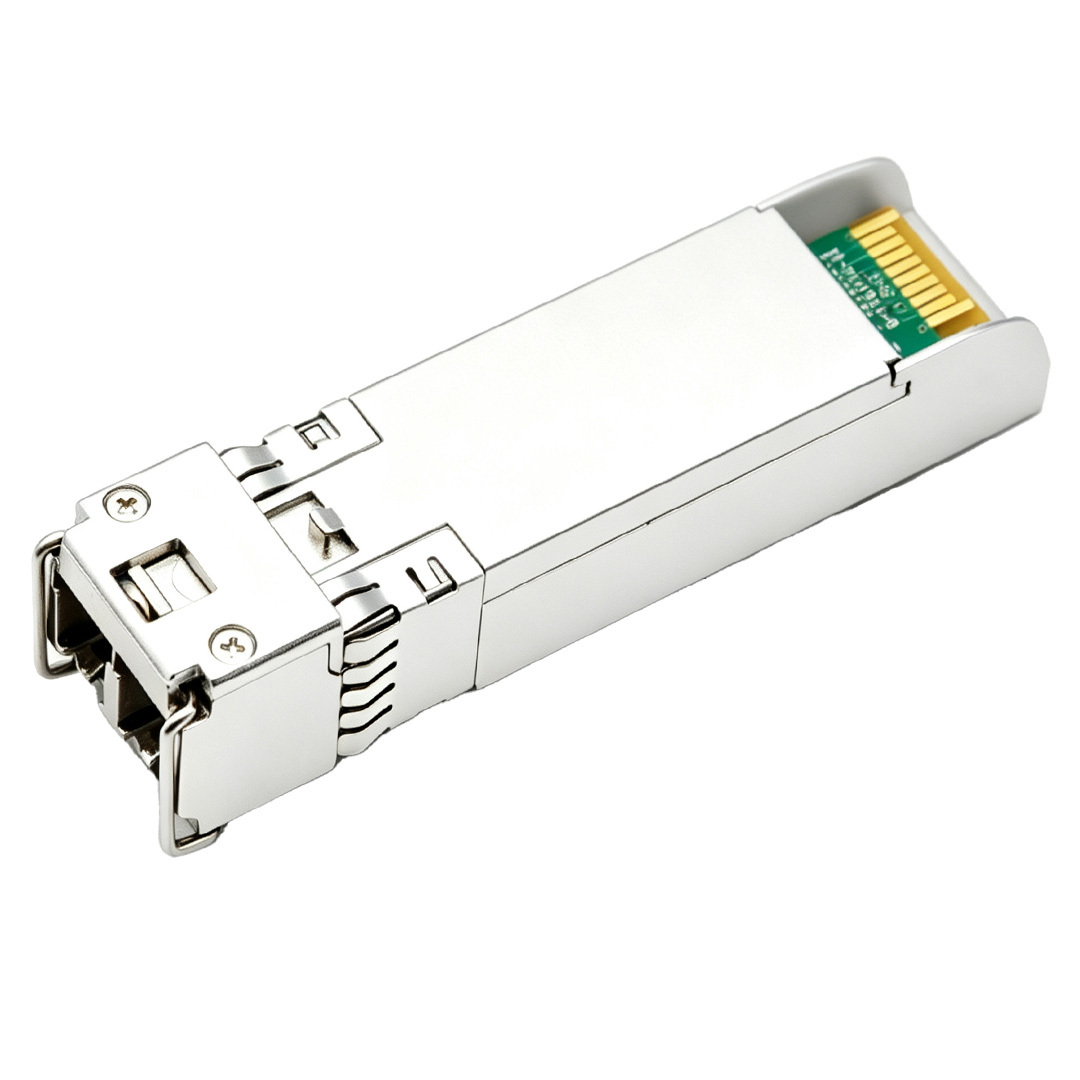

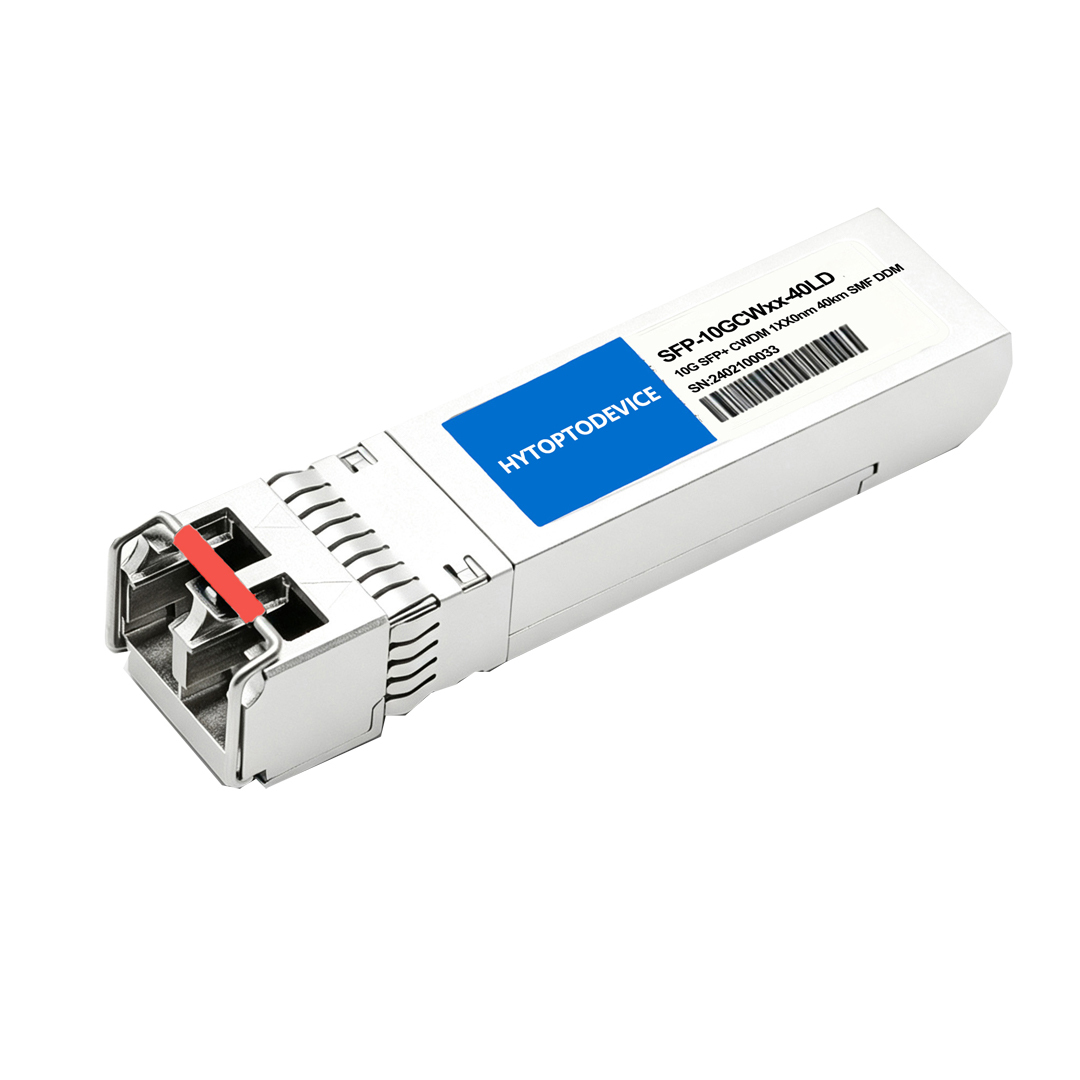

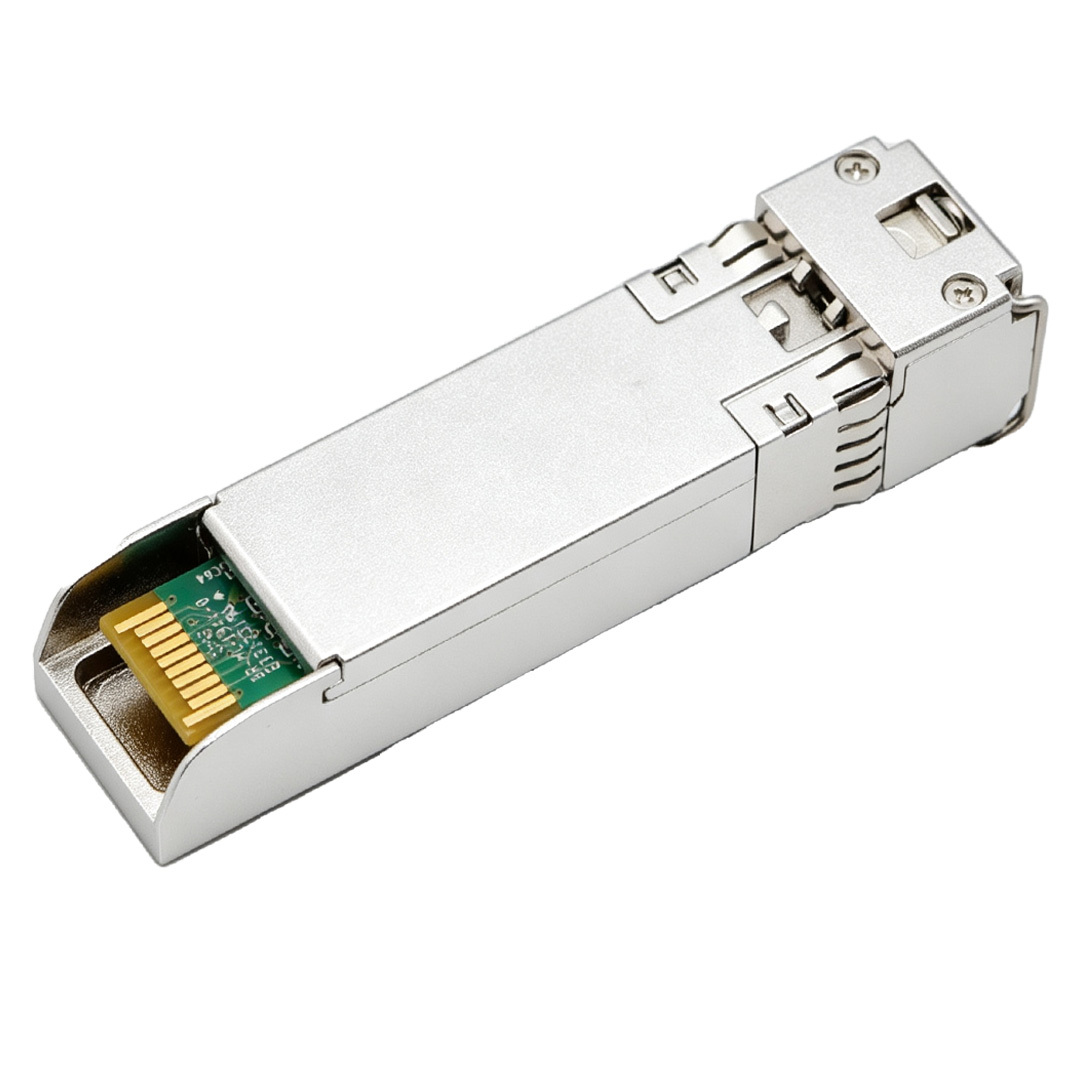

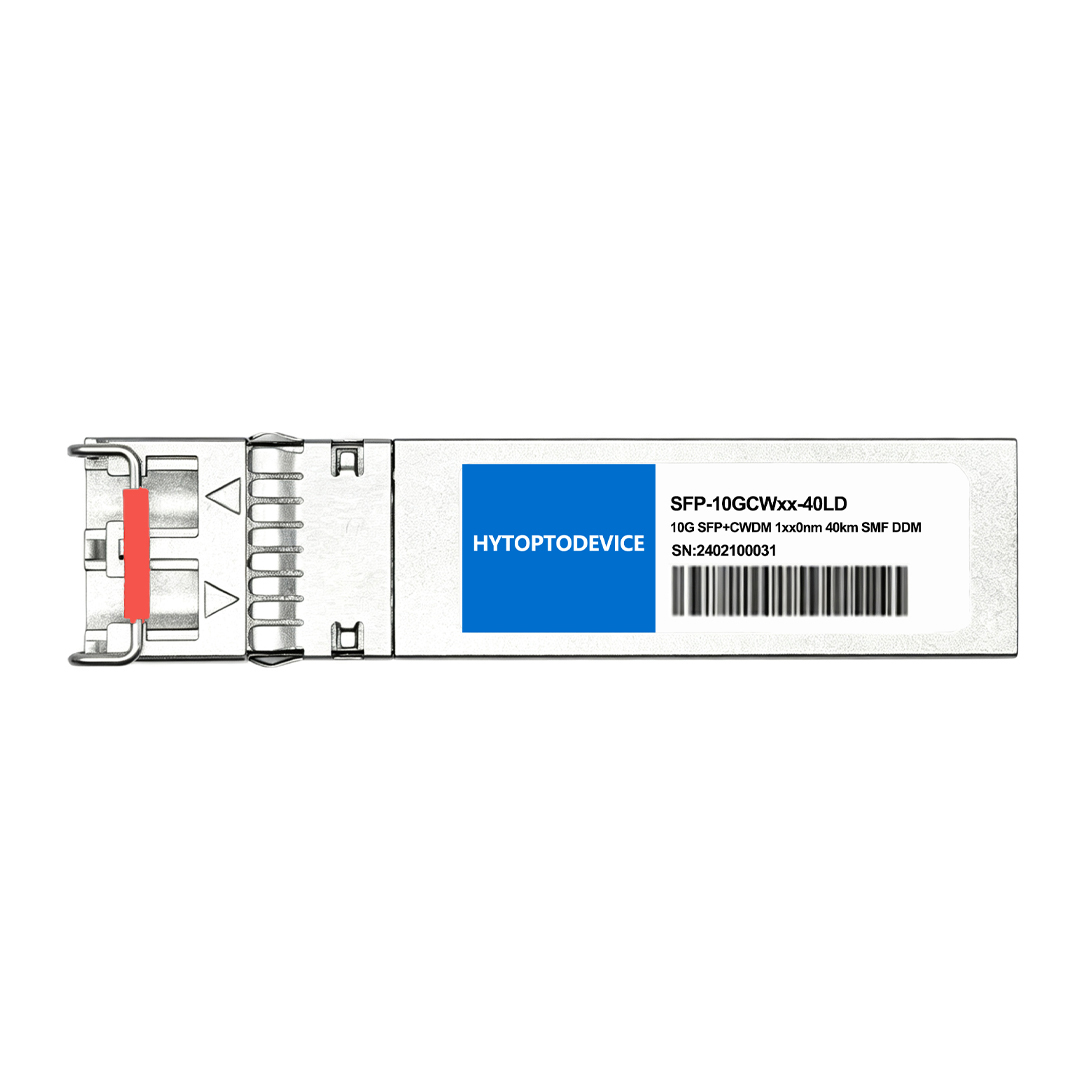

HYTOPTODEVICE 1490nm 40km Cisco CWDM 10G SFP+ Transceiver is a fully interchangeable drop-in replacement for original Cisco CWDM-SFP10G-1490-40. It equips an LC duplex connector and supports steady 40km transmission across G.652 and G.655 single-mode fiber. Operating at 1490nm, one mid-low wavelength within the ITU-T 1470nm–1610nm CWDM spectrum grid, this Cisco CWDM 10G SFP+ Transceiver is purpose-built for installation on CWDM networking hardware, widely deployed in metropolitan access multiplexing and campus backbone fiber systems. It delivers consistent 10.3125Gbps full-duplex wire-speed bandwidth and built-in DDM digital monitoring to track real-time temperature, optical power and laser operating status. Designed with mature high-density optical chip architecture, it balances reliable transmission performance and ultra-low power draw, perfectly matching medium-density CWDM multi-channel stacking and medium-distance fiber networking projects.
Key Technical Specifications
This Cisco CWDM 10G SFP+ Transceiver complies with SFF-8431, SFF-8472, IEEE 802.3ae and ITU-T G.694.2 unified industry protocols. Every finished unit undergoes full-range photoelectric performance testing covering laser output, receiving sensitivity, optical power budget, wavelength accuracy and thermal stability. Comprehensive pre-delivery screening eliminates inconsistent performance, delivering consistent, qualified optical hardware to meet long-term stable operation demands of enterprise and carrier customers.
| Cisco Compatible |
CWDM-SFP10G-1490-40 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
11.0957Gbps |
| Wavelength |
1490nm |
Max Distance |
40km |
| Connector |
Simplex LC |
Transmitter Type |
CWDM EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
-1~+4.0dBm |
Receiver Sensitivity |
< -16dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Usage Guidelines & Laser Safety
This medium-reach optical transceiver is engineered for 40km mid-low band CWDM access network transmission. Never view powered optical ports directly to avoid irreversible laser eye injury. Complete ESD static protection must be worn during handling to shield internal precision laser and receiver chips. Direct short-fiber jumper connection without attenuation will trigger APD receiver saturation and permanent hardware burnout. All lab bench testing and short-distance debugging must deploy 10dB–15dB fixed optical attenuators at the Rx receiving end. Keep LC port dust caps installed during idle periods to avoid dust contamination that raises extra link loss for this mid-low band Cisco CWDM 10G SFP+ Transceiver.
Full Compatibility List & Supported Network Hardware
1.Native Cisco Networks Compatibility
This 1490nm Cisco CWDM 10G SFP+ Transceiver delivers native plug-and-play recognition and full DDM function on mainstream Cisco network devices, with no unrecognized alarms or port shutdown:
• Cisco Catalyst 9200 / 9300 / 9400 Enterprise Switches
• Cisco Catalyst 3650 / 3850 Access & Aggregation Switches
• Cisco ISR 4000 Multi-Service Routers
• Cisco ASR 1000 Aggregation Routers
• Cisco OTN Optical Transmission Boards
2.Multi-Brand Cross Compatibility
With 15+ years of overseas technical service experience, our lab carries test platforms covering 150+ global network hardware models. All transceivers complete full compatibility testing before shipment to guarantee stable mixed-brand networking performance.
- Open-Brand Devices: Zero-debug plug-and-play on MikroTik, Ubiquiti, Fortinet, Zyxel and other open-standard switches, routers and firewalls.
- Blocked-Brand Devices: Custom parameter matching available for locked hardware including Huawei, H3C, Juniper, Extreme, Dell and Brocade to resolve recognition failures.
3.Free Custom EEPROM Re-Flash Service
We offer professional EEPROM re-flash customization for 1490nm 40km Cisco CWDM 10G SFP+ Transceiver. Our technical team rewrites module vendor IDs and protocol parameters to match specific host hardware, enabling full vendor authentication and complete DDM display for multi-brand mixed deployment.
Primary Application Scenarios
The 1490nm 40km Cisco CWDM 10G SFP+ Transceiver is ITU-T standardized mid-low band CWDM optical hardware built for medium-density multi-wavelength multiplexing medium-distance fiber links, core simplified scenarios below:
• Metro Access CWDM Network Construction: Supplement 1490nm channels for carrier metropolitan access multiplexing systems to expand fiber bandwidth without new cabling.
• Campus Backbone Interconnection: Build stable 40km fiber links for university and industrial park internal backbone data transmission.
• Medium-Range Enterprise Private Lines: Bear integrated 10G data and video services for nearby cross-branch enterprise dedicated networks.
• Idle Dark Fiber Reuse: Activate spare single-mode fiber resources to quickly deploy low-cost 10G medium-distance transmission links.
• Short-Medium Wireless Backhaul: Provide steady 10G bandwidth bearing for local communication base station CPRI backhaul links.
Connectivity Solutions(Applications)
1.10G CWDM Point-to-Point Single-Fiber Link
Matched pairs of 1490nm Cisco CWDM 10G SFP+ Transceiver build independent single-fiber point-to-point links. This lightweight topology suits enterprise private lines and carrier short leased lines, delivering steady 10G full-duplex transmission over 40km single-mode fiber without additional fiber laying.
2.10G Structured Cabling Connection
Paired with standard LC jumpers, fiber frames and CWDM MUX/DEMUX, this transceiver supports standardized structured cabling design. The overall link loss is precisely controlled to form scalable modular CWDM network layout, reserving sufficient space for future wavelength and bandwidth expansion.
Features
1.Premium 10G Performance & Low Power
Adopts mature high-density optical technology, power consumption controlled within ≤1W to cut operation costs while maintaining reliable top-tier quality for 10G transmission.
2.High-Capacity CWDM Multiplexing
Cooperate with CWDM MUX/DEMUX hardware to boost fiber bandwidth and network efficiency. Flexible wavelength layout simplifies overall CWDM network architecture.
3.Cost-Effective Medium-Distance Transmission
Wide CWDM wavelength spacing lowers overall deployment cost, ideal for medium-long MAN and remote access fiber link construction.
4.Multi-Brand Seamless Network Compatibility
Support reconfiguration to match various brand network hardware, bringing flexible stock management and cost control advantages for system integrators.
FAQ
Q1: Is HYTOPTODEVICE CWDM-SFP10G-1490-40 fully plug-and-play compatible with original Cisco switches?
A1: Yes, our HYTOPTODEVICE 1490nm 40km Cisco CWDM 10G SFP+ Transceiver achieves native plug-and-play compatibility with all mainstream Cisco Catalyst, ISR and ASR series hardware. We finish full EEPROM matching testing before delivery to eliminate unrecognized module alarms and activate complete DDM monitoring function.
Q2: What fiber types and maximum transmission reach does HYTOPTODEVICE 1490nm Cisco CWDM 10G SFP+ Transceiver support?
A2: This mid-low band Cisco CWDM 10G SFP+ Transceiver delivers stable 40km transmission over G.652 and G.655 single-mode fiber via LC duplex connector, following ITU-T 1490nm standard CWDM wavelength specification for metro and campus CWDM multiplexing deployment.
Q3: What unique strengths does HYTOPTODEVICE 1490nm CWDM transceiver own compared with generic aftermarket CWDM modules?
A3: Our 1490nm Cisco CWDM 10G SFP+ Transceiver uses mature high-density optical chips with power consumption capped at ≤1W. Every unit passes full photoelectric inspection, supports reconfigurable EEPROM to fit multi-brand switches and cut global stock costs for system integrators.
Q4: Can HYTOPTODEVICE provide custom EEPROM coding for locked multi-brand network hardware?
A4: Yes, we launch professional custom EEPROM re-flash service for the 1490nm 40km Cisco CWDM 10G SFP+ Transceiver. Our technical team rewrites module vendor IDs and protocol parameters to adapt to Cisco, Juniper, Huawei and other locked-brand switches without extra hardware modification.
Q5: Which networking scenarios is HYTOPTODEVICE CWDM-SFP10G-1490-40 designed to serve?
A5: This mid-low band Cisco CWDM 10G SFP+ Transceiver targets medium-density multi-wavelength multiplexing, widely deployed in metropolitan access CWDM expansion, campus backbone interconnection, enterprise private lines and short-medium wireless CPRI backhaul links.
Q6: Does HYTOPTODEVICE 1490nm CWDM SFP+ Transceiver support hot-plug operation on live powered switch ports?
A6: Yes, our Cisco CWDM 10G SFP+ Transceiver complies with SFP+ MSA hot-swap industrial standards. Safe hot-plug replacement is available on live switch ports without interrupting the whole switch or other port services, simplifying on-site maintenance work.
Q7: What full wavelength range does HYTOPTODEVICE’s 40km 10G CWDM SFP+ Transceiver series cover?
A7: HYTOPTODEVICE’s full 40km Cisco CWDM 10G SFP+ Transceiver product line includes 8 complete ITU-T standard channels from 1470nm to 1610nm with fixed 20nm spacing, and this 1490nm mid-low wavelength fills core medium channels for mid-density CWDM system construction.
Q8: What loss margin should be reserved when pairing HYTOPTODEVICE 1490nm CWDM transceivers with CWDM MUX/DEMUX?
A8: Standard 8-channel CWDM MUX/DEMUX creates 1.5–3.0dB insertion loss per side. Our 1490nm Cisco CWDM 10G SFP+ Transceiver carries a 13dB power budget, and we recommend reserving an extra 3–5dB safety margin to offset long-term fiber aging attenuation.
Q9: What laser solution is equipped on HYTOPTODEVICE 1490nm 40km Cisco CWDM 10G SFP+ Transceiver?
A9: Our Cisco CWDM 10G SFP+ Transceiver adopts low-chirp EML laser instead of ordinary DFB laser. It effectively suppresses spectral chirp and chromatic dispersion interference, enabling error-free 40km transmission on standard G.652/G.655 single-mode fiber without dispersion compensators.
Q10: What bulk supply & testing advantages does HYTOPTODEVICE offer for Cisco CWDM 10G SFP+ Transceiver bulk orders?
A10: HYTOPTODEVICE holds 15+ years of overseas optical module technical service experience, with 150+ global network device test platforms. All transceivers complete full compatibility pre-testing, and we support bulk customization, mixed wavelength batch ordering and long-term stable supply for global distributors and system integrators.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
Rigorous Industrial Product Testing
100% 3rd Party Compatible
Partial Test Demonstration
